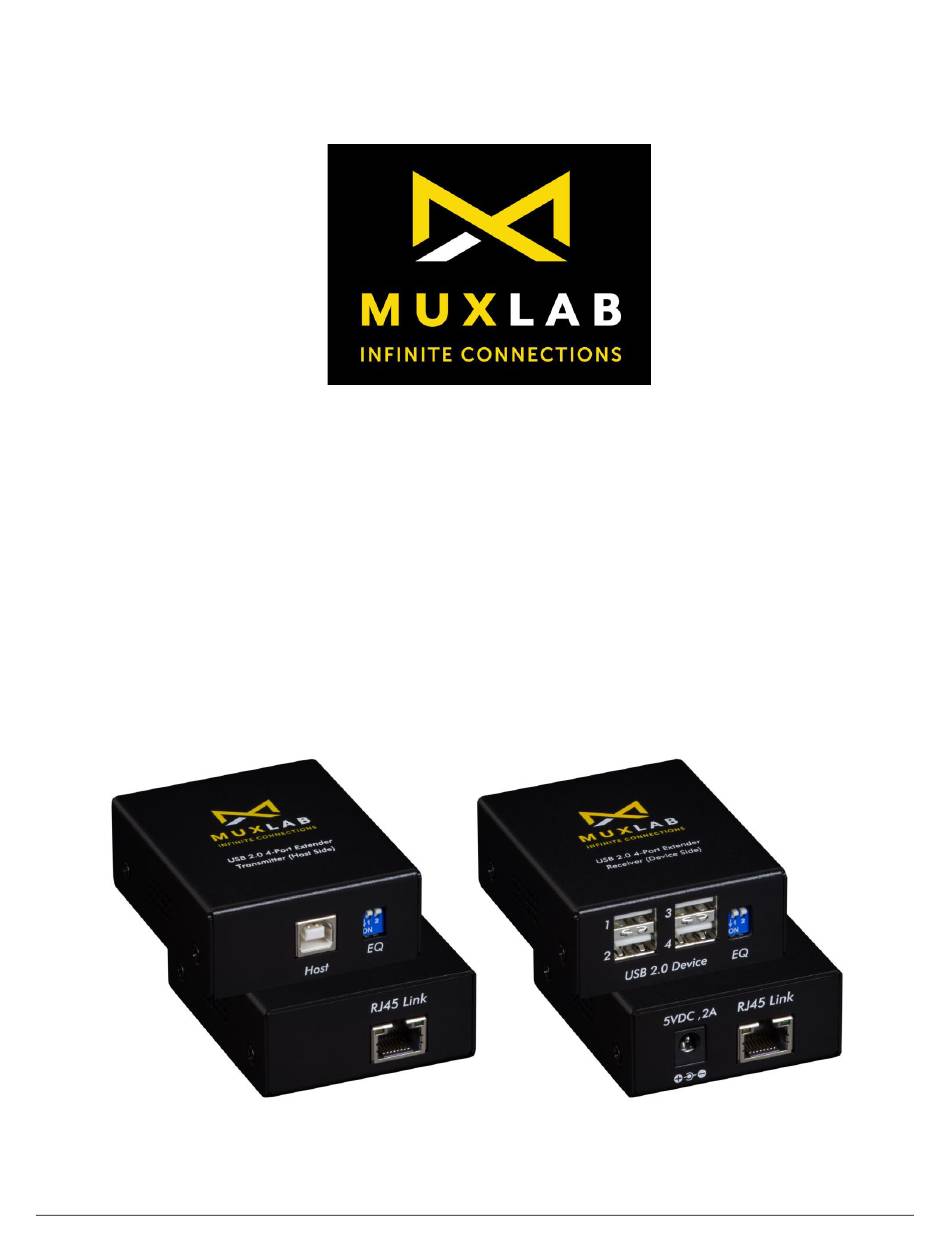

- Page 1 USB 2.0 4-Port Extender Kit, 50M Operation Manual 100518 © Muxlab Inc. 2020 94-000951-A/SE-000951-A...
- Page 2 ⚫ Unplug the power when left unused for a long period of time. ⚫ Information on disposal of devices: do not burn or mix with general household waste, please treat them as normal electrical waste. NOTICE: Please read this manual carefully before using this product. © Muxlab Inc. 2020...
- Page 3 2. Features ................................3 3. Package Contents ..............................3 4. Specifications ..............................3 5. Panels Description ............................... 4 5.1 Transmitter unit ............................4 5.2 Receiver unit .............................. 5 6. Connection ................................6 7. Regulatory Compliance ............................7 © Muxlab Inc. 2020...
- Page 4 ⚫ One (1) 5VDC Power adapter. ⚫ One (1) USB 2.0 Type A/M to Type B/M Cable 0.6m. Notes：Confirm that the product and accessories are all included. If not, please contact the supplier from which you purchased the unit. 4. Specifications © Muxlab Inc. 2020...
- Page 5 Signal indicator DIP Switch Position Description ON [] OFF [] EQ#1 (MAX or Strongest) OFF [] ON [] EQ#2 PIN#1 PIN#2 OFF [] OFF [] EQ#3 (MIN or Weakest) ON [] ON [] Reserved Table 1 © Muxlab Inc. 2020...
- Page 6 5VDC, 2A Power jack. RJ45 Link Plug in a CAT-5/5e/ 6 cable (50m max) that must be connected to the RJ-45 connector of the Transmitter unit. Power indicator Signal indicator © Muxlab Inc. 2020...
- Page 7 4. Connect the USB cables that are connected to the USB ports of the devices (keyboards, mice, printers, cameras, etc.) to the "USB 2.0 Device" ports on the Receiver. 5. Note that no configuration or driver installation is required. © Muxlab Inc. 2020...
- Page 8 All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. 2321 Cohen Road, Saint-Laurent, Quebec, Canada. H4R 2N7 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © Muxlab Inc. 2020...
