RD2963K2
18V BRUSHLESS DRILL KIT
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD2963K2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockwell RD2963K2

Summary of Contents for Rockwell RD2963K2

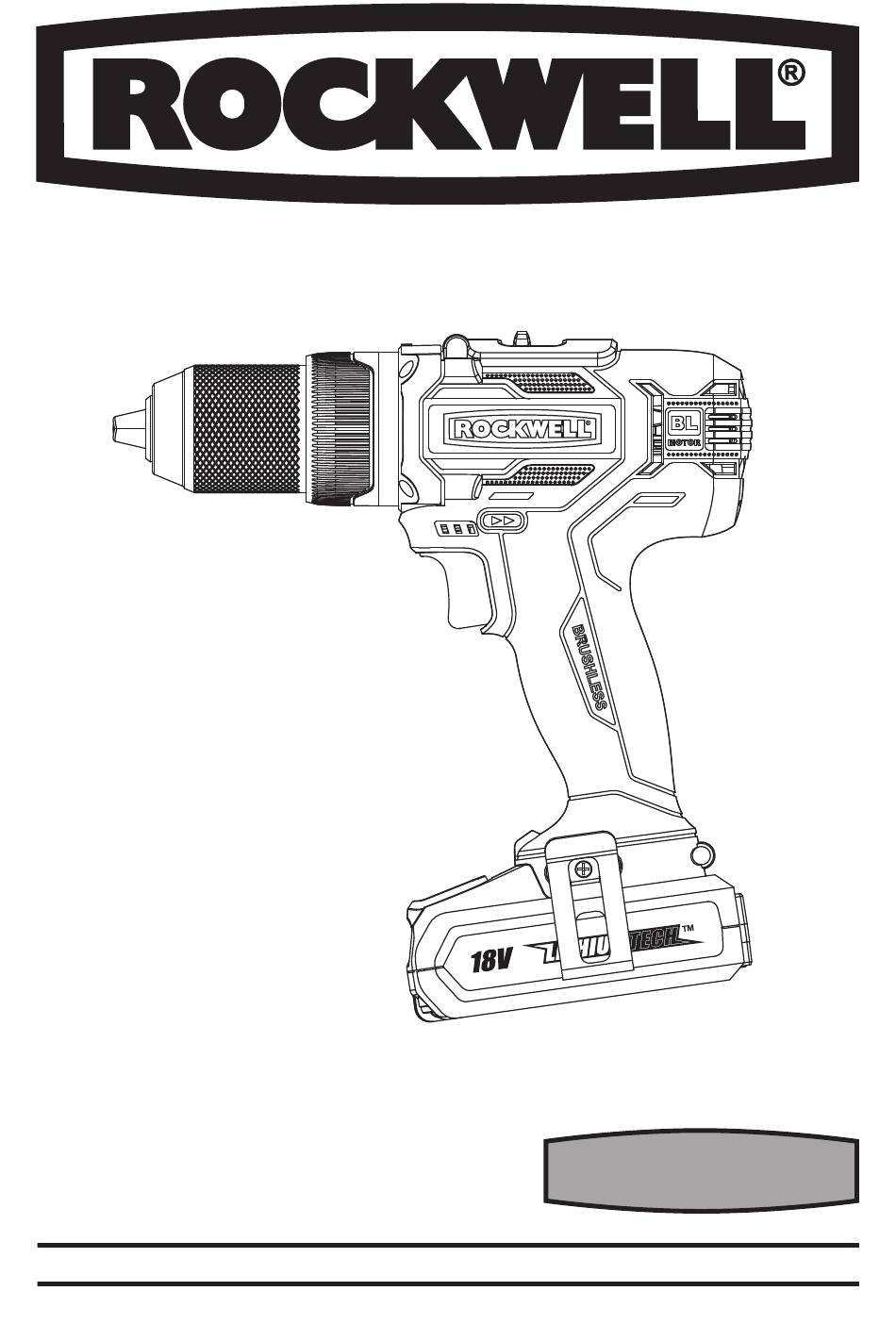

  • Page 1 RD2963K2 18V BRUSHLESS DRILL KIT...
  • Page 2 RD2963K2...
  • Page 3 RD2963K2...

  • Page 4: Component List

    18V BRUSHLESS DRILL KIT COMPONENT LIST Keyless chuck Torque adjustment ring Two-speed gear control Forward/Reverse rotation control Soft grip handle Belt Clip Battery pack Battery pack release button Sight light On/off switch Battery Capacity Indicator Not all the accessories illustrated or described are included in standard delivery. ACCESSORIES PRODUCT SAFETY 1.5 Ah Li-ion battery pack (RW9900)

  • Page 5: Electrical Safety

    18V BRUSHLESS DRILL KIT c) Keep children and bystanders away while turning the power tool on. A wrench or a key left operating a power tool. Distractions can cause attached to a rotating part of the power tool may you to lose control. result in personal injury.
  • Page 6 18V BRUSHLESS DRILL KIT GENERAL SAFETY WARNINGS FOR 5) BATTERY TOOL USE AND CARE a) Recharge only with the charger specified by the YOUR BATTERY CHARGER manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when This appliance is not intended for use by persons used with another battery pack.
  • Page 7 18V BRUSHLESS DRILL KIT battery pack several times to obtain maximum 15. Do not recharge non-rechargeable batteries, as performance. they can overheat and break. l) Battery pack gives its best performance when it 16. Longer life and better performance can be is operated at normal room temperature (20°C ±...

  • Page 8: Technical Data

    18V BRUSHLESS DRILL KIT SYMBOLS TECHNICAL DATA To reduce the risk of injury, user Voltage must read instruction manual No load speed 0-450/0-1700/min Impact rate 0-7200/0-27200bpm Warning Number of clutch positions 21+1+1 Max torque 45 N.m Wear ear protection Chuck capacity 13mm Charger protection class Wear eye protection...

  • Page 9: Charging Indicator

    18V BRUSHLESS DRILL KIT 2. SWITCH LOCK used for long periods of time, charge the battery every 3-6 months. The switch trigger can be locked in the OFF position. This helps to reduce the possibility of accidental CHARGING PROCEDURE (SEE FIG. A) starting when not in use.

  • Page 10: Problem Solution

    18V BRUSHLESS DRILL KIT 6. TORQUE ADJUSTMENT (SEE FIG. G) TUNGSTEN CARBIDE DRILL BITS SHOULD ALWAYS BE USED FOR CONCRETE AND MASONRY. WHEN (Screw driving force of your drill driver) DRILLING IN METAL, ONLY USE HSS DRILL BITS IN GOOD The torque is adjusted by rotating the torque CONDITION.

  • Page 11: Maintenance

    18V BRUSHLESS DRILL KIT 2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY? Verify the torque position of the torque adjusting ring, you can find the torque-adjusting ring between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 21 is the highest torque (screw driving force).
  • Page 12 POSITEC AUSTRALIA PTY LTD ABN 14 101 682 357 MADE IN PRC...
