Table of Contents

RD3110K.1
130W MINI DRILL
EN

Advertisement

Table of Contents
loading

Related Manuals for Rockwell RD3110K.1

Summary of Contents for Rockwell RD3110K.1

  • Page 1 RD3110K.1 130W MINI DRILL...
  • Page 2 RD3110K.1...
  • Page 3 RD3110K.1 6mm(1/4' )
  • Page 4 RD3110K.1...

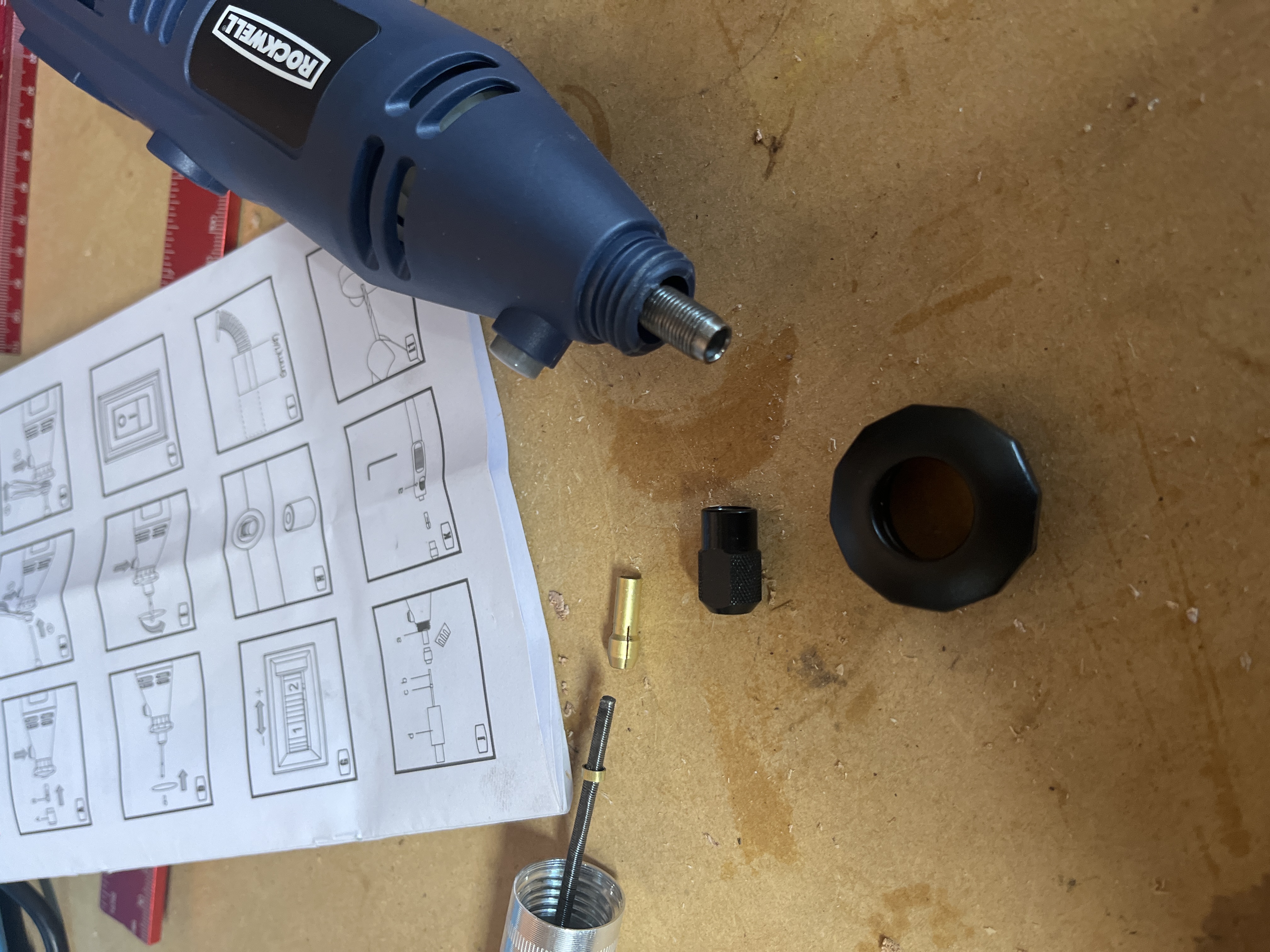

  • Page 5: Component List

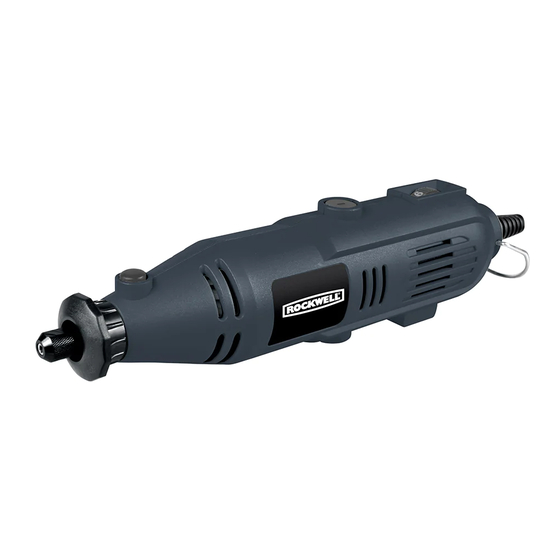

    130W MINI DRILL COMPONENT LIST COLLET NUT SPINDLE LOCK BUTTON CARBON BRUSH HOLDER (ON BOTH SIDES) SPEED SELECTOR POWER CORD ON/OFF SWITCH 233 PSC SET﹡ FLEXIBLE SHAFT﹡ ﹡Not all the accessories illustrated or described are included in standard delivery.

  • Page 6: General Power Tool Safety Warnings

    130W MINI DRILL ACCESSORIES mains-operated (corded) power tool or battery- operated (cordless) power tool. 233 pcs accessories Collet(2x1.6mm, 2x2.3mm, 2x3.2mm) 1. WORK AREA SAFETY Sanding drum(12.7x12.7mm) a) Keep work area clean and well lit. Cluttered or Sanding drum(6.3x12.7mm) dark areas invite accidents. Hss cutter(ø3.2 mm) b) Do not operate power tools in explosive Hss twist drills(1.6,2.3,3.2mm)

  • Page 7: Safety Instructions For All Operations

    130W MINI DRILL b) Use personal protective equipment. Always wear e) Maintain power tools. Check for misalignment or eye protection. Protective equipment such as dust binding of moving parts, breakage of parts and any other condition that may affect the power mask, non-skid safety shoes, hard hat, or hearing tools operation.
  • Page 8 130W MINI DRILL accessory must be within the capacity rating “live” wire may make exposed metal parts of the of your power tool. Incorrectly sized accessories power tool “live” and could give the operator an cannot be adequately controlled. electric shock . e) The arbour size of wheels, sanding drums or any k) Always hold the tool firmly in your hand(s) other accessory must properly fit the spindle or...
  • Page 9 130W MINI DRILL b) For threaded abrasive cones and plugs use the direction opposite of the accessory’s rotation. only undamaged wheel mandrels with an For example, if an abrasive wheel is snagged or unrelieved shoulder flange that are of correct pinched by the workpiece, the edge of the wheel size and length.
  • Page 10 130W MINI DRILL SYMBOLS least one minute before using them. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged To reduce the risk of injury, user must read during the run-in time.

  • Page 11: Technical Data

    130W MINI DRILL TECHNICAL DATA Loosen the small screw on the mandrel with spanner. Insert the screw through the wheel and then screw Rated voltage 220-240V~50Hz into the mandrel. Do not over-tighten otherwise the Rated power 130W wheel may crack. Collet size 1.6~3.2mm 4.

  • Page 12: Maintenance And Troubleshooting

    130W MINI DRILL REPLACING THE CARBON BRUSHES (SEE FIG H, I) adjustable from 10000 to 33000/min. The tool has a variable speed control for precise The carbon brushes must be checked on a regular speed adjustment. Set it to the required speed for basis.

  • Page 13: Using Accessories

    130W MINI DRILL USING ACCESSORIES The chart below lists the description, use speed and scope for some of the small articles supplied together with the tool by category. To achieve best performance of the tool, it is strongly recommended that you read it prior to operation, failure to adhere to this may cause accessories to fail.
