- Page 1 Feiyu SCORP Focus Motor Quick Start Guide Model:FM1 V 1.0 Visit online manual...
-
Page 2: Installation

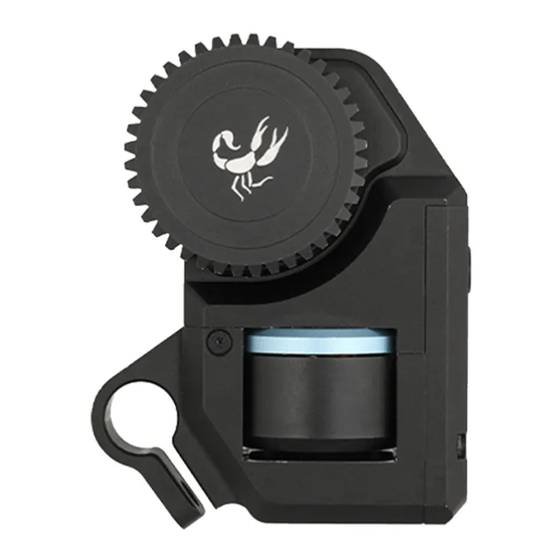

1. Overview [1] Indicator [2] M button [3] Power port [4] Roller [5] Gear 2. Installation ① Attach the focus gear strip to the ① lens focus ring or the zoom ring. ② Attach the fixed bracket to the quick release plate of gimbal via ③... - Page 3 ⑥ Connection: Connect the focus motor power port to an extension port which on the fixed plate via cable. ※ After the installation is complete, please balance the ⑥ gimbal before turn it on. 3. Usage for focus motor Indicator Indicator 1 Indicator Status...
- Page 4 4. Use gimbal to control focus motor 4.1 Set control option 4.1.1 Set on Feiyu SCORP Pro gimbal Set via screen: Swipe up on touch screen, set multifunction knob control option as focus motor in "Main knob setting" or "Handle knob setting", then the focus motor can be controlled by corresponding knob Main knob control the focus motor which connect with extension port 1, handle knob control the focus motor which connect with extension port 2.
-
Page 5: Specification
List ① Focus motor ② Focus gear strip ① ② ③ ③ Fixed bracket ④ Aluminium rod ⑤ Cable ⑥ Thumb Screws ⑦ Hexagonal screw ⑧ Hex wrench ④ ⑤ ⑥ ⑦ ⑧ Specification Product name: Feiyu SCORP Focus Motor Product model: FM1 Operating Temperature: - 20℃... - Page 6 Facebook Youtube Website Twitter Instagram WeChat Weibo Tik Tok/抖音 This document is subject to change without notice. If you have any questions about this document, please contact us by the following ways. Manufactured by: Guilin Feiyu Technology Incorporated Company Website: www.feiyu-tech.com Tel: +86 773-2320865 E-mail: support@feiyu-tech.com...
