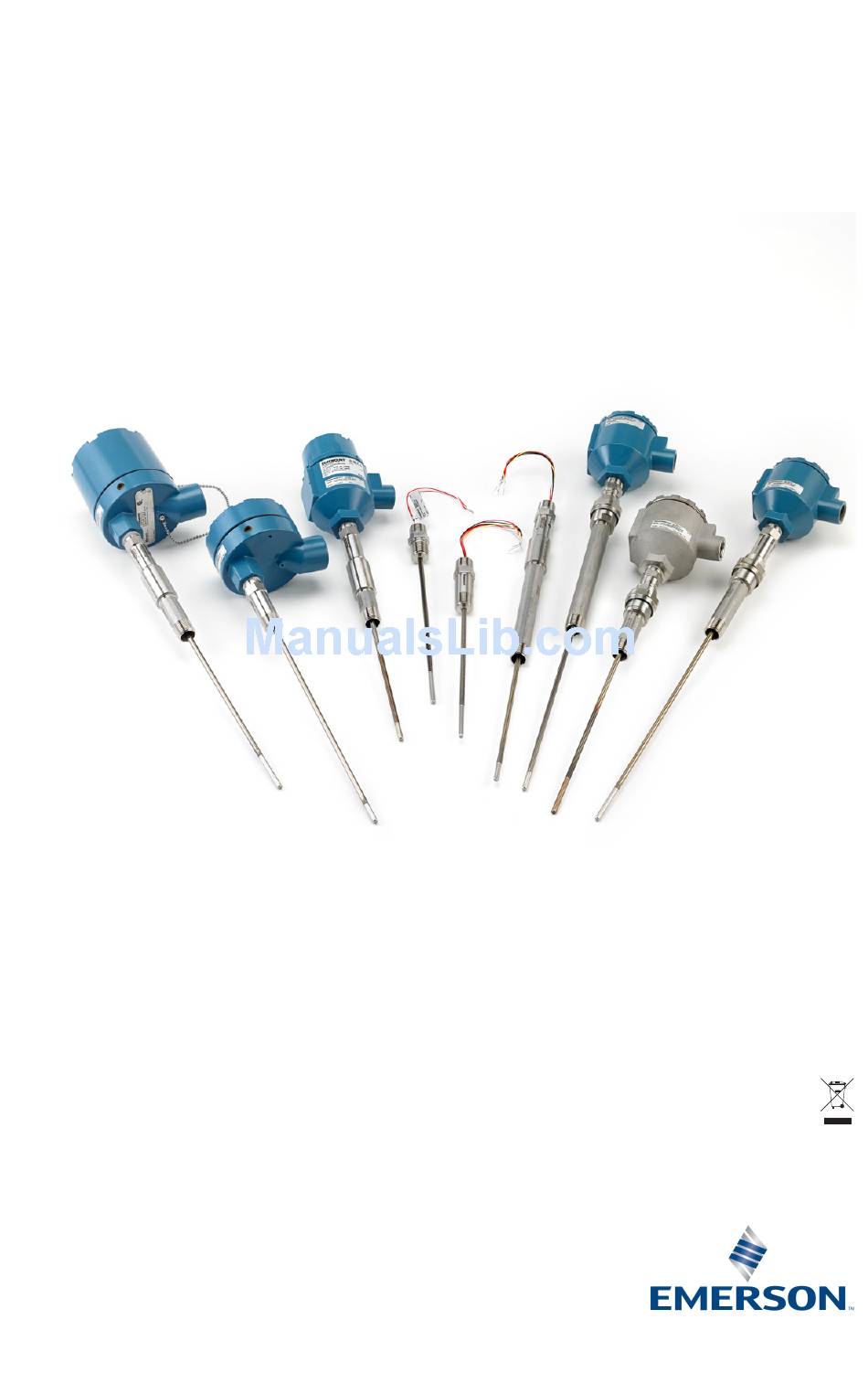

  • Page 1 Quick Start Guide 00825-0400-2654, Rev AF August 2017 ™ Rosemount 214C Sensor...
  • Page 2 August 2017 Quick Start Guide NOTICE This guide provides basic guidelines for Rosemount 214C Sensor models. If the sensor was ordered assembled to a temperature thermowell or transmitter, see the appropriate product literature for information on configuration and hazardous locations certifications.
  • Page 3 Quick Start Guide August 2017 1.0 Wiring diagram for RTDs Figure 1. RTD Lead Wire Configuration per IEC 60751 Single element, 3-wire Single element, 4-wire Dual element, 3-wire Black Black White White Yellow White White Note To configure a single element, 4-wire RTD as a 3-wire system, connect only one white lead. Insulate or terminate the unused white lead in a manner that prevents shorting to the ground.
  • Page 4 August 2017 Quick Start Guide 2.0 Wiring diagram for thermocouples Figure 2. Thermocouple Lead Wire Configuration Single thermocouple, 2-wire Dual thermocouple, 4-wire ( – ) ( – ) ( + ) ( + ) ( – ) ( + ) IEC 60584 thermocouple colors ASTM E- 230 thermocouple colors Type...
  • Page 5 Emerson.com/Rosemount. 3.2 Ordinary Location Certification The Rosemount 214C has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).
  • Page 6 Special Conditions for Safe Use (X): 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C.
  • Page 7 Special Conditions for Safe Use (X): 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C.
  • Page 8 Special Conditions for Safe Use (X): 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C.
  • Page 9 Special Conditions for Safe Use (X): 1. Refer to certificate for details regarding process and ambient temperature limits. 2. When the Rosemount 214C sensor is provided with an enclosure with a display cover, the maximum ambient shall be 95 °C.
  • Page 10 August 2017 Quick Start Guide 4.0 Installation drawings Figure 3. Rosemount 214C Hazardous Location (00214-1030)
  • Page 11 Quick Start Guide August 2017 Figure 4. Rosemount 214C Declaration of Conformity EU Declaration of Conformity No: RMD 1109 Rev. C Rosemount, Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Rosemount™ 214C Temperature Sensor manufactured by, Rosemount, Inc.
  • Page 12 August 2017 Quick Start Guide EU Declaration of Conformity No: RMD 1109 Rev. C ATEX Directive (2014/34/EU) DEMKO 16ATEX1677X - Flameproof Certificate Equipment Group II Category 2 G (Ex db IIC T6…T1 Gb) Harmonized Standards: EN 60079-0:2012+A11:2013, EN 60079-1:2014 DEMKO 16ATEX1677X - Dust Certificate Equipment Group II Category 2 D (Ex tb IIIC T130°C Db) Harmonized Standards: EN 60079-0:2012+A11:2013, EN 60079-31:2009...
  • Page 13 Quick Start Guide August 2017 China RoHS Rosemount 214 List of Rosemount 214 Parts with China RoHS Concentration above MCVs Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE) Electronics Assembly...
  • Page 14 Middle East and Africa Regional Office and Conditions of Sale page. Emerson Automation Solutions The Emerson logo is a trademark and service mark of Emerson Emerson FZE P.O. Box 17033 Electric Co. Jebel Ali Free Zone - South 2 Rosemount and Rosemount logotype are trademarks of Emerson.
