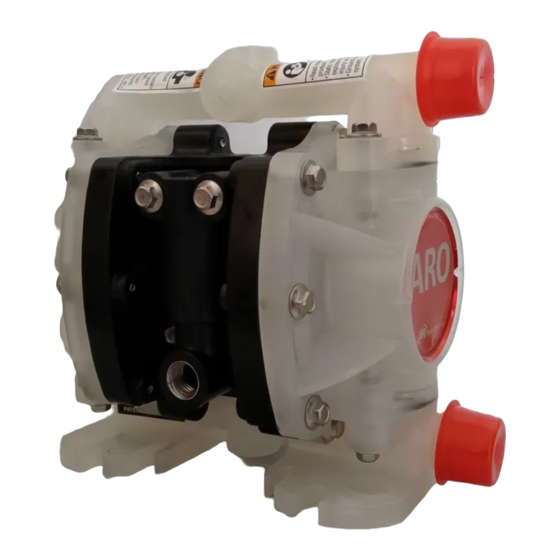

Ingersoll-Rand ARO 670144-A Operator's Manual

1/4" diaphragm pump 1:1 ratio non-metallic
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

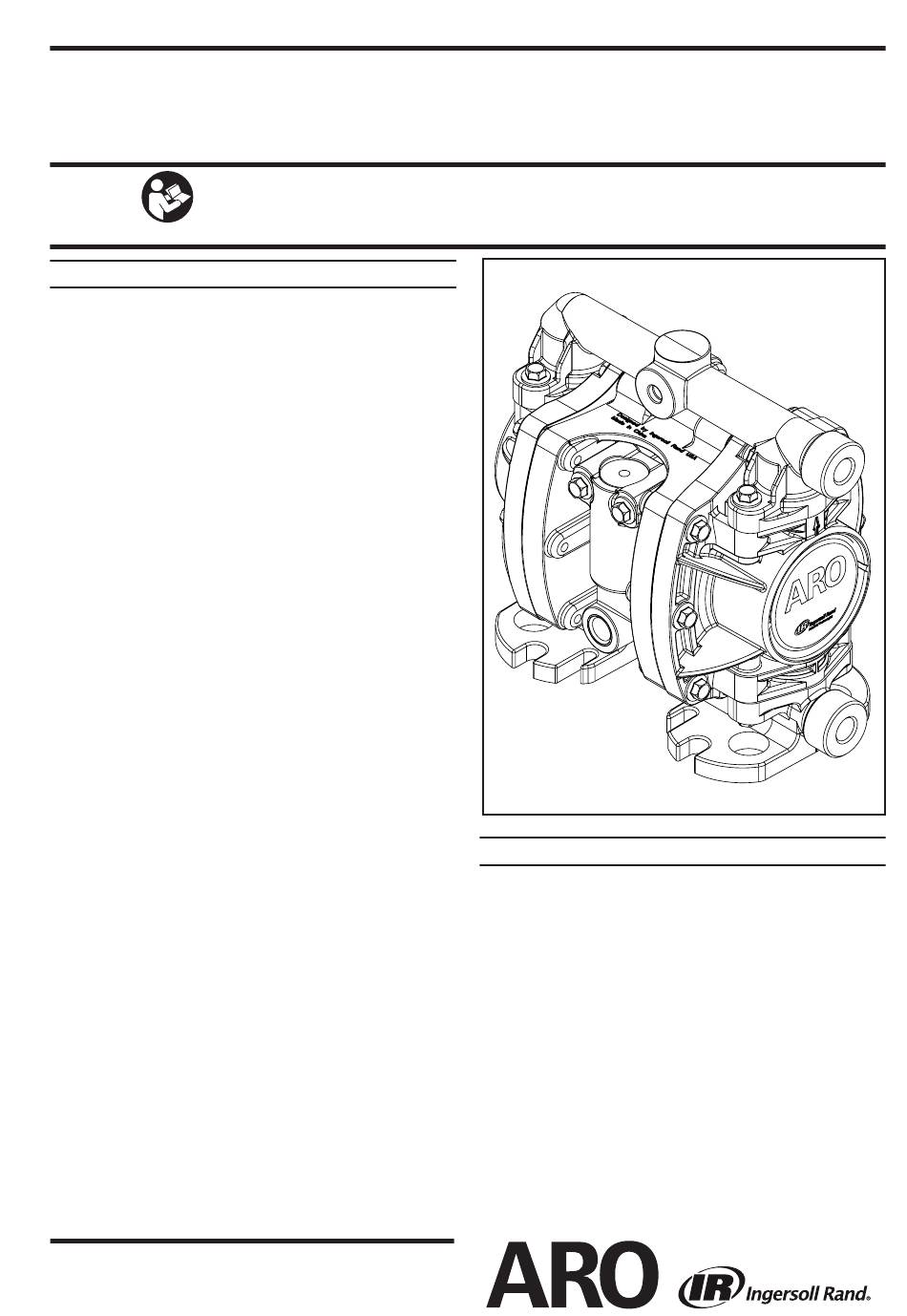

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
PUMP DATA
Models . . . . . . 670144-A
Pump Type . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . See Parts List
Weigh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . 8 6 lbs (1 . 3 0 kgs)
Maximum Air Inlet Pressure . . . . . . . . 125 psig (8 . 6 bar)
Minimum Air Inlet Pressure . . . . . . . . . 10 psig (0 . 6 9 bar)
Maximum Material Inlet Pressure . . . 10 psig (0 . 6 9 bar)
Maximum Outlet Pressure . . . . . . . . . . 125 psig (8 . 6 bar)
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 125 psig . . . . 0 . 0 19 gal / 0 . 0 72 ltrs
Maximum Particle Size . . . . . . . . . . . . . 1/16" dia . (1 . 6 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
Acetal . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
E . P . R . / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Neoprene . . . . . . . . . . . . . . . . 0° to 200° F (-18° to 93° C)
Nitrile® . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 7
Noise Level @ 70 psig, 60 cpm . . . . . . . . 62 . 3 dB(A)
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1 . 1 3-2005, CAGI-PNEUROP S5 . 1 .
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1/4" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
67 0144-A
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . 5 . 3 gpm (20 lpm)
) to meet the intent of ANSI
eq
© 2015
Model 670144-A
MODEL DESCRIPTION
670144-A Polypropylene Fluid Section/Center Body
Material, NPTF / BSPT / Hydrid Threaded
670144-A
RELEASED:
12-18-15
(REV: A)
Figure 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO 670144-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingersoll-Rand ARO 670144-A

Summary of Contents for Ingersoll-Rand ARO 670144-A

  • Page 1 MODEL DESCRIPTION S1 . 1 3-2005, CAGI-PNEUROP S5 . 1 . 670144-A Polypropylene Fluid Section/Center Body Material, NPTF / BSPT / Hydrid Threaded INGERSOLL RAND COMPANY LTD 209 NORTH MAIN STREET – BRYAN, OHIO 43506  (800) 495-0276 ...

  • Page 2: Operating And Safety Precautions

    OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE Obtain Material Safety Data Sheets on all materials from the supplier for proper handling instructions. EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS STATIC SPARK HAZARDOUS PRESSURE Verify the chemical compatibility of the CAUTION pump wetted parts and the substance being pumped,...

  • Page 3: General Description

    GENERAL DESCRIPTION OPERATING INSTRUCTIONS Always flush the pump with a solvent compatible with The ARO diaphragm pump offers high volume delivery even at low air pressures, easy self priming and the ability to pump the material being pumped if the material being pumped various viscosity materials .

  • Page 4: Parts List / Fluid Section

    PARTS LIST / FLUID SECTION COMMON PARTS MATERIAL CODE Description Item Part no Qty [Mtl] [B] = Nitrile [Co] = Copper 24028284 Rod Assembly (includes seals) [D] = Acetal [E] = E . P . R . / EPDM 23981541 Washer, Diaphragm [G] = Nitrile...

  • Page 5: Torque Requirements

    PART LIST / FLUID SECTION  TORQUE REQUIREMENTS  NOTE: DO NOT OVERTIGHTEN FASTENERS.  (26) Screws 51-55 in. lbs (5.8 - 6.2 Nm).  (6) Diaphragm Screw / Washer 60-70 in. lbs (6.8 - 7.9 Nm). LUBRICATION / SEALANTS ...
  • Page 6 PART LIST/ AIR MOTOR SECTION  TORQUE REQUIREMENTS  NOTE: DO NOT OVERTIGHTEN FASTENERS.  (26) Screws 25-28 in.lbs (2.8 - 3.2 Nm) LUBRICATION / SEALANTS  Apply Lubriplate FML-2 grease to all “O” rings, “U” cups and mating parts. ...

  • Page 7: Dimensional Data

    DIMENSIONAL DATA Dimensions shown are for reference only, they are displayed in inches and millimeters (mm) . “R” Material Outlet (External THD.) “S” Material Outlet (Internal THD.) “T” Material Inlet (Internal THD.) “Q” Air Inlet “U” Material Inlet (External THD.) DIMENSIONS A - 7 .2”...
  • Page 8 PN 97999-1766 Page 8 of 8 670144-A (en)
