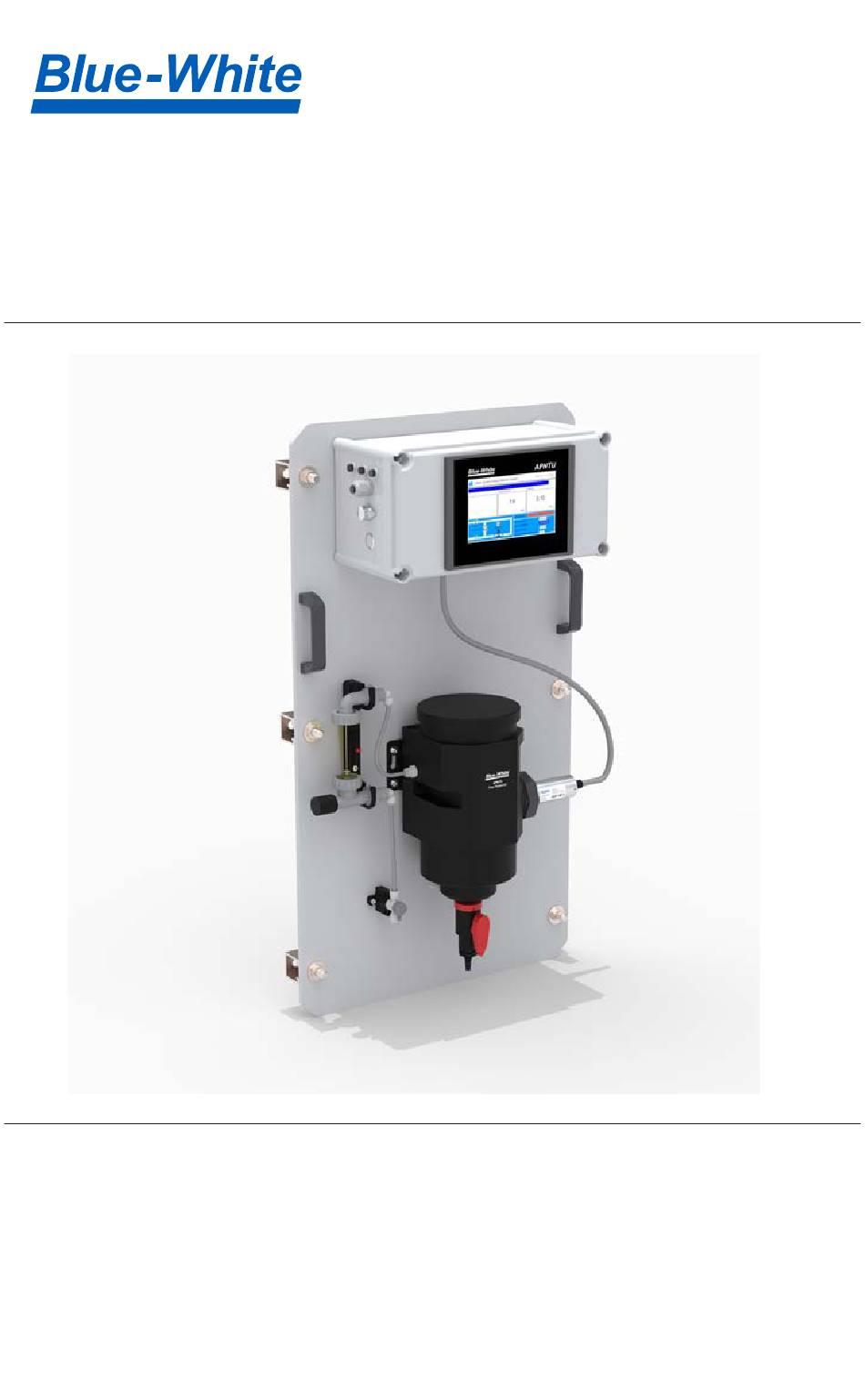

- Page 1 ® Quick Start Guide APNTU Turbidity Analyzer Panel...
- Page 2 Congratulations on your purchase on a APNTU Turbidity water analyzer! The APNTU Analyzer Panel is specifically designed as a ‘Turn-Key’ monitor- ing solution for clean water applications including drinking water networks, secondary water supply and decorative/swimming water applications. The APNTU series offers highly accurate, real-time measurement, display and data-logging of Ultra-Low Turbidity utilizing proprietary smart sensor technology, coupled with a touch screen display and data logging terminal.
-
Page 3: Pre-Installation
Follow these instructions before installing your analyzer to avoid failure. Read this guide and Instruction Manual before using. CAUTION The APNTU is designed to be installed and operated by qualified personnel only. Please note that warranty coverage does not include damage due to misuse or improper installation. -
Page 4: Installation Requirements
Outlet Line: Connect 3/4” ID tubing to the outlet drain. This is the sample water outlet flow. This line must be diverted to drain. Wall Mount Space: The APNTU analyzer panel size is roughly 20” H x 36” W x 10” D in dimension. Please accommodate sufficient space for mounting. The panel is equipped with pre-installed rear unistrut for simple wall mounting. -
Page 5: Installation
INSTALLATION Step-By-Step Measure Use the provided drawing dimensions to determine best mounting location of panel. Measure wall and locate mounting holes. Panels should be mounted at an elevation to allow for easy access to control unit. Wall Mount Weight: 45 lbs Install Strut Use the provided strut and hardware to mount the panel. -
Page 6: Start-Up And Operation
Real Time Monitoring Upon start-up, the main interface screen will appear showing real-time monitoring of the system. The data detected by the Blue-White sensor will be displayed in real-time. For further programming instructions and a functional overview of each section, please refer to complete Instruction Manual. -
Page 7: Engineering Specifications
Engineering Specifications Engineering Specifications Item APNTU Turbidity Wavelength Warm White Light Source Turbidity Dual Range 0.001 – 10 / 10 - 40.00 NTU Turbidity Accuracy +/- 0.005 NTU or 2% <10NTU Turbidity Repeatability +/- 0.001 NTU or 0.5% <10NTU Measurement Accuracy 0.001 NTU or ±... -
Page 8: Warranty
Warranty service must be performed by the factory or an authorized service center. Contact APNTU is warranted for 1 year from the date of the factory or local repair center to obtain a purchase. RMA (Return Material Authorization) number.
