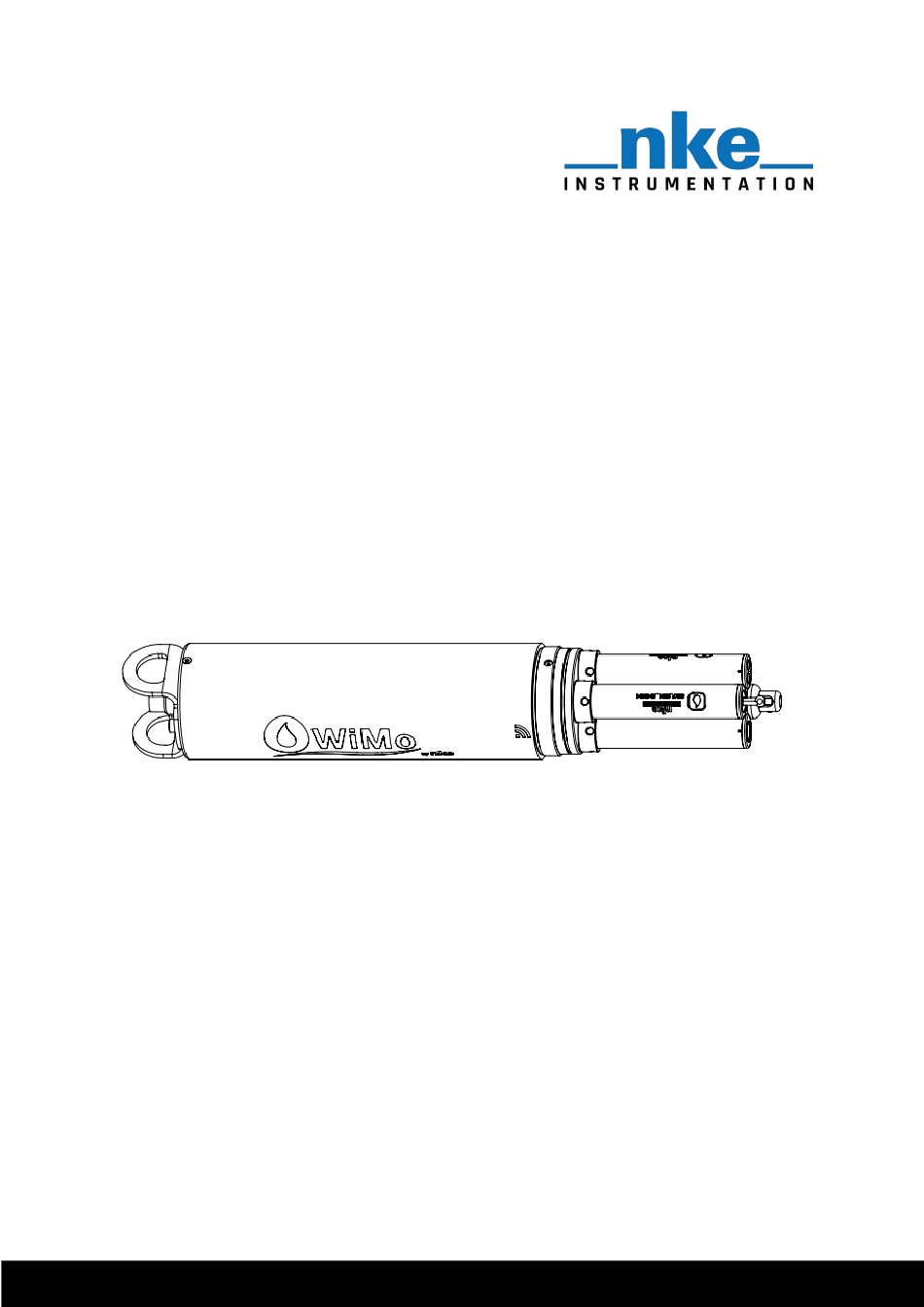

- Page 1 WiMo / WiMo Plus User Manual Revision 1.3 (09.03.22) nke Instrumentation – 6 rue Gutenberg, ZI de Kerandré, 56700 Hennebont, France...
-
Page 2: Table Of Contents
............................5 RESSURE SENSOR ............................6 LEANING DEVICE 1.4.1 Installation on a WiMo probe......................6 1.4.2 Installation on a WiMo Plus probe ....................7 OPERATION .............................. 7 ............................7 ENSORS INSTALL 2.1.1 Install/Remove caps .......................... 8 2.1.2 Install/Remove sensors ........................9 .......................... - Page 3 ............................27 ORMAT 6.2.1 Datas ............................... 28 6.2.2 settings ............................28 MANAGEMENT OF ALARM FILES ......................30 OPERATION WITH THE WIMO MODEM ....................31 20 L ........................32 LOTTEUR ITRES MO ..........................33 OUEE COTIERE RETURN A PRODUCT TO THE FACTORY ....................34...
-
Page 4: Introduction
1.1 WiMo Specifications The WiMo sonde has 4 universal locations where sensors or a cleaning system can be plugged. The sonde is equipped with a pressure and temperature sensor. It is powered by 6 Type D Alcaline batteries and is compliant with NiMH Type D rechargeable batteries. -
Page 5: Wimo Plus Specifications
A Wi-Fi link is used to setup the sonde and for file data transfer. No dedicated software is needed to setup the WiMo. An Embedded WEB Server gives access to all the sonde functionalities using an internet browser. WiMo / WiMo Plus Multiparameters Sondes... -
Page 6: Pressure Sensor
However zero will vary with changes in atmospheric pressure. The sensor contains its own temperature measurement to make its compensation. Temperature measurement is available in the WiMo and WiMo Plus sondes. WiMo / WiMo Plus Multiparameters Sondes... -
Page 7: Cleaning Device
12,3 cm 1.4 Cleaning device The WiMo and WiMo Plus sondes allow a cleaning device on their location. This device is a smart wiper. It self-configures according to the sensors that are connected to the sonde. It automatically detects whether the sensors need or can be cleaned and adjusts its wipe accordingly. -
Page 8: Installation On A Wimo Plus Probe
2 Operation 2.1 Sensors install The WiMo and WiMo Plus sondes come with a cap on each sensor location. These caps ensure the sonde is waterproof. When you remove a cap the sonde is no longer waterproof until you place a sensor or a cap. -
Page 9: Install/Remove Caps
Grease both O-rings of the cap with the grease provided and engage the cap in the location. Screw the cap clockwise until the locking sleeve is in contact with the sonde head. Help with the key tool provided if necessary. WiMo / WiMo Plus Multiparameters Sondes... -
Page 10: Install/Remove Sensors
Move the sensor slightly from right to left to check that the pin is in front of its receptacle before starting to screw. Be careful not to damage the threads of the sonde. Any deterioration of the threads is not covered by the warranty. WiMo / WiMo Plus Multiparameters Sondes... -
Page 11: Install/Remove Guard
If optical sensors are mounted on the sonde, it is important to properly set the guard to avoid bias on the measurements. The figure below shows how to set the guard on the sonde (WiMo or WiMo Plus). Screw the guard to the maximum and unscrew slightly to fit the sensors centered on the... -
Page 12: Ise Sensor Protection Guard
Operation 2.2.1 ISE sensor protection guard The protection supplied as standard with the WiMo and WiMoPlus probe does not properly protect the ISE sensors (Redox, Nitrate and Ammonium). For optimal protection it is necessary to equip yourself and change the sensor protection with ref 72-12-544... -
Page 13: Sonde Activation
Standard network support IEEE 802.11 a/b/g/n Frequency Bandwith 2.4 - 2.5 GHz The sonde can only be connected to one device at a time. Be careful to disconnect from the WiMo before reconnecting with another device. WiMo / WiMo Plus Multiparameters Sondes... -
Page 14: Tablet
2.4.2 Tablet Once the sonde is activated (see §2.3) search its SSID in the list of available networks by going into Wi-Fi settings. The sonde's SSID is in the FORM of WIMO - XXXX. Select the sonde and click "Connect"... -
Page 15: Smartphone
2.4.3 Smartphone Once the sonde is activated (see §2.3) go to Wi-Fi settings menu and search its SSID in the list of available networks. The sonde's SSID is in the FORM of WIMO - XXXX. Select the sonde and click "Connect"... -
Page 16: Web Interface
Enter the default address 192.168.56.1 in the address bar. It will be possible in the sonde interface to modify this address if you want to protect access to your WiMo. Be careful if this address is changed, take care to write it down or you will no longer be able to connect to the probe. -
Page 17: Dashboard Menu
The image of the WiMo at the top (see above) shows an overview of its configuration. On the left are the available communications and whether they are activated or not (grey icon = disabled) and on the right the sensors connected to the probe . -
Page 18: Storage
In operation with the WiMo Modem, this option is automatically activated and the measurement files cut to a size of 256K. Data files can be compressed to ZIP to save memory space. -
Page 19: Available Parameters
There are several sampling modes. In continuous mode a sample of each parameter is recorded at the rate of "measurement period." Burst mode allows you to record a number of samples for a shorter time period than "measurement period" at the rate of "measurement period." WiMo / WiMo Plus Multiparameters Sondes... - Page 20 By clicking on this symbol present in “Sampling regime”, you will see a schematic help window like the one below on the different operating modes. When operating in ModBus, Burst, Tide and Wave sampling modes are not allowed WiMo / WiMo Plus Multiparameters Sondes...
-
Page 21: Measurement Files Menu
For "data" files, information about the file is available by clicking on the information icon. Comment information, start date, end-of-record and number of samples acquired are provided. If the sonde is still running the end date of registration is not filled. WiMo / WiMo Plus Multiparameters Sondes... -
Page 22: Live View Menu
The parameter is displayed or not simply by clicking once on the associated parameter icon. You change the display arrangement by clicking on the lozenges at the top left. The active arrangement is dark blue. WiMo / WiMo Plus Multiparameters Sondes... -
Page 23: Alarm Menu
3.4 Alarm Menu The WiMO probe has 2 levels of internal battery voltage monitoring. It can generate and then transfer by Email an alarm file on detection of weak batteries. All you have to do is activate the “Low battery”... -
Page 24: Operates Sonde In Five Steps
(cf. §3) Step N°4 : Check that all sensors have been detected and set up the acquisition Step N°5 : turn on the probe Once the Wi-Fi shuts down the probe can be deployed WiMo / WiMo Plus Multiparameters Sondes... -
Page 25: Maintenance
Any damaged O-rings must be changed. 4.1.2 Sensor port service A sensor should ALWAYS be unplugged WiMo's head downwards in order to avoid any water entering the sonde. During each plug/unplug sensor operation, do a careful inspection of the surfaces of the sensor location. -
Page 26: Replace Batteries
Maintenance 4.2 Replace batteries The WiMo and WiMo Plus sondes use 6 D-type Alkaline batteries. It is important to use reliable alkaline batteries, especially batteries whose capacity is notified, as this capacity will have to be carried over in the sonde for battery life calculation (voir § 3.1.1). -
Page 27: Product Identification
. Use the Allen key to insert the two screws to lock the cap . CLIC ! 5 Product Identification The WiMo is identified with a label summarizing its identifiers and the information needed to log in. ❶ ❷ ❸ ❹ ❶ Product name ❷ QR-code to access configuration interface ❸... -
Page 28: File Formats
The Topkapi TXT2 format is a compliant format with the monitoring software, SCADA Topkapi. The name of the file is formatted as PREFIXE_AAAAMMJJHHMMSS.TXT The prefix discriminates the WiMo. It corresponds to its serial number. Each file is a 3-column ASCII file defined as follows: •... -
Page 29: Datas
This part is used to display the information about the file in the interface but can also be used by the end-user to find the full configuration of his WiMo. If compression has been enabled the configuration will be in a separate file. - Page 30 Sensor name CHANNEL_X Measurement channel name and type Unit Number of measurement precision digits Measurement mean (do not change without nke notice) CALIBRATION Type of calibration (Raw, linear, etc.) If Steinardt for example, A coefficient If Steinardt for example, B coefficient...
-
Page 31: Management Of Alarm Files
I2C no response failure with sensor « xx » Fxx4 Failure during I2C acquisition with sensor « xx » Fxx5 I2C result failure with sensor « xx » Fxx6 I2C cleaning failure with broom « xx » WiMo / WiMo Plus Multiparameters Sondes... -
Page 32: Operation With The Wimo Modem
Alarm on GPS drift (distance 5198m from the original location) + low Modem battery voltage. 8 Accessories available 8.1 Modem The 3G/4G WiMo modem coupled to the WIMO multi-parameter sonde is able to transmit its data using the deployed 3G/4G networks. The modem is multi-operator and is compliant with French and foreign networks. -
Page 33: Flotteur Wimo 20 Litres
Refer to the "3G/4G WiMo Modem" modem manual for installation and configuration. The modem can only be configured if it is connected and detected by a WiMo probe. Detection is done when you click on the Refresh button in the “Network and communication” window. -
Page 34: Bouee Cotiere W Imo
Accessories available The WIMO float 20 liters allows to easily deploy a WIMO or WiMo Plus probe equipped with a 3G/4G Modem at sea or on inland bodies of water. It provides protection against shocks and reduces the development of biofouling on the probe's body. When mounted on the float, the sensors of the... -
Page 35: Return A Product To The Factory
In case of shipment for repair or expertise, obtain an RMA number by using the procedure available on the website: https://nke-instrumentation.com/product-return-form/ Pack the product in its original shipping box to prevent damage in transit WiMo / WiMo Plus Multiparameters Sondes... - Page 36 Return a product to the factory nke Instrumentation 6 rue Gutenberg, ZI de Kerandré 56700 Hennebont, France Tel +33 2 97 36 41 31 – Fax +33 02 97 55 17 www.nke-instrumentation.com WiMo / WiMo Plus Multiparameters Sondes...
