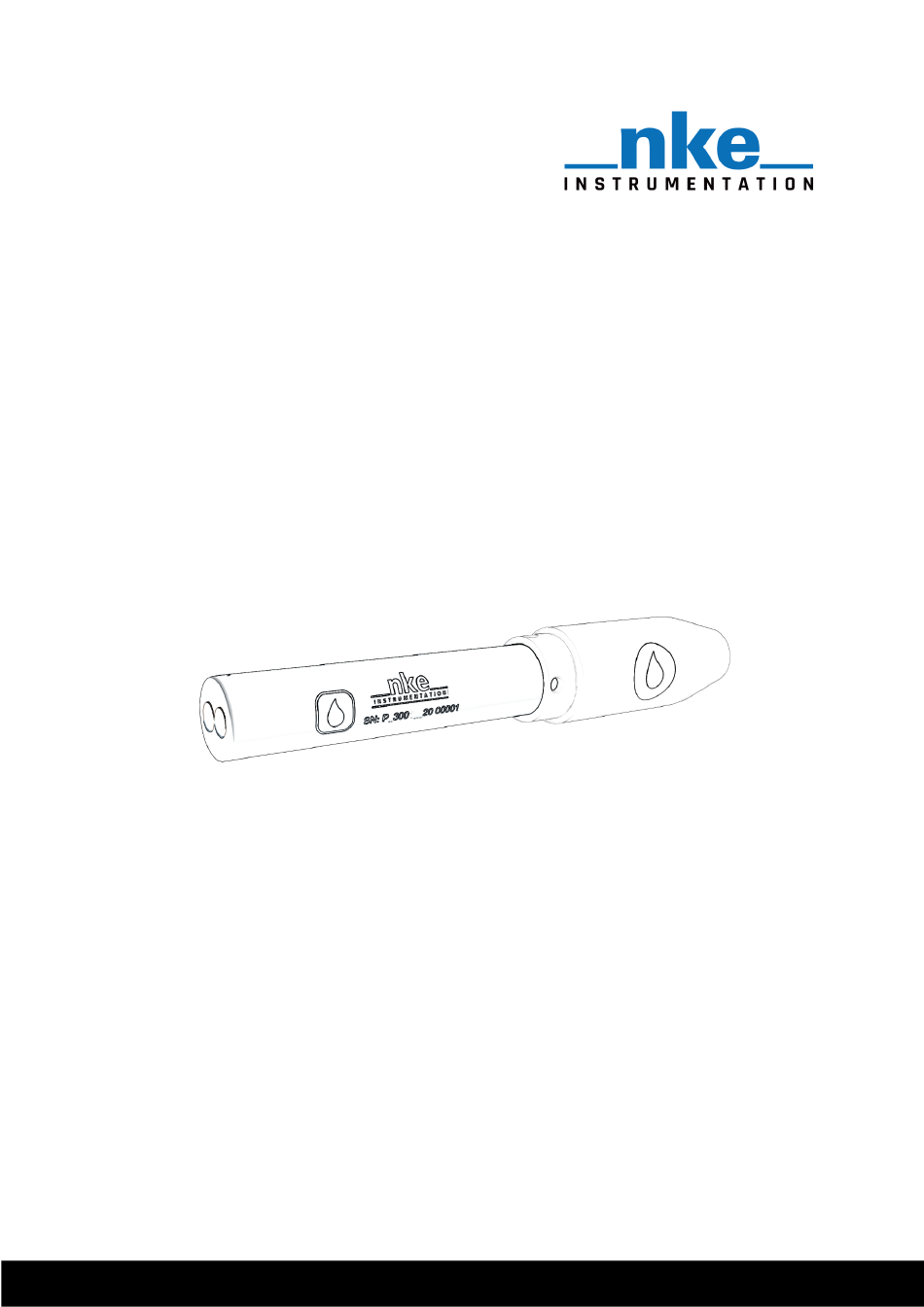

- Page 1 WiMo Calibration Tool User Manual Revision 1.0 (10/06/2021) nke Instrumentation – 6 rue Gutenberg, ZI de Kerandré, 56700 Hennebont, France...
-
Page 2: Table Of Contents
........................6 ESET NKE FACTORY CALIBRATION ..........................7 TART MEASUREMENT ..........................8 DD CALIBRATION POINTS 4.4.1 Calibration point manual add......................8 4.4.2 Calibration point quick add ....................... 9 ........................10 ELECT THE ALIBRATION TYPE WiMo / WiMo Plus Multiparameters Sondes... -
Page 3: About This Document
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. nke Instrumentation, its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “nke Instrumentation”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any user manual or in any other disclosure relating to any product. -
Page 4: Introduction
2.2 WiMo sensor and calibration tool As mentioned in the previous part, the WiMo sensors are plug and play systems. It allows to calibrate them independently of a WiMo Sonde. To achieved that, nke has developed an usb calibration tool which connects a WiMo sensor to a computer. -
Page 5: Quick Start
Quick start 3 Quick start This part is an introduction about how to start using the usb sensor tool with WiMo Calibration Tool software. 3.1 Sensor and interface connection Plug the sensor to the usb calibration tool: 1 - Engage it in the location by making the coded pin coincide with the host hole in the usb tool, 2 - Screw the sensor locking sleeve in the clockwise direction. -
Page 6: Start A New Calibration
Start a new calibration 4 Start a new calibration 4.1 Detect the sensor 1 - Click on the refresh button. 2 - Sensor informations are displayed. WiMo / WiMo Plus Multiparameters Sondes... -
Page 7: Reset Nke Factory Calibration
Start a new calibration 4.2 Reset nke factory calibration A new sensor delivered from nke has already been calibrated. To start new calibration, user has to remove and reset last one. nke factory calibration can be removed in the calibration menu. -
Page 8: Start Measurement
Start a new calibration 4.3 Start measurement Measurement can be made in the “Live view” left menu section (1). To start press the top on/off button (2). WiMo / WiMo Plus Multiparameters Sondes... -
Page 9: Add Calibration Points
3 – Button “Delete selected point”: after clicking on a row in calibration point table, selected points will be removed from the sensor. 4 – Button “Delete all points”: delete all calibration points for the selected sensor channel. WiMo / WiMo Plus Multiparameters Sondes... -
Page 10: Calibration Point Quick Add
In the last section named “Add to calibration point”, you will be able to quickly add calibration point to the sensor. However, it is necessary to stop measurement to submit new point. WiMo / WiMo Plus Multiparameters Sondes... -
Page 11: Select The Calibration Type
For most of the sensor, user will have the choice between: “None” which means no calibration will be applied on the current channel, linear, degree polynomial, degree polynomial. Some calibration types could be not available for some sensors. Your sensor is now calibrated. WiMo / WiMo Plus Multiparameters Sondes... - Page 12 Start a new calibration nke Instrumentation 6 rue Gutenberg, ZI de Kerandré 56700 Hennebont, France Tel +33 2 97 36 41 31 – Fax +33 02 97 55 17 www.nke-instrumentation.com WiMo / WiMo Plus Multiparameters Sondes...
