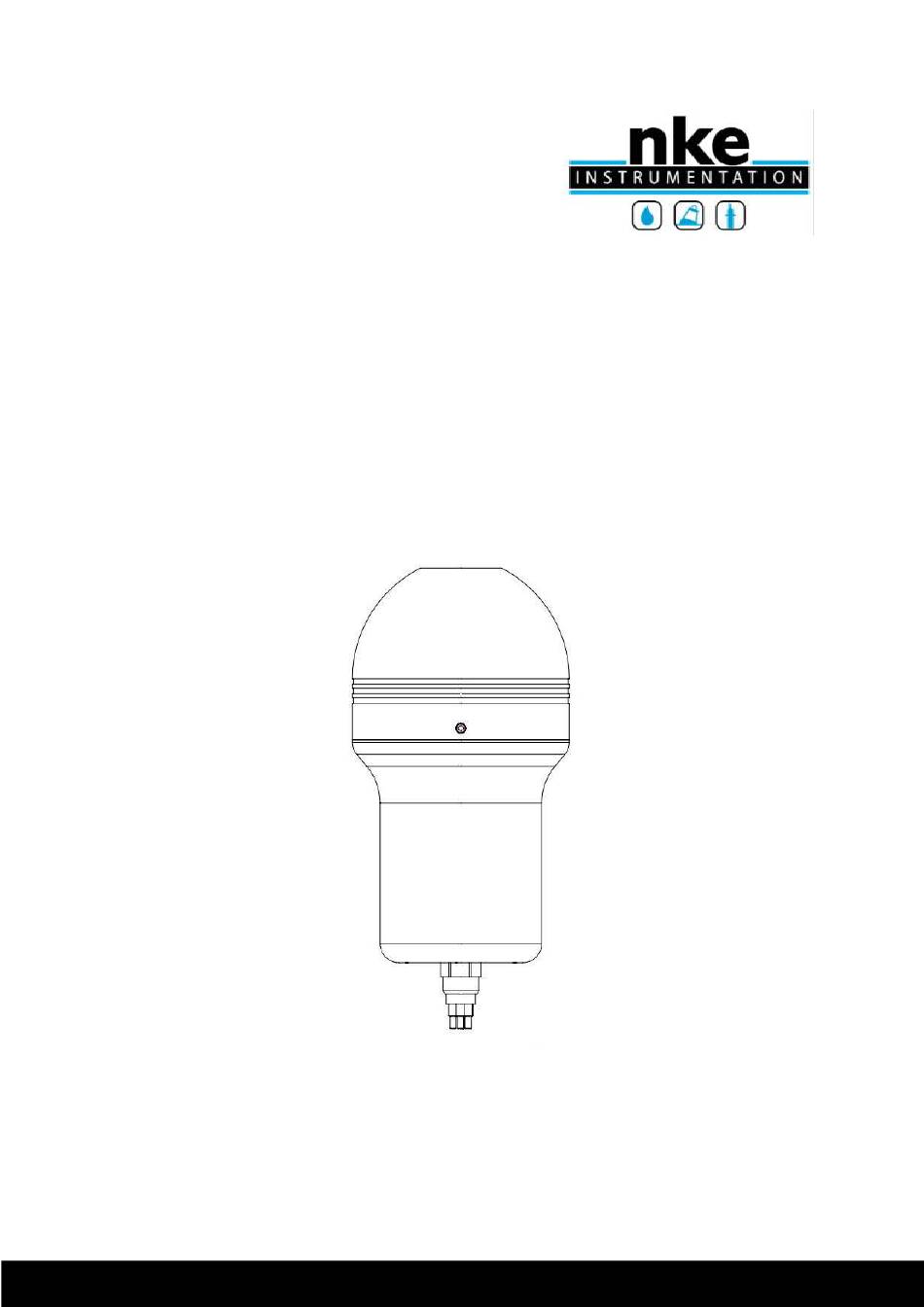

- Page 1 3G/4G WiMo Modem User Manual Revision 1.0 (29.01.21) nke Instrumentation – 6 rue Gutenberg, ZI de Kerandré, 56700 Hennebont, France...
-
Page 2: Table Of Contents
............................. 3 HIPSET OPERATION .............................. 4 SIM C ............................. 4 ARD INSTALL ............................6 ODEM SETTINGS 2.2.1 Connection to WIMO Sonde ......................6 2.2.2 Modem configuration update ......................6 ............................ 7 ROVIDER SETTINGS SMTP ............................7 PROTOCOL FTP P ............................8 ROTOCOL .............................. -
Page 3: Introduction
The modem once connected to a WIMO sonde is automatically detected. The sonde is then able to set it up. The modem retrieves files acquired by the WIMO and transmits them at the user defined rate. It has a GPS inside and can use it to transmit its position through the 3G/4G network. The end-user can setup the modem to monitor a circular area with alarm transmission if the buoy goes outside this area. -
Page 4: Gps Chipset
When switching on the WIMO sonde, if the GPS function is enabled, a reference position is acquired. The modem will keep the position found as the initial position of the sonde. If the sonde moves away from this position at a greater distance than the user-defined one an alarm can be sent. -
Page 5: Operation
Unscrew the two grub screws with the supplied Allen key so that the cover can be removed. Be careful not to pull too hard on the cover to avoid damaging the connection cables. Locate the SIM card slot and lift the cover by sliding it back. Modem 3G/4G WiMo... - Page 6 Reassemble the cover on the modem, paying attention to the seal and checking that no impurities have been present. Insert the two grub screws and tighten them with the Allen key until they are flush with the cover. Modem 3G/4G WiMo...
-
Page 7: Modem Settings
2.2.1 Connection to WIMO Sonde The modem can only be setup if it is connected to a WiMo sonde. Use the SUBCONN 6-contact cable supplied with the modem. Connect the cable to the Modem and the WiMo sonde as shown in the figure below Connect via Wi-Fi to the WiMo sonde using a PC, smartphone or tablet (i.e. -
Page 8: Provider Settings
"Protocol" selection box. The protocol must then be set up. The user must create an e-mail address for the probe which is the sender address. He must enter the SMTP server used and the password associated with the Mail account. Modem 3G/4G WiMo... -
Page 9: Ftp Protocol
Port associated with the server It is not possible to define a destination directory. The modem will drop the files in the directory where the FTP account has access (at the root of the access directory most of the time). Modem 3G/4G WiMo... -
Page 10: Gps Period
The modem can generate an alarm if the acquired GPS positions are too far from the reference GPS position of the measurement point. Enabling is setup in the " Alarm " tab of the sonde (see WIMO/WIMO Plus user manual). The "Alarm General Settings" allows you to define the area radius (Move off position) from which a GPS alarm will be generated. -
Page 11: Upload Files Period
Also if the transmission rate is high, this scanning will impact the autonomy of the modem. In this case it is recommended to set the modem to a low rate (24h). Modem 3G/4G WiMo... -
Page 12: Maintenance
3.3 Replace batteries The WiMo Modem works with 8 alkaline type C batteries. It is important to use reliable Alkaline batteries, especially batteries with a notified capacity to ensure maximum longevity. Step 1 : Unscrew the two grub screws with the supplied Allen key so that the cover can be removed. - Page 13 Screw the battery holders back on as shown in the diagram. Check that the spring associated with the black wire is on the negative pole of the battery and that the spring associated with the red wire is on the positive pole of the battery. Modem 3G/4G WiMo...
- Page 14 Step 5 : Reconnect the 2-pin connector of the battery pack, paying attention to the coding of the connector. Reinstall the cover on the modem, checking the seal and checking that no impurities are present. Insert the two grub screws and tighten them with the Allen key until they are flush with the cover. Modem 3G/4G WiMo...
-
Page 15: Product Identification
The modem is identified by a label stuck on its side. It identifies the type of product and its serial number. ❶ ❷ ❸ ❶ Product Name ❷ Product family code (internal nke instrumentation code) ❸ Product serial number Modem 3G/4G WiMo... - Page 16 Product Identification nke Instrumentation 6 rue Gutenberg, ZI de Kerandré 56700 Hennebont, France Tel +33 2 97 36 41 31 – Fax +33 02 97 55 17 www.nke-instrumentation.com Modem 3G/4G WiMo...
