NMEA Flash input
interface
Product reference : 90-60-360
REV: 2
USER GUIDE
and
INSTALLATION GUIDE
nke
-
Sailing competition
Z.I. Kerandré – Rue Gutenberg – 56700 HENNEBONT- FRANCE
http://www.nke.fr – After sale service tel : +33 (0) 892 680 656.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMEA 90-60-360 and is the answer not in the manual?

Questions and answers

Related Manuals for NKE NMEA 90-60-360

Summary of Contents for NKE NMEA 90-60-360

  • Page 1 NMEA Flash input interface Product reference : 90-60-360 REV: 2 USER GUIDE INSTALLATION GUIDE Sailing competition Z.I. Kerandré – Rue Gutenberg – 56700 HENNEBONT- FRANCE http://www.nke.fr – After sale service tel : +33 (0) 892 680 656.
  • Page 2 TABLE OF CONTENTS PRESENTATION ........................3 LIST OF IDENTIFIED NMEA FRAMES ................3 TECHNICAL SPECIFICATIONS ................... 5 DIAGNOSTIC OF 1 LEVEL TROUBLESHOOTING............5 INSTALLATION ........................6 5.1 L ......................6 IST OF ACCESSORIES 5.2 I ....................6 NSTALLATION PRECAUTIONS 5.3 H NMEA I .............

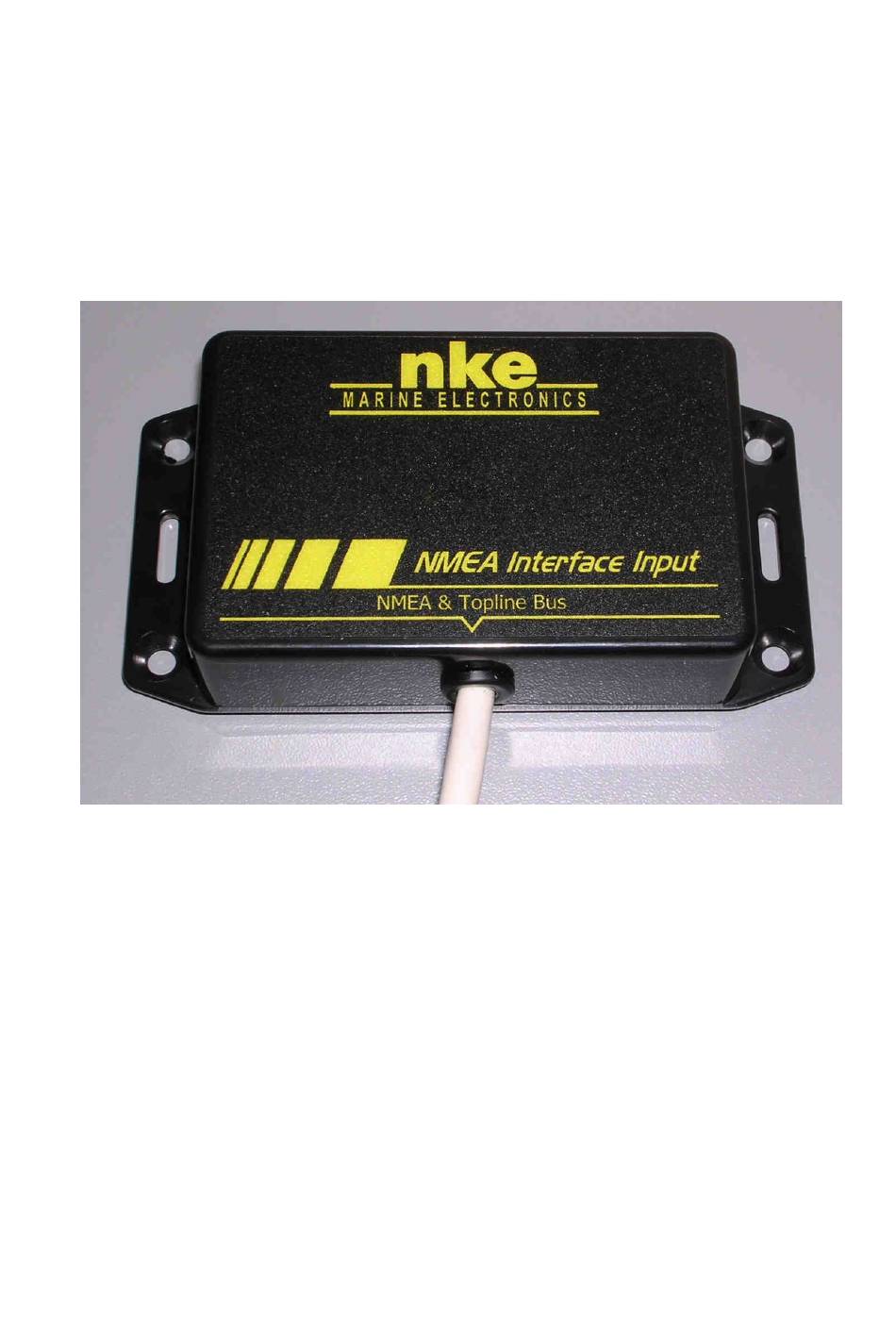

  • Page 3 PRESENTATION The NMEA input interface allows the connection to the Topline bus of any instrument fitted with an NMEA 0183 output (GPS, PC, etc.). It is a one-way communication gateway, which converts the NMEA data transmitted by the instrument, into Topline channels. These can then be used on the instruments of your Topline installation : display, driver, calculator.
  • Page 4 TEMP_WATER BARO SPEEDO ANEMO APP_WIND_ANG DIST_TO_WP HEAD_TO_WP (true) X_TRACK BOTT_SPD BOTT_HDG (true) DIR_HDLG C_WP_OD B_PILOT YEARMONTH R_COMPAS R_ APP_WIND_ANG LAT_DEGMIN LAT_MILMIN LON_DEGMIN LON_MILMIN V_WP TARGET_SPD OTHER_SIDE_HDG OPT_WIND_ANG PRES_EFF POLAR_EFF CMG_OPT_ANGLE VMG_OPT_ANGLE CMG_TRACK_GAIN VMG_TRACK_GAIN CURRENT_DIREC CURRENT_SPD ATM_PRESS NMEA input interface guide 33-60-466-000 REV : 2...
  • Page 5 : see installation chapter An NMEA channel does not show on the Topline display The Topline channel is already present and provided by an nke of your installation. instrument.
  • Page 6 INSTALLATION 5.1 List of accessories TOPLINE terminal box : 90-60-121 TOPLINE terminal box, with NMEA connection : 90-60-417 5.2 Installation precautions The housing of the NMEA input interface is waterproof against water spray. Install the housing in a location that is unlikely to get flooded. 5.3 Installation of the NMEA input interface housing Fix the housing in place using Ø4 screws unit : mm...
  • Page 7 5.4 Connection to the Topline bus 1. Make the bus cable run from the NMEA input interface to the TOPLINE terminal box of your installation. 2. Connect the bus cable inside the terminal box. Connect the NMEA+ and NMEA- conductors to your instrument. Output NMEA Yellow wire instrument...
  • Page 8 5.5 Initialisation of the NMEA input interface At the first power-up, the NMEA input interface must be initialised in order to identify and memorise the NMEA frames transmitted by the instrument (GPS, PC, etc.). The NMEA channels created are then saved to the memory of the NMEA input interface, and restored at each power-up, on the Topline bus.
