Summary of Contents for Manhattan Comfort Accentuatios Boden 99AMC128

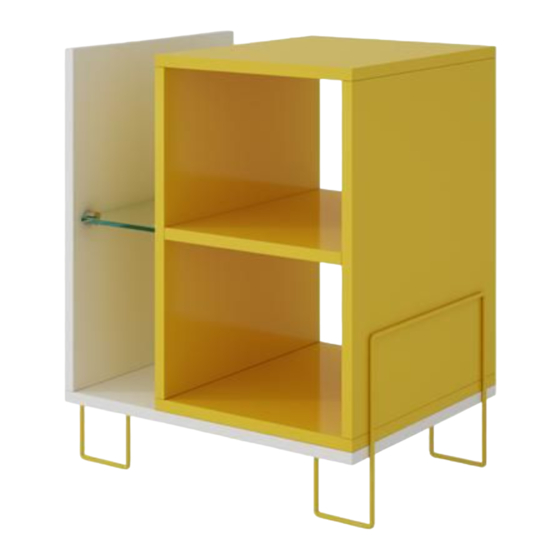

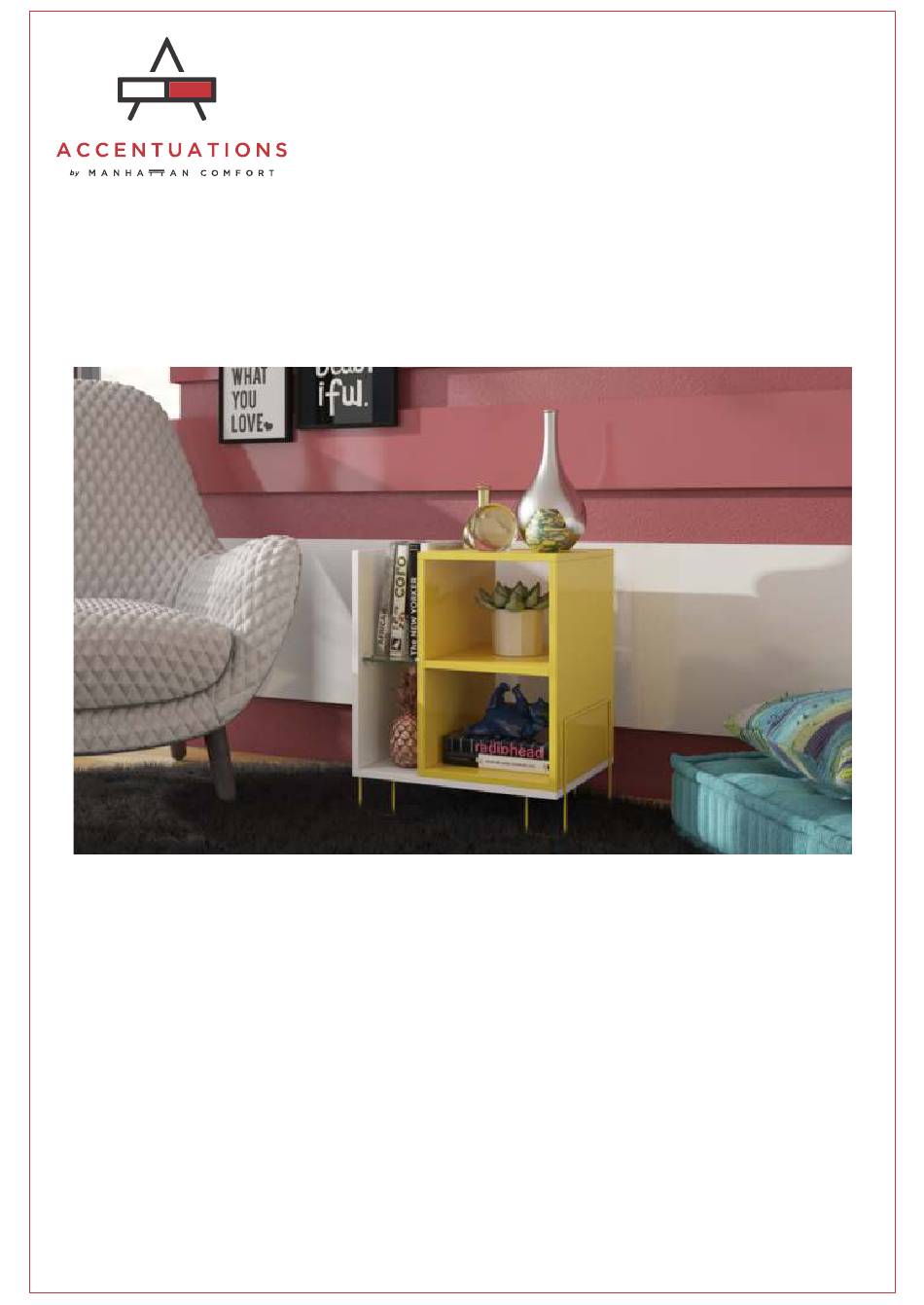

- Page 1 Boden Bookcase 2.0 Model: 99AMC128, 99AMC47 help@manhattancomfort.com Stuck?! Need Help?! 888-230-2225...
- Page 2 Dimensions: 07/17...
-
Page 3: Part Description
PART DESCRIPTION QTY. Base Lower Base Left Side Right Side Partition USE ALCOHOL TO Shelf REMOVE PART Glass Shelf NUMBERS Feet... -
Page 4: Hardware Parts
HARDWARE PARTS QTY. CODE EF 000033 EF 000139 EF 000107 EF 000008 EF 000688 EF 000696 EF 000713 TO IMPROVE ASSEMBLY, USE AN ELECTRONIC SCREWDRIVER... - Page 5 Using glue, insert harwdare EF 000033 into piece 05. Using glue, insert harwdare EF 000033 into piece 08.
- Page 6 Using glue, insert harwdare EF 000033 and EF 000696 into piece 06. Consider the picture. Fix hardware EF 000713 at piece 06 using hardware that goes with it. Using glue, insert hardware EF 000033 into piece 04. Fix hardware EF 000713 at piece 04 using hardware the goes with it.
- Page 7 Connect pieces 05, 06 and 08 using glue, check the picture and position of hardware EF 000696. Using glue, fix piece 03 at the part assembled on previous step, consider the extremity of hardware EF, already inserted. Fix piece 02 at the part assembled on previous step, consider the extremity of hardware EF 000696 already inserted.
- Page 8 Fix piece 04 at piece 06 using hardware EF 000713. Repeat the same step for fixing piece 09 at part assembled on previous step. Fix piece 01 at the part assembled on previous step using hardware EF 000139. EF 000139...
- Page 9 Use hardware EF 000107 for fixing piece 10 at the part assembled on previous step, according the picture. After, insert hardware EF 000688 to finish it.
