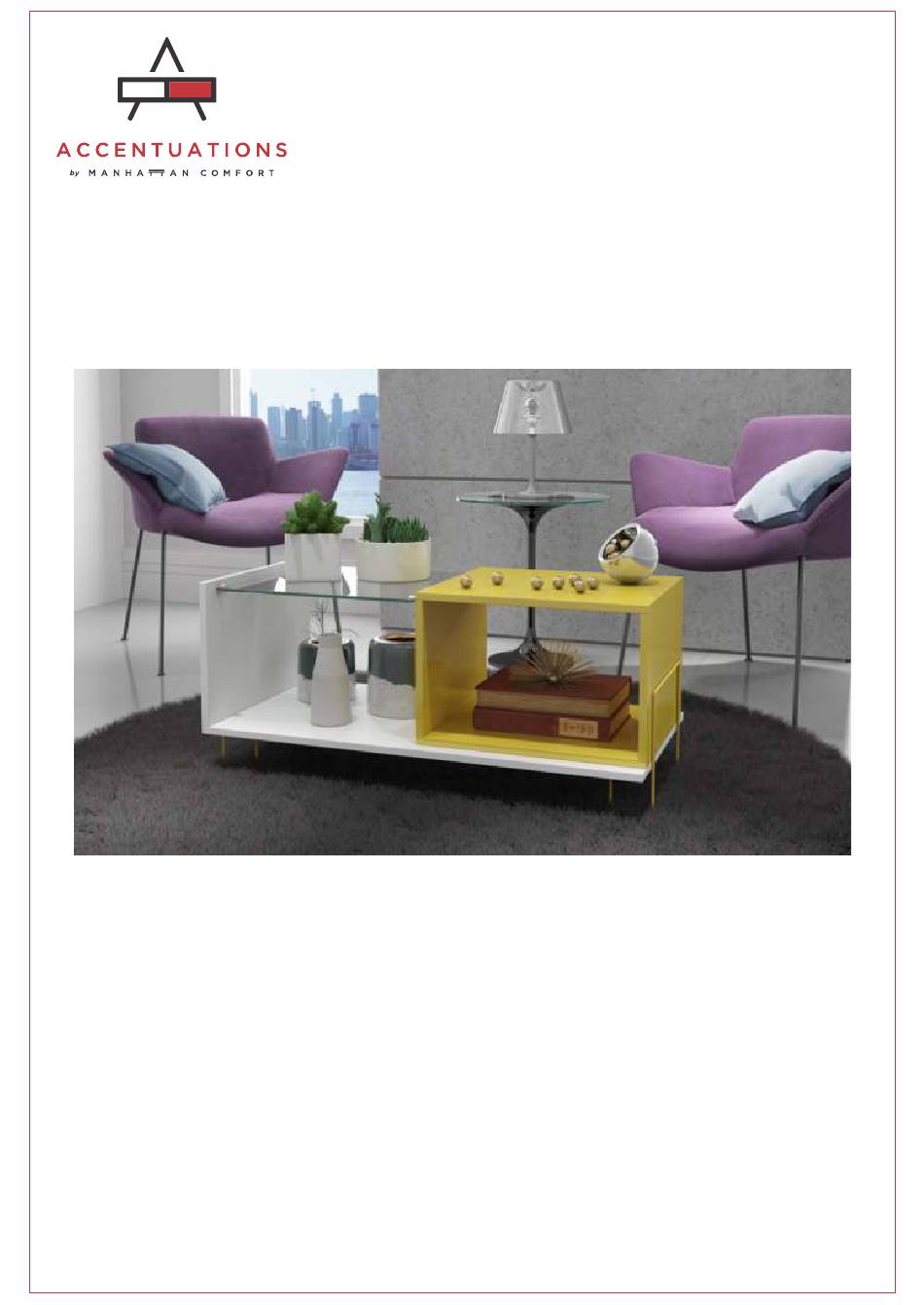

- Page 1 Boden End Table Model: 97AMC128, 97AMC47 help@manhattancomfort.com Stuck?! Need Help?! 888-230-2225...
- Page 2 Dimensions: 07/17...
-
Page 3: Part Description
PART DESCRIPTION QTY. Base Left Side Right Side Partition Smaller Base USE ALCOHOL TO Glass Shelf REMOVE PART Feet NUMBERS... -
Page 4: Hardware Parts
HARDWARE PARTS QTY. CODE EF 000033 EF 000133 EF 000107 EF 000008 EF 000688 EF 000696 EF 000713 TO IMPROVE ASSEMBLY, USE AN ELECTRONIC SCREWDRIVER... - Page 5 Use glue for fixing hardware EF 000696 and EF 000033 at piece 03, according the picture. Using glue, fix hardwares EF 000033 and EF 000696 at pieces 04, according the picture. Fix hardware EF 000713 at piece 04 using hardware that goes with it.
- Page 6 Fix hardware EF 000713 at piece 02 using hardware that goes with it. Using glue, fix hardware EF 000033 at piece 02. Using glue, connect pieces 03, 04, 05 and 06.
- Page 7 To connect pieces 07 at piece 02 and the part assembled previously, use hardware EF 000713, according the picture. Use hardware EF 000133 to fix piece 01 at the part assembled previously.
- Page 8 Use hardware EF 000107 to fix piece 10 at the part assembled previously, according the picture. After, insert hardware EF 000688 to finish it.
