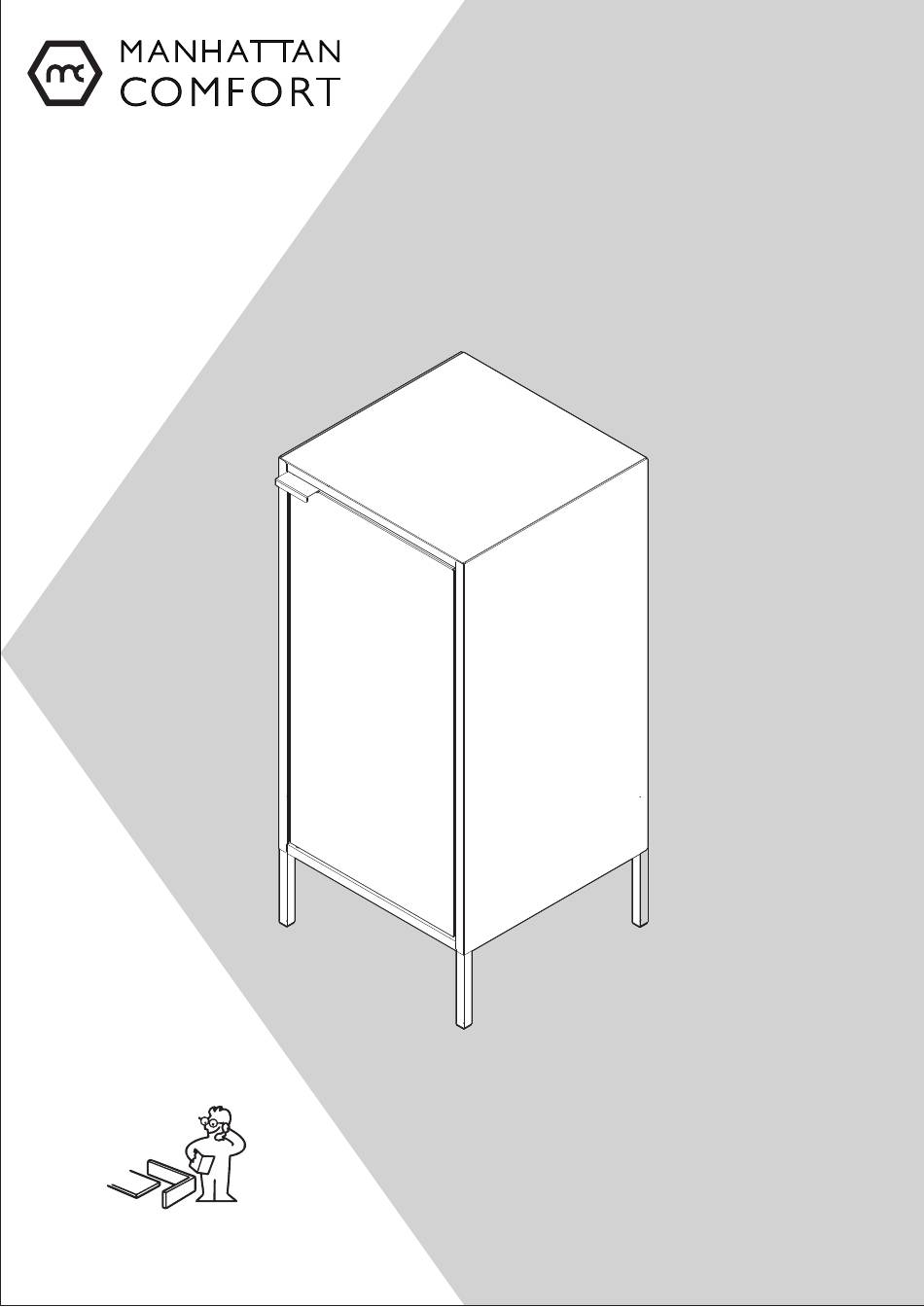

- Page 1 1000010414 - 31/07/2019 Assembly Guide Model: 9GMC1 / 9GMC2 / 9GMC3 / 9GMC4 Tall Cabinet Stuck? Questions? We are here to help. 1-888-230-2225 help@manhattancomfort.com...
-
Page 2: Identification Of Parts
In order to ease the assembly, you should separate and identify the parts first Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly. IMPORTANT In order to avoid severe or even fatal injuries, follow the instructions carefully. - Page 3 ASSEMBLED PRODUCT: H: 29.92'' W:13.77'' L:13.77'' CEILING BACK LEFT SIDE SHELF RIGHT SIDE DOOR REAR FRAME FRAME Maximum weight supported distributed...
-
Page 4: Hardware List
Hardware list 1000008297 1000008616 1000009033 1000000281 - WHITE 1000007352 - BLACK 1000010221 - BLUE Qty. 2 Qty. 2 Qty. 1 Qty. 2 1000010136 1000008285 1000008285 3000009645 - WHITE 3000009643 - BLACK 3000009649 - BLUE 3000009647 - GREY Qty. 2 Qty. 1 Qty. - Page 5 1 - Check the alignment of the holes on the fitted parts. 2 - The hole in the horizontal bar of part FRAME , should be up. R I G H T S I D L E F T S I FRAME 1 - With the end of F3, smash the safety claw, locking part...
- Page 6 1 - Identify the cutout on the top end of the BACK part. 2 - Attach the BACK part on the LEFT SIDE, RIGHT SIDE FRAME parts. 3- Slide part BACK to support on parts LEFT SIDE and RIGHT SIDE. F R A 1 - With the end of F3, smash the safety claw, locking part...
- Page 7 1 - Attach the joint of the front of the REAR part under the FRAME part. 2 - Lower the REAR part as indicated. 1 - Check all the fittings before moving forward. REAR REAR...
-
Page 8: Left Side
1 - Attach the CEILING part on the parts LEFT SIDE RIGHT SIDE 2 - Pull the front of the P3 part. - Page 9 1 - With the end of F3, smash the fety claw, locking part CEILING to part BACK CEILING 1- Slightly turn the SHELF part and place it inside the cabinet, as indicated. 2- Check all the fittings before continuing.
- Page 10 1 - Lay the cabinet against the wall and mark the hole. IMPORTANT: CABINET MUST BE ATTACHED TO THE WALL 1 - Drill the wall on the marked point, using a ½” drill bit. ½”...
- Page 11 1 - Insert the metal part of the bushing into the hole until it overcomes the wall. WALL 2 - Pull the bushing driving it against the wall and then push the plastic ring until it leans close to the wall WALL Plastic ring 3 - Break the bushing's rods...
- Page 12 1 - Insert the screw F2 into the hole of part BACK 2 - Turn screw F2 with part F3 clockwise 3 - Press part F4 against the heads of the F2 screws. 1 - Attach the F5 into the FRAME part.
- Page 13 DOOR 1 - Attach the F7 handle to the door as indicated below DOOR 1 - Attach the F6 into the DOOR holes. DOOR...
- Page 14 1 - Attach part DOOR to the bottom of the cabinet through part DOOR 2 - Finish engaging part DOOR through the pivoting wrench as shown below. DOOR 1 - Glue F8 to part DOOR in the indicated area..
- Page 15 TAKING GOOD CARE OF YOUR CABINET Cleaning and caring instructions: - Avoid dragging objects on top of the cabinet. They might scratch the finishing. - Only non-abrasive natural chemical products are recommended to clean your cabinet. Simply wipe the cabinet down with a wet cloth to remove the cleaning product excess.
- Page 16 ITEMS EXCLUDED FROM WARRANTS This limited warranty does not cover: 1. In-home service including, but not limited to, service calls to correct the installation of any Manhattan Comfort Smart Diy products or to instruct the consumer on how to use or install them.
