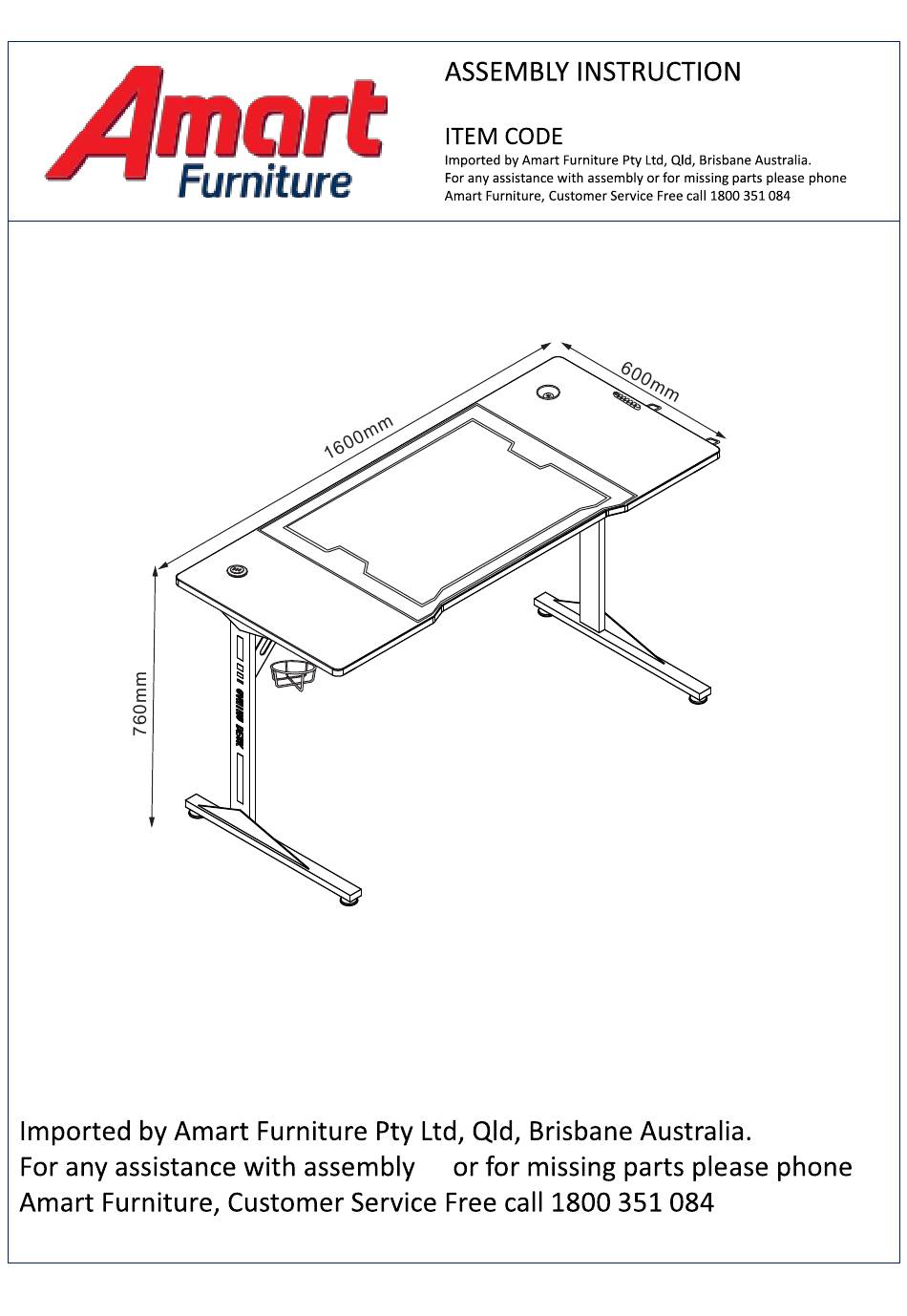

- Page 1 PROMETHEUS GAMING DESK 75374 75374 1-11...
- Page 2 75374 2-11...
- Page 3 Left frame Right frame Support metal plate Support frame Cable storage box Connection metal plate 11 Mouse mat Screw Screw Screw M6X30 mm M6X60 mm M6X12mm 12pcs 4pcs 21pcs Screw 8X30mm ST3.5X14mm 2pcs 7pcs 2pcs M8X45mm M6X16mm 4pcs 2pcs 75374 3-11...
- Page 4 Step 1: Insert parts K into frames 3 and 4 . Step 2: Attach panel 1 to panel 2 with dowels D. 75374 4-11...
- Page 5 Step 3: Insert frame 5 to frame 6. Attach frame 5 to frame 6 with metal plate 10 and secure with screws C. Step 4: Attach panels 1 and 2 to frames 5 and 6 with screws B. 75374 5-11...
- Page 6 Step 5: Attach panels 1 and 2 to frames 3, 4, 5 and 6 with screws A and B. Step 6: Attach support plate 7 to frames 3, 4, 5 and 6 with screws C. 75374 6-11...
- Page 7 Step 7: Attach frame 8 to panels 1 and 2 with screws C. Step 8: Attach cable storage box 9 to frame 8 with screws J. 75374 7-11...
- Page 8 Attach parts G to panel 2 with screws C and E. Step 10: Insert part I into panel 2. Insert part F1 into panel 1 with screw E, then insert part F2 into part F1. Attach part H to panel 1 with screws C and E. 75374 8-11...
- Page 9 Step 11: Put down mouse pad 11 and attach part L to the position you want. Assembly complete! 75374 9-11...
