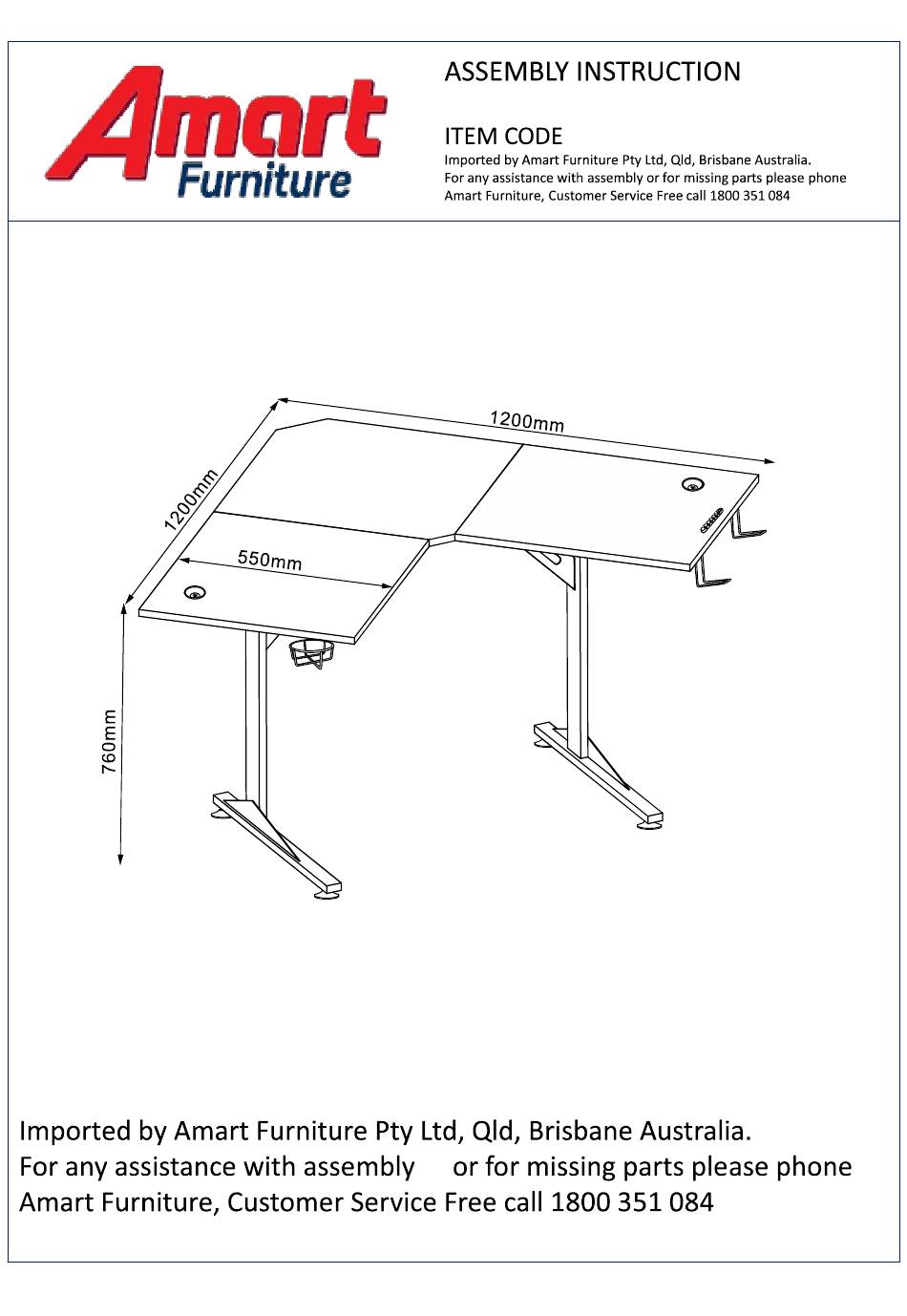

- Page 1 INSURGENT CORNER GAMING DESK 75373 75373 1-10...
- Page 2 75373 2-10...
- Page 3 Left panel Middle panel Right panel Left main frame Right main frame Front connection pipe Back connection pipe Connection pipe Support metal plate Cable storage box Support frame Connection metal plate Connection metal plate Screw Screw Screw M6X50 mm M6X12 mm M6X30 mm 10pcs 11pcs...
- Page 4 Step 1: Attach panels 1 and 3 to panel 2 with connection metal plates 12 and 13 and secure with screws C. Step 2: Attach connection pipe 7 to 8 with screws A. 75373 4-10...
- Page 5 Step 3: 1.Insert parts I into frames 4 and 5. 2.Attach frames 4 and 5 to connection pipes 6 and 7 with screws A. Step 4: Attach the frame to panels 1, 2 and 3 with screws B. 75373 5-10...
- Page 6 Step 5: 1.Attach frame 11 to panel 2 with screws C. 2.Attach metal plate 9 to panels 1&3 and frames 4&5 with screws C. Step 6: Attach cable storage box 10 to frame 11 with screws H. 75373 6-10...
- Page 7 Step 7: 1.Attach parts E into panels 1 and 3. 2.Attach part G into panel 1 with screws C and D. 3.Attach parts F into panel 3 with screws C and D. Step 8: Attach part J to the position you want. 75373 7-10...
- Page 8 Assembly complete! 75373 8-10...
- Page 9 75373 9-10...
- Page 10 75373 10-10...
