Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2022-07-20
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

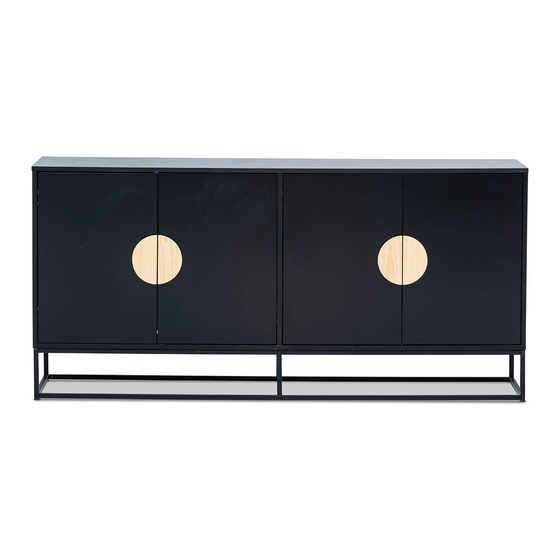

VALKYRIE BUFFET
74934
ITEM CODE
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
74934
Item Code:
Advertisement
Related Manuals for Amart Furniture VALKYRIE 74934
Summary of Contents for Amart Furniture VALKYRIE 74934
- Page 1 ITEM CODE Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 74934 2022-07-20 Item Code:...
- Page 3 TOP PANEL WOODEN HANDLE x 4 LEFT SIDE PANEL BACK PANEL x 4 RIGHT SIDE PANEL SHELF PANEL x 4 BOTTOM PANEL MIDDLE PANEL x 2 MIDDLE PANEL LEFT DOOR PANEL RIGHT DOOR PANEL TOP METAL BAR x 2 LEFT DOOR PANEL BOTTOM METAL BAR x 2 RIGHT DOOR PANEL METAL SUPPORT BAR x 2...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 74934 2022-07-20 Item Code:...
- Page 6 10xA STEP 1: Fix cam bolts (A) to top panel①. 10xC 10xD STEP 2: Attach right side panel③ middle panels middle panel⑤ left side panel② to bottom panel④ using dowels(C) and screws(D). 74934 Item Code: 2022-07-20...
- Page 7 STEP 3: Join four back panels with fillers(R) to the existing unit. 11 11 10xB 10xC Attach top panel① to the existing unit using cam locks(B) and dowels(C). STEP 4: 74934 Item Code: 2022-07-20...
- Page 8 Attach top metal bar⑥, bottom metal bar⑦ and metal support bar⑧ STEP 5: using screws(P) and allen key(G). STEP 6: Paste stickers(N) to cover the screws. 74934 Item Code: 2022-07-20...
- Page 9 Attach metal legs⑨ to the existing metal frame using screws(K) STEP 7: and allen key(G). 12xJ 12xI Attach bottom metal frame to the body using allen key(G), STEP 8: screws(J) and washers(I). 74934 Item Code: 2022-07-20...
- Page 10 16xO Fix door hinges(M) to door panel using screws(O). STEP 9: 14 15 16 17 Fix wooden handle⑩ to door panels using screws(H) 14/16 15/17 32xO STEP 10: 10、Attach door panels to the existing unit using screws(O) 14 15 16 17 Assemble these four holes first, adjust the door and ensure it is level, then tighten all screws.
- Page 11 INFORMATION 16xQ STEP 11: Place shelf supports(Q) as shown in diagram. Put shelf panels the shelf supports. 74934 Item Code: 2022-07-20...
- Page 12 16xF 16xL Fix plastic brackets(L) to the back panel using screws(F). STEP 12: STEP 13: Fix wall anchor(E) onto the wall. WALL CAUTION：Always Lift Your Furniture When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break. 74934 Item Code: 2022-07-20...
-
Page 13: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
