ASSEMBLY INSTRUCTION

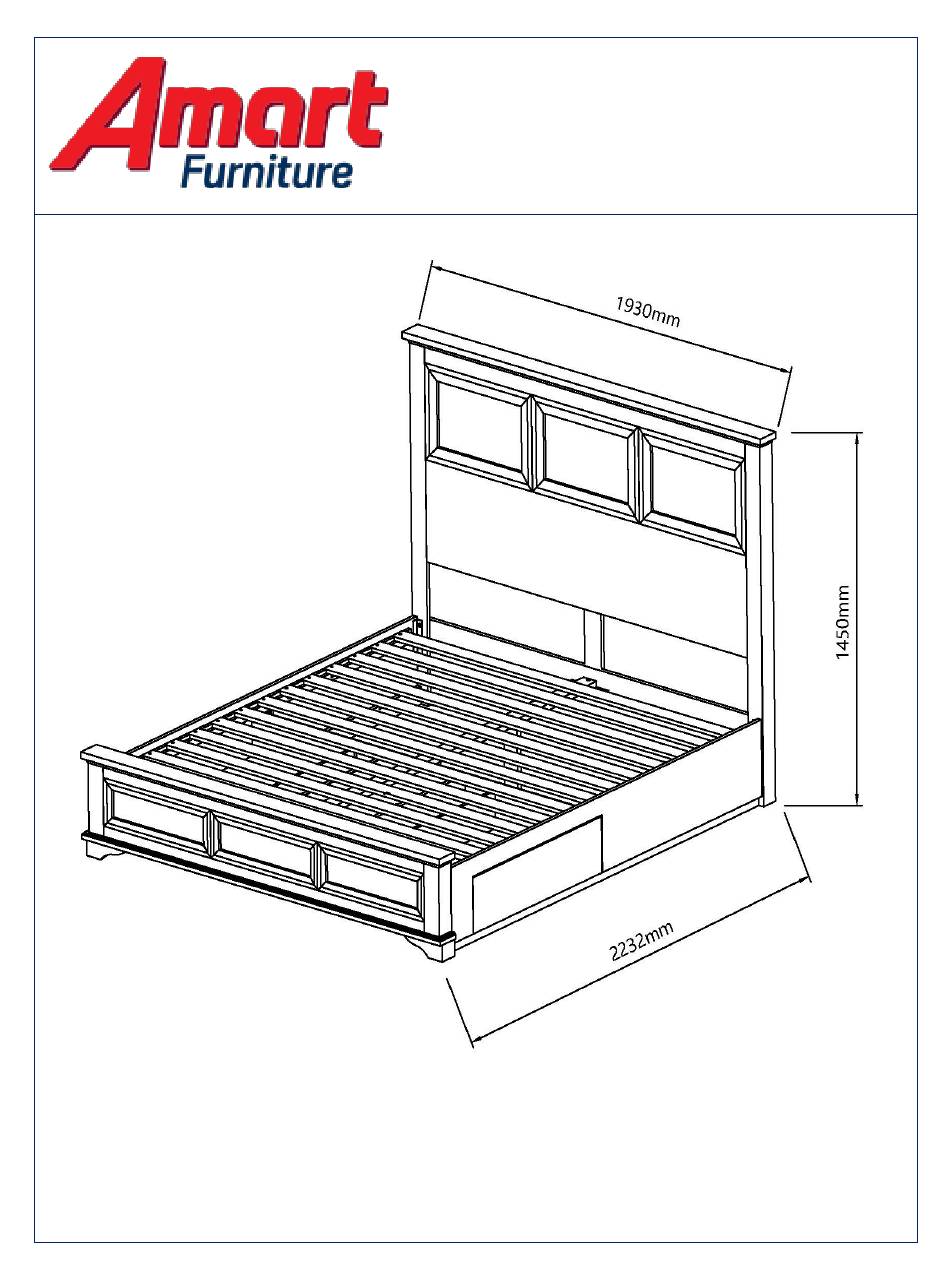

MARSEILLE KING BED
ITEM CODE 75915
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351 084
1
ITEM CODE 75915
Advertisement
Related Manuals for Amart Furniture MARSEILLE 75915
Summary of Contents for Amart Furniture MARSEILLE 75915
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of use 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST DRAWER LEFT SIDE RUNNER BRACE HEADBOARD DRAWER RIGHT SIDE COVER BOARD FOOTBOARD DRAWER BACK CENTRE RAIL SIDERAIL DRAWER BASE SUPPORT LEG SIDERAIL DRAWER SUPPORT BAR SUPPORT LEG SLATS DRAWER FRONT RUNNER BRACE ITEM CODE 75915... - Page 4 • Attach drawer sides (13)(14) to drawer front (12) and drawer back (15) with screws (G). • Put drawer base (16) into groove of the boards (13)(14) and (12). ITEM CODE 75915...
- Page 5 • Attach drawer support bar (17) to the middle of the drawer base (16) with screws (G). • Fix drawer base(16) to drawer front (12) and back (15) with screws (F). ITEM CODE 75915...
- Page 6 • Attach runner brace (6) to runner brace (7) with screws (G). • Take care to keep the four brace pieces level. ITEM CODE 75915...
- Page 7 • Attach siderail (3)(4) to runner brace frame with flat washer (B) and bolt (A) . • Tighten with allen key (D) ITEM CODE 75915...
- Page 8 • Attach footboard (2) to siderails (3)(4) with flat washer (B), lock washer (C) and bolt (A) . • Tighten with allen key (D) ITEM CODE 75915...
- Page 9 • Attach headboard (1) to siderails (3)(4) with flat washer (B), lock washer (C) and bolt (A). • Tighten with allen key (D) ITEM CODE 75915...
- Page 10 • Attach cover board (8) to drawer brace (6)(7). ITEM CODE 75915...
- Page 11 • Fix cover board (8) to drawer brace (6) (7) with screws (E) ITEM CODE 75915...
- Page 12 • Attach support legs (10)(11) to centre rail (9) with screws (G) • Pay attention to the direction of support leg (11) • Attach centre rail (9) and foot (11) to headboard (1), footboard (2) and runner brace frame with flat washer (B) and bolt (A). •...
- Page 13 • Push the runner part (a) on the brace board so that they are closely connected with part (b). Mind your fingers!!! • Extend the runners (d) on the drawer sides (12)(13) and insert into the brace board runners (a) and (b). •...
- Page 14 H . M 4X 30 MM 26 PCS • Attach slats (5) to siderails (3)(4) using screws (H). • Use Screwdriver or Power Drill on Low Speed. ITEM CODE 75915...
- Page 15 ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving /Relocating - Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break. ITEM CODE 75915...
-
Page 16: Care And Maintenance
Care and maintenance • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
