Imported by Amart Furniture Pty Ltd,
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

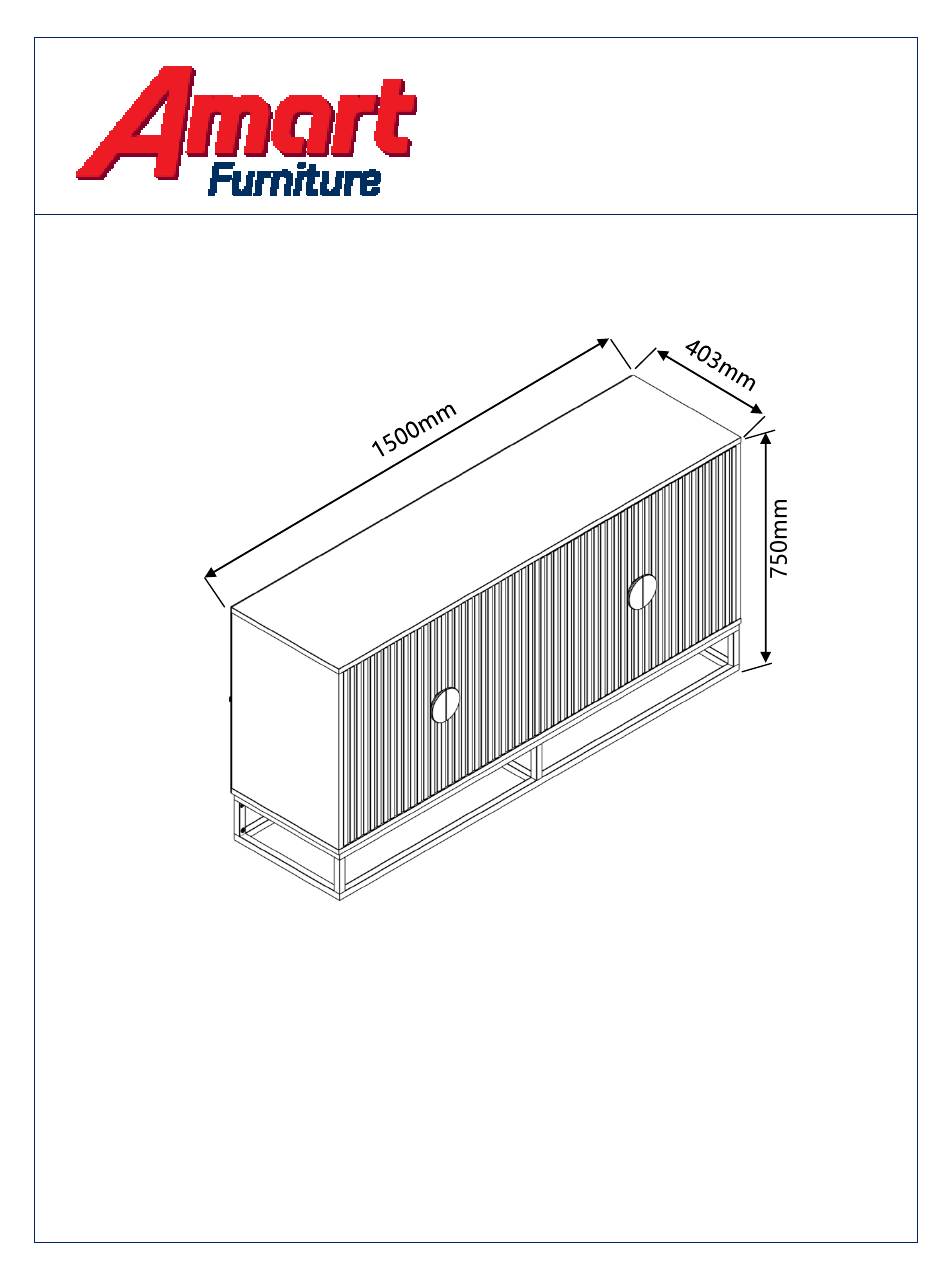

ASSEMBLY INSTRUCTION

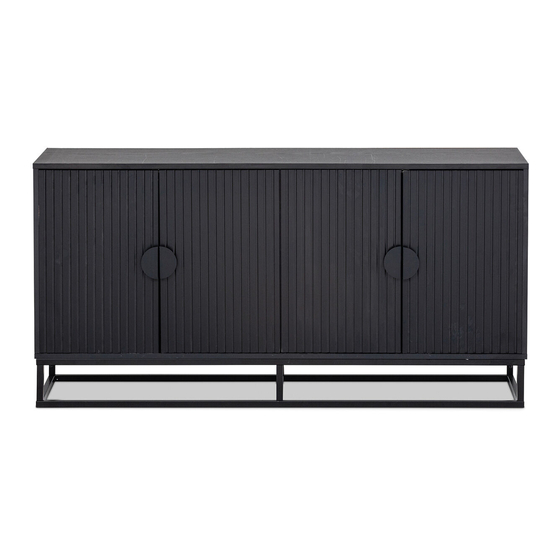

Valdis Buffet
ITEM CODE 73830
Imported by Amart Furniture Pty Ltd, Brisbane,Qld, Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
,Brisbane,
Qld, Australia.
1
ITEM CODE
73830
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture 73830
Summary of Contents for Amart Furniture 73830
- Page 1 ITEM CODE 73830 Imported by Amart Furniture Pty Ltd, Brisbane,Qld, Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, ,Brisbane, Qld, Australia.
-
Page 2: Before You Start
ALLOW 60 MINITES 2 PEOPLE REQUIRED together. However if you choose to use a power drill it must be used on LOW SPEED (LOW TORQUE) as too much pressure could damage the product ITEM CODE 73830... -
Page 3: Parts List
PARTS LIST Door Handle Left Door Bottom Board Support Bar Right Door Middle Board Top Board Frame Left Shelf Side Board Frame Right Shelf Side Board Back Board ITEM CODE 73830... - Page 4 A. Ø15X12mm C. Ø8X40 D. M5X50 B. M6X39mm CX20 BX14 AX14 F. M3.5X15 G. M4*14 E. M3.5*16mm GX28 FX40 M. M6X15mm P. L 1496mm MX16 ITEM CODE 73830...
- Page 5 STEP:1 Insert dowel（C）to side board（4、5） C. Ø8X40 STEP:2 Fix cam pin（B）to side board（4、5） B. M6X34mm ITEM CODE 73830...
- Page 6 STEP:3 Insert dowel （C）to shelf board（8、9） C. Ø8X40 and middle board（7） CX12 STEP:4 Fix cam pin（B）to middle board（7） B. M6X39mm ITEM CODE 73830...
- Page 7 STEP:5 Attach shelf board (8)(9) to middle board (7) with the cam locks(A) A. Ø15X12mm STEP:6 Attach side board (4)(5) to shelf board (8)(9) with the cam locks(A) A. Ø15X12mm ITEM CODE 73830...
- Page 8 STEP:7 Fix door catch (I) to top board (3) with E. M3.5*16mm screw (E) STEP:8 Fix cam pin（B）to top board（3） B. M6X39mm ITEM CODE 73830...
- Page 9 STEP:9 A. Ø15X12mm Attach top board (3) to the body with cam locks (A) STEP:10 Attach bottom board (6) to the body with screws (D) D. M5X50 ITEM CODE 73830...
- Page 10 STEP:11 Attach frame (13) to bottom board (6) M. M6X15mm with bolt (M) STEP:12 Fix support bar (2) to frame (13) with M. M6X15mm bolt (M) ITEM CODE 73830...
- Page 11 STEP:13 Attach frame (14) to the body with bolt (M) M. M6X15mm STEP:14 Join back board (10) with filler(P). P. L 1496mm ITEM CODE 73830...
- Page 12 STEP:15 Attach back board (10) to the body with screws (G) G. M4*14 GX28 STEP:16 Fix stopper (J) to door board (11)(12) F. M3.5X15 with screws (F) ITEM CODE 73830...
- Page 13 STEP:17 F. M3.5X15 FX16 Fix hinge (K)(L) to door board (11)(12) with screws (F) STEP:18 Fix handle (1) to door board (11)(12) with screws (H) ITEM CODE 73830...
- Page 14 STEP:19 Attach door (11)(12) to the body with screws (F) F. M3.5X15 FX16 ITEM CODE 73830...
- Page 15 ASSEMBLY COMPLETE ITEM CODE 73830...
- Page 16 4. Make sure that the Mounting Plates are firmly attached to the wall and furniture and that the Wall Strap is snug. HARDWARE Mounting Plate x 2 Wall Strap x 1 Large Screw x2 Small Screw x2 TEM ICODE 73830...
- Page 17 finish damage if not cleaned immediately. • Use a clean, soft, dry, lint free absorbent cloth to clean your furniture. Do not use any detergent as they may contain ingredients that may react and damage the finish. TEM ICODE 73830...
