Quick Links
Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2021-06-22
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

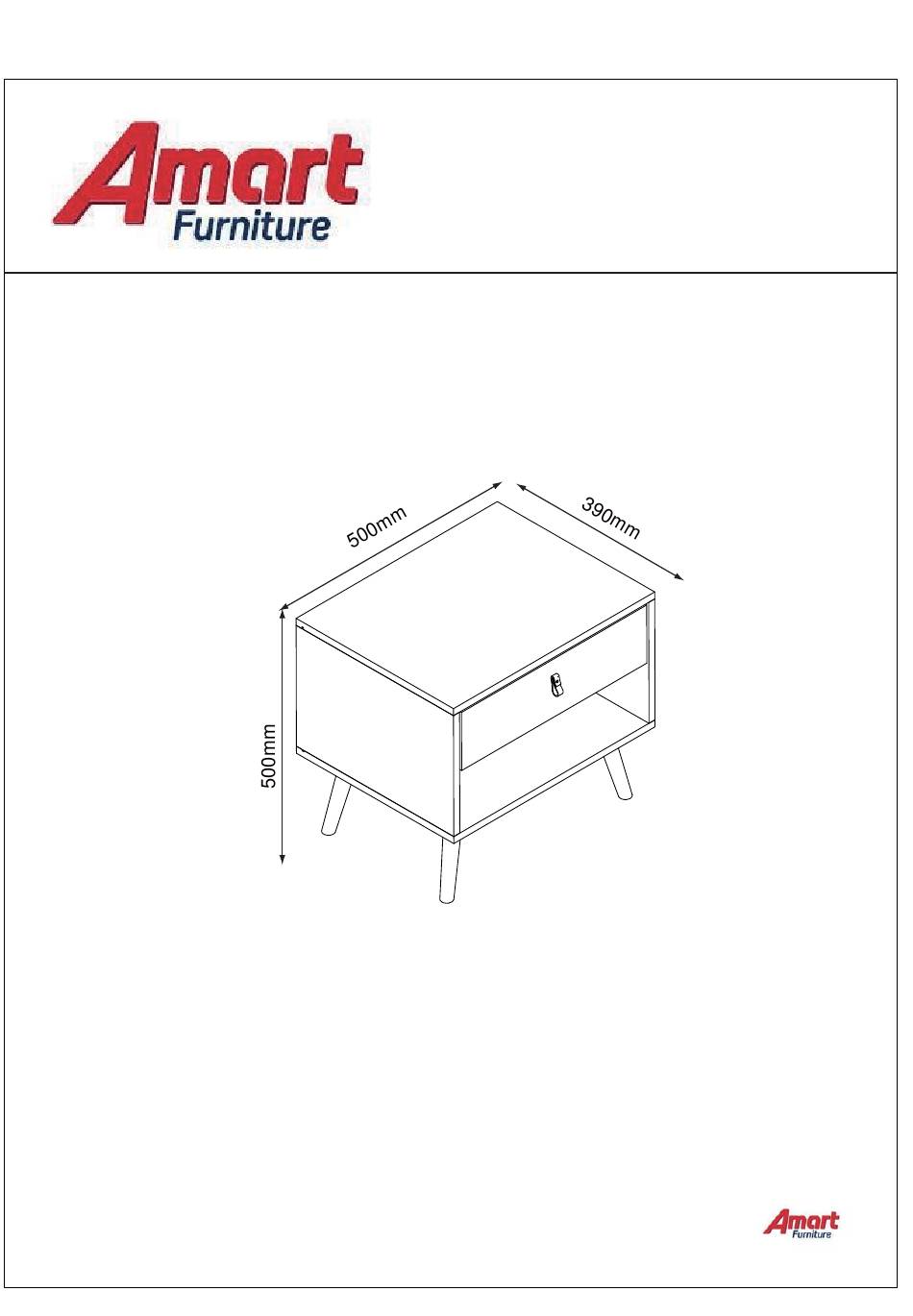

ASSEMBLY INSTRUCTION
MORGANA LAMP TABLE
ITEM CODE 72879
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1-16
Item Code: 72879
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture MORGANA 72879
Summary of Contents for Amart Furniture MORGANA 72879
- Page 1 ITEM CODE 72879 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Pty Ltd, Qld, Brisbane Australia.
- Page 2 2021-06-22 Item Code: 72879 2-16...
- Page 3 2021-06-22 3-16 Item Code: 72879...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2021-06-22 Item Code: 72879 5-16...
- Page 6 (MM) 388x260x15 388x260x15 500x390x15 474x267x2.7 500x390x15 330x90x15 330x90x15 411x90x15 419x322x2.7 460x125x15 Item Code: 72879 6-16 2021-06-22...
- Page 7 1xCL 1xCR STEP 1: Fix runners (CL)(CR) to panels (1)(2) with screws (D). STEP 2: Attach panels (1)(2) to panel(3) with dowel(C) and screws (E). Item Code: 72879 2021-06-22 7-16...
- Page 8 Insert back panel and dowel(C) as shown. STEP 3: STEP 4: Fix cam pin (A) to panels (5). 2021-06-22 Item Code: 72879 8-16...
- Page 9 Attach panels (1)(2) to panel(5) with dowel(C) and cam lock (B). STEP 5: Hx20 STEP 6: Fix metal plate(F) to panel(3) with screws (H). Item Code: 72879 2021-06-22 9-16...
- Page 10 STEP 7: Fix legs (G) to panel(3). STEP 8: Fix part (J) to panel(4). Item Code: 72879 2021-06-22 10-16...
- Page 11 1xDL 1xDR STEP 9:Install drawers as shown in diagram. 1A:Fix cam lock (A) and handle(I) to 2:Join side panels (6)(7) and back panel (10). panel(8) with screws (E). 3A:Put bottom panel (9) into groove 4:Install runner(DR)(DL) to the bottom of drawer of panel(6)(7)and (8).
- Page 12 STEP 10: Assemble drawers to the body. ASSEMBLY COMPLETE. Item Code: 72879 2021-06-22 12-16...
- Page 13 STEP 1: Fix bracket to back panel using screws M3.5*14MM . into bracket. NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
- Page 14 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 14-16...
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 16: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
