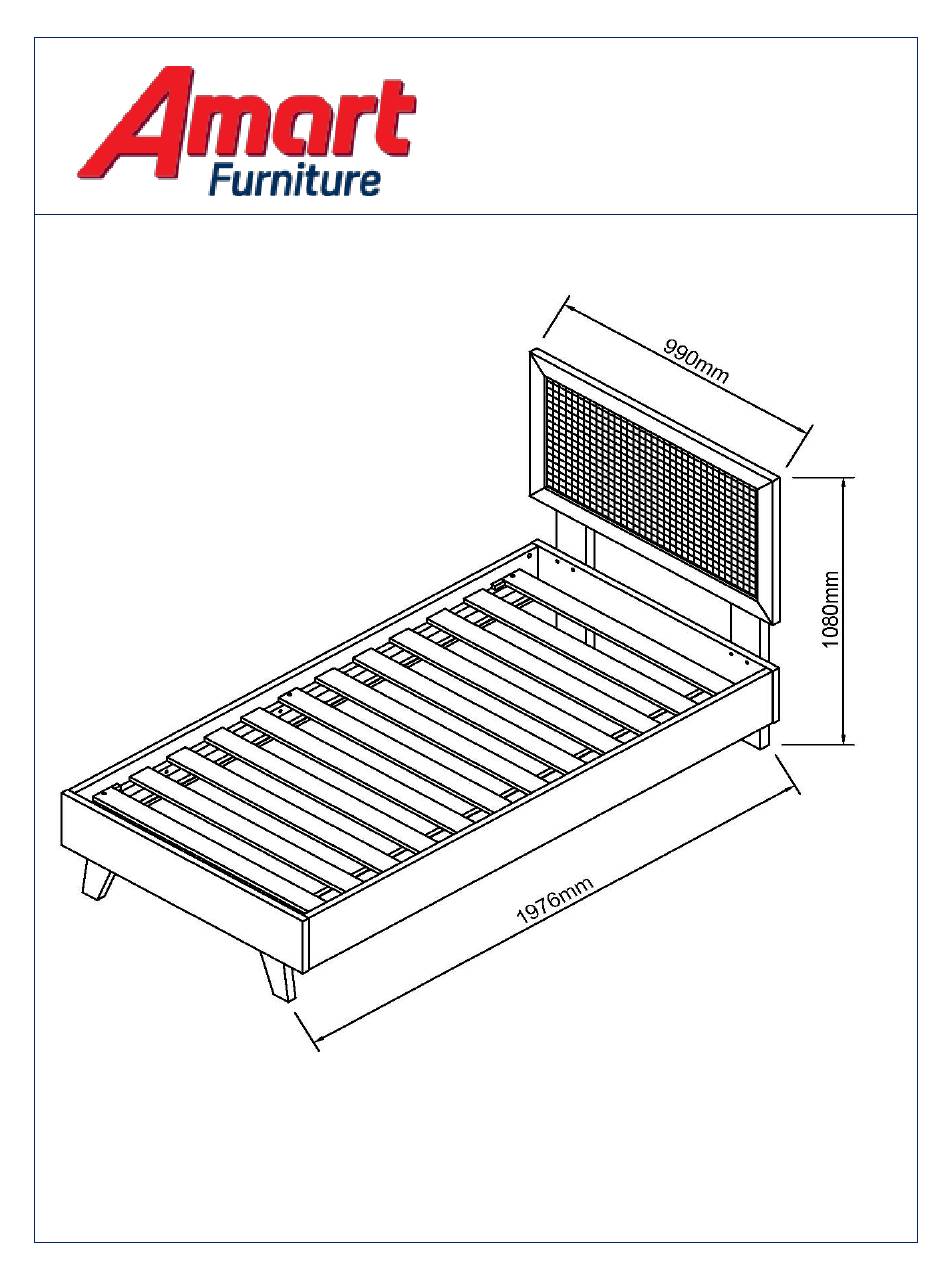

ASSEMBLY INSTRUCTION
NARA SINGLE BED
ITEM CODE 75897
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
1
ITEM CODE 75897
Advertisement
Related Manuals for Amart Furniture NARA 75897
Summary of Contents for Amart Furniture NARA 75897
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd,Brisbane ,Qld Australia. For any assistance with assembly or for missing parts please phone...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST FOOTBOARD HEADBOARD SUPPORT BOARD FOOTBOARD LEG SLATS FOOTBOARD LEG HEADBOARD SIDE RAIL HEADBOARD LEG SIDE RAIL ITEM CODE 75897... - Page 4 STEP 1: Attach the footboard legs(3)(4) to footboard(2) with bolt (D) and washer (E) using allen key (G). Note that the footboard legs are divided into left and right, please install them as show in the figure. ITEM CODE 75897...
- Page 5 STEP 2: Attach headboard legs (13) to headboard (12) with bolt (D) and washer (E)using allen key (G) STEP 3: Insert dowel (A) to siderails (5)(6) ITEM CODE 75897...
- Page 6 STEP 4: Fix angle irons(F) to siderails (5)(6) with bolt (C) and washer (E) using allen key (G) STEP 5: Attach siderails (5)(6) to footboard (2) with bolt (C) and washer (E) using allen key (G) ITEM CODE 75897...
- Page 7 STEP 6: Attach the headboard support board(8) to siderails (5)(6) with hexagon socket screw (I) and nut (J) using allen key (K) STEP 7: Attach headboard support board(8) to headboard legs (13) with bolt (D) and washer (E) using allen key(G) ITEM CODE 75897...
- Page 8 STEP 8: Attach slats (11) to the existing unit using screws (B). ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving /Relocating - Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break. ITEM CODE 75897...
- Page 9 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
