Amart Furniture VVALDIS 73871 Assembly Instruction Manual

Tall chest
Hide thumbs

Advertisement

Quick Links

Download this manual
Imported by Amart Furniture Pty Ltd,
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

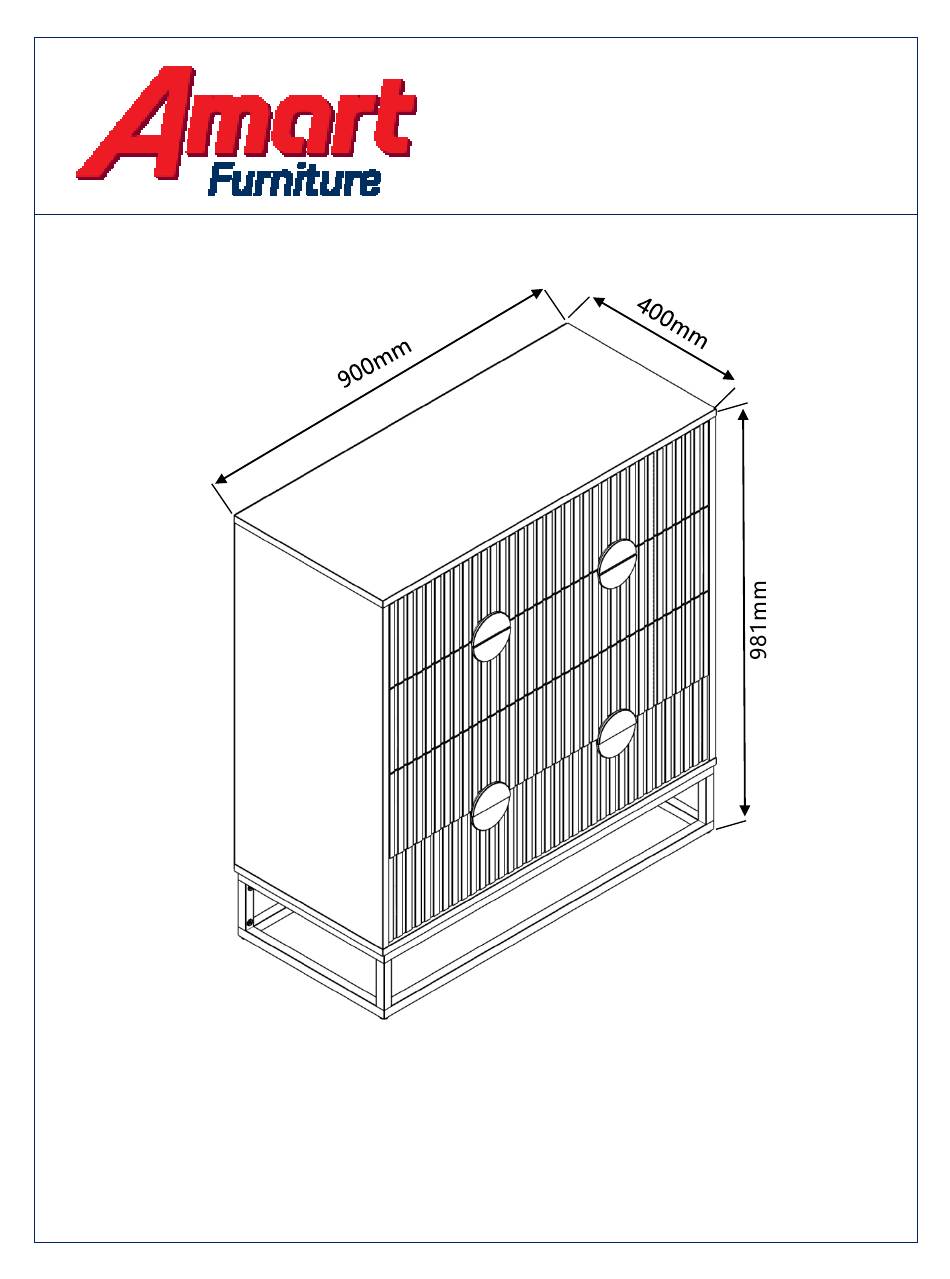

ASSEMBLY INSTRUCTION
VVALDIS TALL CHEST
ITEM CODE
73871
Imported by Amart Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
,Brisbane,
Qld, Australia.
1
ITEM CODE
73871

Advertisement

loading
Need help?

Need help?

Do you have a question about the VVALDIS 73871 and is the answer not in the manual?

Questions and answers

Related Manuals for Amart Furniture VVALDIS 73871

Summary of Contents for Amart Furniture VVALDIS 73871

  • Page 1 ITEM CODE 73871 Imported by Amart Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, ,Brisbane, Qld, Australia.

  • Page 2: Before You Start

    PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.

  • Page 3: Parts List

    PARTS LIST Drawer Handle Drawer Support Bar Back support bar Support Bar Back Board Drawer Bottom Board Top Board Drawer Front Board Drawer Back Board Side Board Drawer Front Board Frame Side Board Frame Drawer Side Board Bottom Board Drawer Side Board ITEM CODE 73871...
  • Page 4 A. Ø15X12mm C. Ø8X40 D. M5X50 B. M6X39mm CX12 BX25 AX25 F. M3.5X15 G. M4*14 E. M4X40mm H. M4*28 EX20 GX32 FX40 HX16 I. L350mm J. L350mm K. L350mm L. L350mm M. M6X15mm MX12 ITEM CODE 73871...
  • Page 5 STEP:1 A. Ø15X12mm 1. Fix cam pin (B) to drawer front board (9). B. M6X39mm 2. Attach drawer side board (11)(12) and support bar (13) to drawer front board (9) with cam locks (A) AX10 BX10 1. Put bottom board (14) into groove of board (9)(11)and STEP:2 (12).
  • Page 6 STEP:3 E. M4X40 F. M3.5X15 J. L350mm L. L350mm EX10 1. Attach the drawer back board (15) with screws (E) 2. Install runner(J)(L) to the bottom of drawer with screws(F). ITEM CODE 73871...
  • Page 7 STEP:4 H. M4*28 Fix handle (1) to the drawer front board (9) with screws (H) ITEM CODE 73871...
  • Page 8 STEP:5 A. Ø15X12mm 1. Fix cam pin (B) to drawer front board (10). B. M6X39mm 2. Attach drawer side board (11)(12) and support bar(13) to drawer front board (10) with cam locks (A) AX10 BX10 1. Put bottom board (14) into STEP:6 groove of board (11)(12)and (10).
  • Page 9 STEP:7 E. M4X40 F. M3.5X15 J. L350mm L. L350mm EX10 1. Attach the drawer back board (15) with screws (E) 2. Install runner(J)(L) to the bottom of drawer with screws(F). ITEM CODE 73871...
  • Page 10 STEP:8 H. M4*28 Fix handle (1) to the drawer front board (10) with screws (H) STEP:9 Insert dowel (C) to side board (4)(5) and back support bar (7) C. Ø8X40 CX12 ITEM CODE 73871...
  • Page 11 STEP:10 I. L350mm F. M3.5X15 Install runner(I)(K) to K. L350mm the side board (4)(5) with screws (F) FX24 STEP:11 B. M6X39mm Fix cam pin (B) to the top board (3) ITEM CODE 73871...
  • Page 12 STEP:12 Attach the side board (4)(5) to the top board (3) with cam locks A. Ø15X12mm (A). STEP:13 A. Ø15X12mm Attach the back support bar (7) to the top board (3) with cam locks (A). ITEM CODE 73871...
  • Page 13 STEP:14 D. M5X50 Attach the bottom board (6) to the body with the screws (D) STEP:15 Attach frame (16) to the bottom board (6) M. M6X15mm with bolt (M) ITEM CODE 73871...
  • Page 14 STEP:16 Fix support bar (2) to frame (16) with bolt (M) M. M6X15mm STEP:17 Attach frame (17) to the body with bolt (M) M. M6X15mm ITEM CODE 73871...
  • Page 15 STEP:18 Attach back board (8) to the body with screws (G) G. M4*14 GX32 STEP:19 ITEM CODE 73871...
  • Page 16 STEP:20 STEP:21 ITEM CODE 73871...
  • Page 17 STEP:22 ASSEMBLY COMPLETE ITEM CODE 73871...
  • Page 18 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
  • Page 19 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
