ASSEMBLY INSTRUCTION

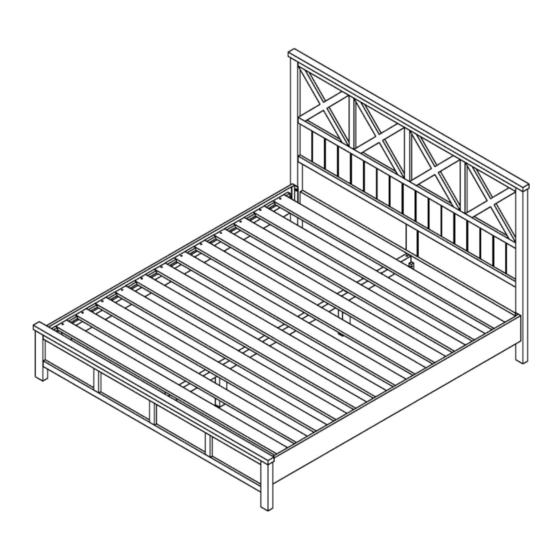

NORMANDY KING BED
ITEM CODE 75819
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture , Customer Service Free call 1800 351
084
1
ITEM CODE 75819
Advertisement
Table of Contents
Related Manuals for Amart Furniture NORMANDY 75819
Summary of Contents for Amart Furniture NORMANDY 75819
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of use 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST 1 HEADBOARD 2 SIDERAILS 3 SLATS (1836mm*88mm) 4 FOOTBOARD 5 CENTRE RAIL 6 SUPPORT LEGS B. BOLT 5/16''X60MM A. BOLT 5/16''X32MM C. ALLEN KEY D. SCREW 4X30MM 2PCS 1PCS 24PCS 8PCS E. SCREW 4X40MM G. LOCK WASHER F. FLAT WASHER 2PCS 10PCS 8PCS... -
Page 4: Items Required
ITEMS REQUIRED A. BOLT 5/16''X32MM G. LOCK WASHER F. FLAT WASHER C. ALLEN KEY 1PCS 8PCS 8PCS 8PCS • Attach side rail ( 2 ) to headboard (1) and footboard (4) using flat washer (f), lock washer (g) and bolts (a). •... - Page 5 ITEMS REQUIRED B. BOLT 5/16''X60MM F. FLAT WASHER C. ALLEN KEY 1PCS 2PCS 2PCS • Attach support legs (6) to centre rail (5) with flat washer (f) and bolts (b) • Tighten with allen key (c) ITEM CODE 75819...
- Page 6 ITEMS REQUIRED E. SCREW 4X40MM 2PCS • Attach centre rail (5) to head board (1) and foot board (4) using screw (e). • Use Screwdriver or Power Drill on Low Speed. ITEM CODE 69583...
- Page 7 ITEMS REQUIRED D. SCREW 4X30MM 24PCS • Attach slats (3) to siderail (2) using screws (d). • Use Screwdriver or Power Drill on Low Speed. ITEM CODE 75819...
- Page 8 ASSEMBLY IS COMPLETE CAUTION Always Lift Your Bed When Moving /Relocating - Do Not Drag. Dragging Can Cause The Centre Support Legs To Bend/Break. ITEM CODE 75819...
- Page 9 Care and maintenance • A multi-step finish is applied to all our furniture, but all wood comes from nature. Because of this, there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
