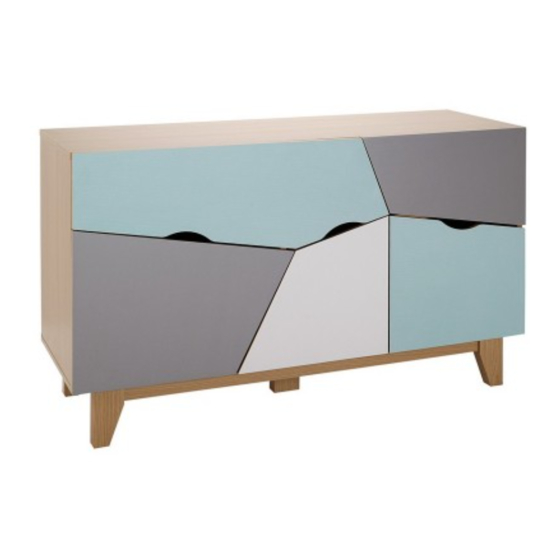

Multicoloured Sideboard
Assembly Instructions
Dimensions
Width - 120cm
Depth - 42cm
Height - 74cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Please keep for future reference
-
-
453/4785
Version 1 Date: 22/09/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Home Multicoloured Sideboard 453/4785
Summary of Contents for Argos Home Multicoloured Sideboard 453/4785
- Page 1 Multicoloured Sideboard Assembly Instructions 453/4785 Please keep for future reference Dimensions Width - 120cm Depth - 42cm Height - 74cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 1 Date: 22/09/15...
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for Pilot holes for guidance only guidance only Pilot holes for guidance only Left panel Right panel...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. (This screw is included in (This screw is included in the runners bag) the door hinges bag) - Page 5 Assembly Instructions Step 1 2 Holes upside Attaching runners and hinges Position the Left out- side runners in from front edge of the Left panel and Middle panel Use Screws to fix the Left outside runners onto the Left panel Pilot holes for and Middle panel runner position...
- Page 6 Assembly Instructions Step 1 - continued Screw Locking pins into the Left panel Insert locking pins Note: as far as shown. Do not over tighten. Use Screws to fix the Door hinges ‘back plates’ onto the Left panel Insert Dowels into the Left panel and Middle...
- Page 7 Assembly Instructions Step 2 Attaching the middle shelf panel Use Screws to fix Left shelf onto the Middle panel Insert Dowels into the Left shelf Use Screws to fix Middle right panel onto the Left shelf Use Screws to fix Right shelf onto the Middle right panel...
- Page 8 Assembly Instructions Step 2 - continued Use Screws to fix Middle left panel onto the Left shelf Step 3 Attaching the left and right panel Carefully locate the Right panel onto the Left shelf Insert 2 Locking nuts into the Left shelf Use a screwdriver to turn Locking nuts clockwise...
- Page 9 Assembly Instructions Step 3 - continued Carefully locate the Left panel onto the Right shelf Insert 2 Locking nuts into the Right shelf Use a screwdriver to turn Locking nuts clockwise to lock. Step 4 Attaching top panel Screw Locking pins into the Top panel Insert locking pins Note:...
- Page 10 Assembly Instructions Step 4 - continued Carefully locate the Top panel onto the unit. Insert 6 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise to lock. Step 5 Attaching bottom panel Insert Dowels into the Front bottom panel Position Legs onto the Front bottom panel...
- Page 11 Assembly Instructions Step 5 - continued Use 14 Screws to fix Front bottom panel Legs and Bottom support onto the Bottom panel Use 8 Screws to fix Bottom panel onto the unit.
- Page 12 Assembly Instructions Step 6 Fixing back panels Unfinished back surface Attach Small back panel and Large back panel using nails Important: The unit MUST be ‘square’ when back is attached. Step 7 Drawer assembly Screw Locking pins into the Large drawer front and Small drawer front Insert locking pins Note:...
- Page 13 Assembly Instructions Step 7 - continued Fix Drawer right Drawer left Drawer support on to Large drawer front Small drawer front Insert 9 Locking nuts into the Drawer right Drawer left Drawer support Use a screwdriver to turn Locking nuts clockwise to lock.
- Page 14 Assembly Instructions Step 7 - continued Use Screws to fix the Left inside runners Right inside runners onto the unit. Step 8 Inserting drawers With help, carefully stand unit upright. Warning: The unit is heavy. Lift with care. Slide the assembled drawers fully onto runners.
- Page 15 Assembly Instructions Step 9 Attaching hinges to doors Fix 6 Door hinges Left door panel , Middle door panel and Right door panel using Screws Tear off the protective backing from the Door Pads Carefully stick the Door pads onto the Left door panel , Middle door panel...
- Page 16 Assembly Instructions Step 11 Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, Door re-tighten Screws To move doors in or out: loosen screw shown and move doors to suit. Re-tighten screws.
- Page 17 Assembly Instructions Step 12 Finishing the unit It would be useful Note: to ask someone to help you at this stage. With help, place the unit in the intended position. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
