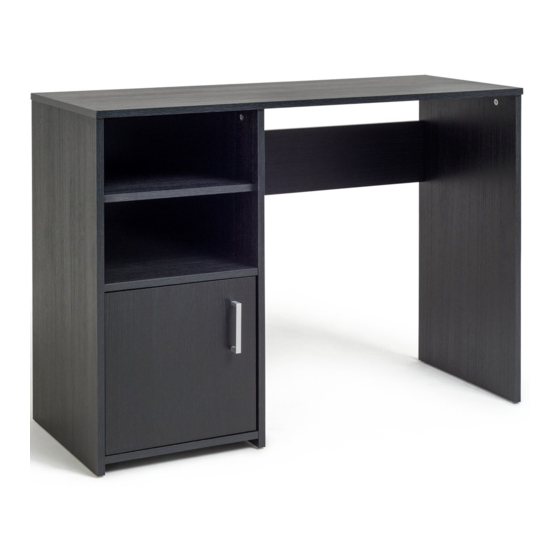

Lawson - Desk
Assembly Instructions - Important: Retain these instructions
In order to prevent overturning, this product must be
used with the 2 wall attachment devices provided
Dimensions
Width - 100cm
Depth - 39.5cm
Height - 73.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
for future reference
WARNING!
More help is available throughout this
booklet by scanning in the QR codes
or typing in the links
402/4439
412/6416
412/3392
797/7916
MADE IN
BRITAIN
Issue 8 - 05/10/17
