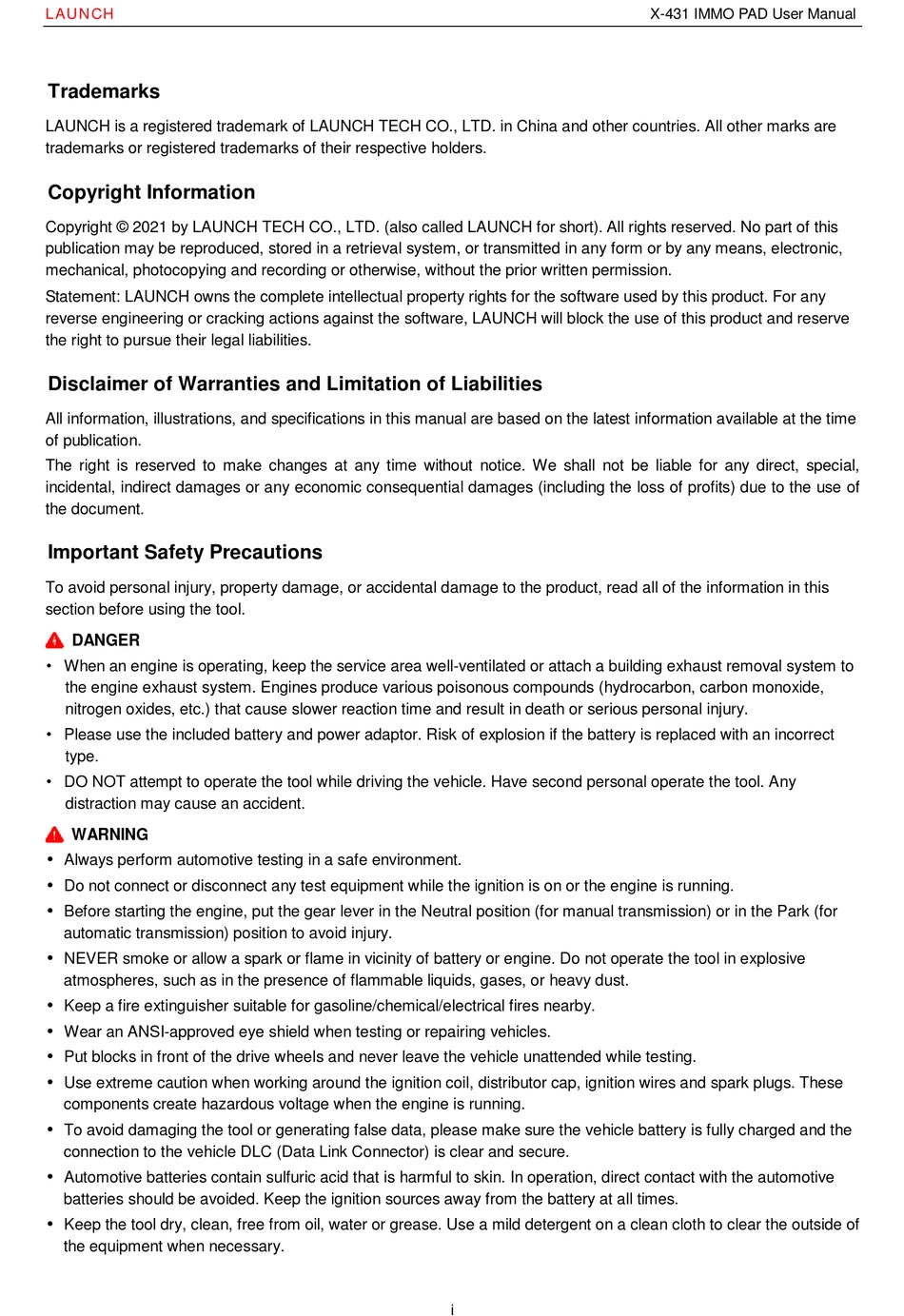

LAUNCH
Trademarks
LAUNCH is a registered trademark of LAUNCH TECH CO., LTD. in China and other countries. All other marks are
trademarks or registered trademarks of their respective holders.
Copyright Information
Copyright © 2021 by LAUNCH TECH CO., LTD. (also called LAUNCH for short). All rights reserved. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying and recording or otherwise, without the prior written permission.
Statement: LAUNCH owns the complete intellectual property rights for the software used by this product. For any
reverse engineering or cracking actions against the software, LAUNCH will block the use of this product and reserve
the right to pursue their legal liabilities.
Disclaimer of Warranties and Limitation of Liabilities
All information, illustrations, and specifications in this manual are based on the latest information available at the time
of publication.
The right is reserved to make changes at any time without notice. We shall not be liable for any direct, special,
incidental, indirect damages or any economic consequential damages (including the loss of profits) due to the use of
the document.
Important Safety Precautions
To avoid personal injury, property damage, or accidental damage to the product, read all of the information in this
section before using the tool.
DANGER
• When an engine is operating, keep the service area well-ventilated or attach a building exhaust removal system to
the engine exhaust system. Engines produce various poisonous compounds (hydrocarbon, carbon monoxide,
nitrogen oxides, etc.) that cause slower reaction time and result in death or serious personal injury.
• Please use the included battery and power adaptor. Risk of explosion if the battery is replaced with an incorrect
type.
• DO NOT attempt to operate the tool while driving the vehicle. Have second personal operate the tool. Any
distraction may cause an accident.
WARNING
 Always perform automotive testing in a safe environment.
 Do not connect or disconnect any test equipment while the ignition is on or the engine is running.
 Before starting the engine, put the gear lever in the Neutral position (for manual transmission) or in the Park (for
automatic transmission) position to avoid injury.
 NEVER smoke or allow a spark or flame in vicinity of battery or engine. Do not operate the tool in explosive
atmospheres, such as in the presence of flammable liquids, gases, or heavy dust.
 Keep a fire extinguisher suitable for gasoline/chemical/electrical fires nearby.
 Wear an ANSI-approved eye shield when testing or repairing vehicles.
 Put blocks in front of the drive wheels and never leave the vehicle unattended while testing.
 Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs. These
components create hazardous voltage when the engine is running.
 To avoid damaging the tool or generating false data, please make sure the vehicle battery is fully charged and the
connection to the vehicle DLC (Data Link Connector) is clear and secure.
 Automotive batteries contain sulfuric acid that is harmful to skin. In operation, direct contact with the automotive
batteries should be avoided. Keep the ignition sources away from the battery at all times.
 Keep the tool dry, clean, free from oil, water or grease. Use a mild detergent on a clean cloth to clear the outside of
the equipment when necessary.
i
X-431 IMMO PAD User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-431-IMMO Pad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Launch X-431-IMMO Pad

Summary of Contents for Launch X-431-IMMO Pad

  • Page 1 Copyright Information Copyright © 2021 by LAUNCH TECH CO., LTD. (also called LAUNCH for short). All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying and recording or otherwise, without the prior written permission.
  • Page 2 LAUNCH X-431 IMMO PAD User Manual  Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.  Store the tool and accessories in a locked area out of the reach of children.  Do not use the tool while standing in water.

  • Page 3: Table Of Contents

    LAUNCH X-431 IMMO PAD User Manual TABLE OF CONTENTS 1 Introduction ................................1 1.1 Product Profile............................... 1 1.2 Technical Specifications............................1 1.3 Package List................................2 2 Components & Controls ............................3 2.1 Display Tablet ............................... 3 2.2 SmartLink C Device .............................. 4 3 Initial Setup .................................
  • Page 4 LAUNCH X-431 IMMO PAD User Manual 6.5 Tire Pressure Monitor System Reset ........................45 6.6 Gear Learning ..............................45 6.7 Injector Coding ..............................46 6.8 Battery Maintenance System Reset ........................46 6.9 Diesel Particulate Filter (DPF) Regeneration ...................... 46 6.10 Electronic Throttle Position Reset ........................46 6.11 Gearbox Matching .............................
  • Page 5 LAUNCH X-431 IMMO PAD User Manual 9.4.4 Battery Tester ............................... 56 9.4.5 Videoscope ..............................56 9.5 TeamViewer ................................ 56 9.6 Wireless Upgrade..............................56 9.7 File Explorer ................................ 57 9.8 Gallery ................................. 57 10 J2534 Reprogramming Using SmartLink C ......................58 10.1 As a Local J2534 PassThru Device ........................

  • Page 6: Introduction

     Local Diagnose: VINscan quick test and manual diagnosis are available. Diagnosis functions include: Read DTCs, Clear DTCs, Read Data Stream, Special Functions etc.  Remote Diagnosis: This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.

  • Page 7: Package List

    LAUNCH X-431 IMMO PAD User Manual Operating Temp. 0℃ ~ 50℃ -20℃ ~ 70℃ Storage Temp. 1.3.2 VCI (Vehicle Communication Interface) Size 204mm x 110mm x 45mm Working voltage DC 9 ~36V Memory 256MB Hard disk ≤ 6W Typical power consumption ...

  • Page 8: Components & Controls

    LAUNCH X-431 IMMO PAD User Manual 2 Components & Controls There are two main components to the X-431 IMMO PAD system:  Display Tablet – the central processor and monitor for the system (See Chapter 2.1).  VCI – the device for accessing vehicle data (See Chapter 2.2).

  • Page 9: Smartlink C Device

    LAUNCH X-431 IMMO PAD User Manual To turn the tablet on/off with long press, or lock the screen with short Power/Screen Lock Button press. USB Port Reserved for add-on modules and other devices with similar port. Adjust the volume. Volume Buttons *Note: Press and hold [POWER] and [VOL -] key to capture the current screenshot.
  • Page 10 LAUNCH X-431 IMMO PAD User Manual Touch Screen Connect the SmartLink C device to the Internet via the crossover LAN/WAN Port cable. Connect the SmartLink C device to the vehicle’s DLC (Data Link OBD-16 Diagnostic Connector Connector) port via the OBD II extension cable.

  • Page 11: Initial Setup

    LAUNCH X-431 IMMO PAD User Manual 3 Initial Setup 3.1 Charging the Tablet *Notes: • Only use the included power adaptor to recharge the tablet. Use of any other adaptor will damage the tool. We assume no responsibility for damage or loss resulting from using other similar adaptors other than the specified one.

  • Page 12: Changing Language

    LAUNCH X-431 IMMO PAD User Manual light intensity automatically. Alternatively, you can also adjust it manually. 1. On the home screen, tap Other Modules -> Built-in apps -> Tablet Settings -> Display -> Brightness level. 2. Drag the slider to adjust it.

  • Page 13: Getting Started

    LAUNCH X-431 IMMO PAD User Manual 4 Getting Started 4.1 Register & Update After the tablet is initialized, tap the Login button on the upper right corner of the screen, the following screen will appear: (If you are a new user, follow to proceed.)

  • Page 14: Home Screen

    Local Diagnose Diagnose a vehicle manually. This option aims to help repair shops or technicians launch instant messaging and Remote Diagnose remote diagnosis, making the repair job getting fixed faster. The SmartLink system is powerful remote diagnostics solution developed by LAUNCH.

  • Page 15: Vehicle Menu Layout

    LAUNCH X-431 IMMO PAD User Manual SmartLink B accepting order. • SmartLink B dongle: For service provider or master technician providing technical assistance service. Configure this tool as a professional TPMS (Tire Pressure Monitoring System) TPMS service tool. It provides the ability to activate tire pressure information, program tire pressure sensor and perform the TPMS relearning functions etc.

  • Page 16: Diagnostics Toolbar

    LAUNCH X-431 IMMO PAD User Manual corresponding heavy-duty vehicle models. Store tab: Enable you to renew your subscription and check the order status. Vehicle software logo Search bar: Allow you to quickly locate the desired vehicle model. 4.4 Diagnostics Toolbar The diagnostics toolbar contains a number of buttons that enable various procedures.

  • Page 17: Vehicle Connection

    LAUNCH X-431 IMMO PAD User Manual D. Opel, Volkswagen, Citroen E. Changan F. Hyundai, Daewoo, Kia, Honda, Toyota, Nissan, Mitsubishi, Renault, Opel, BMW, Mercedes-Benz, Mazda, Volkswagen, Audi, GM, Chrysler, Peugeot, Regal, Beijing Jeep, Citroen and other most popular models For commercial vehicles, the DLC is located in the driver’s cab.

  • Page 18: Key Immobilizer & Immobilizer Programming

    LAUNCH X-431 IMMO PAD User Manual 5 Key Immobilizer & Immobilizer Programming An immobilizer is an anti-theft mechanism that prevents a vehicle’s engine from starting unless the correct ignition key or other device is present. Most new vehicles have an immobilizer as standard equipment. An important advantage of this system is that it doesn’t require the car owner to activate it since it operates automatically.

  • Page 19: Immobilizer Operations

    LAUNCH X-431 IMMO PAD User Manual 5.1.2 Immobilizer operations Here we take the BMW for example to demonstrate how to perform the functions of key adding and all lost for BMW CAS4/CAS4+ Anti-theft system module. 1) Tap IMMO and select BMW to enter the software.
  • Page 20 LAUNCH X-431 IMMO PAD User Manual 4) If you don't know the type of the Anti-Theft System, tap Intelligent Mode to enter. 5) Tap CAS4/CAS4+ Anti-Theft System, the following screen will appear: 6) Tap Preprocessing to perform Read Anti-Theft data, Key Matching and more. If it has already been preprocessed, here you can perform the relevant functions.
  • Page 21 LAUNCH X-431 IMMO PAD User Manual 8) After preprocessing succeeded, tap OK. 9) Return to the function menu and tap Key Learning. 10) After the key information successfully read, select the unused key position and tap Key Generated By Ignition Switch.

  • Page 22: Immobilizer Programming (Immo Prog)

    LAUNCH X-431 IMMO PAD User Manual 13) After the dealer key is successfully generated, please try to start the vehicle. 14) Now the key matching is finished and the new key is ready for use. 5.2 Immobilizer Programming (IMMO PROG) The X-PROG 3 is required when performing this operation.

  • Page 23: Diagnosis

    LAUNCH X-431 IMMO PAD User Manual 6 Diagnosis 6.1 Intelligent Diagnose Through simple Wi-Fi communication between the tablet and VCI, you can easily get the VIN (Vehicle Identification Number) information of the currently identified vehicle. Once the VIN is successfully identified, the system will retrieve it from the remote server and then guide you to vehicle information page without performing the step-by-step manual menu selection.
  • Page 24 • Tap to launch the VIN recognition module. Place the VIN inside the viewfinder rectangle to scan it. The most recognizable location for this number is in the top left corner on the vehicle’s dashboard. Other locations include the driver’s door or post, and the firewall under the hood.

  • Page 25: Local Diagnose

    LAUNCH X-431 IMMO PAD User Manual 6.2 Local Diagnose Tap Local Diagnose to enter the vehicle selection page. 2 approaches are provided for you to access the vehicle diagnostic software. Choose any one of the following ways: VINSCAN enables you to access it more quickly.
  • Page 26 LAUNCH X-431 IMMO PAD User Manual Input the VIN, and tap OK, the tablet will automatically identify the vehicle model and directly navigate to the diagnostic function selection menu. Tap a corresponding diagnostic software logo, and then follow the on-screen instruction to access the diagnostic software.

  • Page 27: Health Report (Quick Test)

    LAUNCH X-431 IMMO PAD User Manual 5). Turn the ignition key to ON: Set the ignition switch to on. 6.2.1 Health report (Quick Test) This function varies from vehicle to vehicle. It enables you to quickly access all the electronic control units of the vehicle and generate a detailed report about vehicle health.
  • Page 28 LAUNCH X-431 IMMO PAD User Manual *Note: Diagnostic report is classified into three categories: Pre-Repair report, Post-Repair report and Diagnostic Scan. No matter which type you saved the report as, the report type will be appended as a tag on the upper right corner of the diagnostic report for easier identification.

  • Page 29: System Scan

    LAUNCH X-431 IMMO PAD User Manual • Post indicates DTC status of post-repair. • Pre indicates DTC status of pre-repair. *Note: Before performing this function, please make sure that: • You have saved a pre-repair report of the currently tested vehicle, and •...
  • Page 30 LAUNCH X-431 IMMO PAD User Manual Swipe the screen from the bottom to view the vehicle system on the next page. Tap the target system (take ECM for example) to navigate to the diagnostic function selection screen. *Note: Different vehicle has different diagnostic menus.
  • Page 31 LAUNCH X-431 IMMO PAD User Manual Reports. For details on report operations, please refer to Chapter 10.1 My Report. C. Clear Fault Code This function enables you to erase the codes from the vehicle after reading the retrieved codes from the vehicle and certain repairs have been carried out.
  • Page 32 LAUNCH X-431 IMMO PAD User Manual *Notes: 1. If the value of the data stream item is out of the range of the standard (reference) value, the whole line will display in red. If it complies with the reference value, it displays in blue (normal mode).
  • Page 33 LAUNCH X-431 IMMO PAD User Manual • Value: Switches the current graph display mode to the Value display mode. • Customize: Tap , a pull-down list of the data stream items appears on the screen. Select / deselect the desired items, and then screen will display / remove the waveforms corresponding to these items immediately.
  • Page 34 LAUNCH X-431 IMMO PAD User Manual Record: Tap to start recording diagnostic data. Recorded live data can serve as valuable information to help you in troubleshooting of vehicle problems. to end recording and save it. The saved file follows the naming rule: It begins with vehicle type, and then the product S/N and ends with record starting time (To differentiate between files, please configure the accurate system time).

  • Page 35: Adas Calibration

    Before using this function, users must activate it using the ADAS Activation Card. 6.3 Remote Diagnose 6.3.1 X-431 Remote Diagnose This option aims to help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster. Tap Remote Diagnose on the home screen.
  • Page 36  golo users Once the result matches the keyword, the following screen will appear: Tap Remote Diagnose to launch remote diagnostics directly or follow the steps below to add the partner into the Contacts list. Tap the desired name from the list, the following screen will appear: Tap Add friend, a dialog box pops up: Tap CONFIRM to send your request.
  • Page 37 Ignore to ignore this request. 2. Instant messaging (I/M) operations *Note: The I/M (Instant Messaging) function is open to all users who had Launch’s diagnostic tool equipped with this module. After adding your friends, tap the desired one’s photo to the following figure: Tap the input field and use the on-screen keyboard to enter the text message, and then tap Send to send it.
  • Page 38 LAUNCH X-431 IMMO PAD User Manual Actions Results Request to control the partner’s device remotely to help him diagnose the vehicle. *Notes:  Remote diagnosis has the same diagnostic steps as manual diagnosis.  In process of remote diagnosis, tap the button to send a voice message.
  • Page 39 LAUNCH X-431 IMMO PAD User Manual Tap “Invite remote diagnostic assistant” Choose the desired diagnostic software Wait for partner’s confirmation Start connecting after request confirmed Start Diagnosis Generate diagnostic report Cancel To cancel this operation.
  • Page 40 X-431 IMMO PAD User Manual 4. Launch remote diagnosis (Device-To-PC) Except that the remote diagnosis can be done between different Launch’s diagnostic tools that come loaded with the module, user also can ask for remote control from PC client technician.

  • Page 41: Smartlink Diag

    LAUNCH X-431 IMMO PAD User Manual 3. Tell the partner to input his own official technician account and password, and then tap Login to navigate to the following figure. 4. Tell the partner to check the box Serial number and enter the Serial Number provided by you, and then tap Start remote diagnosis to control your device remotely.
  • Page 42 SmartLink Service Platform for submitting remote repair orders plus a SmartLink A dongle for accessing vehicle data. It supports remote diagnostic services for vehicles that meet CAN / CAN FD / J2534 vehicle diagnostic standards. 1). Launch Service Link Platform: Binds SmartLink C dongles and submits remote repair orders.
  • Page 43 1). Launch Service Link Platform: Binds SmartLink B dongles and accepts orders from SmartLink C. • If the SmartLink B dongle works with the LAUNCH-specific diagnostic tool equipped with SmartLink module, tap SmartLink to add the SmartLink B device and accepts orders on the diagnostic tool.
  • Page 44 LAUNCH X-431 IMMO PAD User Manual 1. Posting remote assistance request 1. Tap SmartLink on the Job menu of the tablet. The tablet automatically logs in the SmartLink system. On-screen buttons: • Logout: Exits the current account from the system.
  • Page 45 LAUNCH X-431 IMMO PAD User Manual *Note: In general, vehicle identification numbers are standardized - all contain 17 characters. VIN characters may be capital letters A through Z and numbers 1 through 0; however, the letters I, O and Q are never used in order to avoid mistakes of misreading.
  • Page 46 LAUNCH X-431 IMMO PAD User Manual 4. After a successful network connection, the SmartLink C screen displays prompt information asking whether to enter the super remote diagnostic mode. Tap Yes, the system will automatically read the vehicle information and connect to the remote diagnosis server.

  • Page 47: Diagnostic History

    LAUNCH X-431 IMMO PAD User Manual The Serial Number and IP address of the current SmartLink C device. The Serial Number and IP address of the connected SmartLink B device. The duration of diagnosis process and package size of sent data/received data.
  • Page 48 LAUNCH X-431 IMMO PAD User Manual A. Feedback Tap certain tested vehicle model to enter the feedback screen. 1) Tap Choose File to open the target folder and choose the desired diagnostic logs. 2) Choose the failure type and fill in the detailed failure description in the blank text box and telephone or email address.

  • Page 49: Special (Reset) Function

    LAUNCH X-431 IMMO PAD User Manual 6 Special (Reset) Function Except that the special functions can be performed from the diagnostic menus (See Chapter 5.2.3) of certain vehicle model, this module provides an easy dial to quickly access the special functions.

  • Page 50: Electronic Parking Brake Reset

    LAUNCH X-431 IMMO PAD User Manual interval depending on the vehicle driving conditions and climate. This function can be performed in the following cases: 1. If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.

  • Page 51: Injector Coding

    LAUNCH X-431 IMMO PAD User Manual 6.7 Injector Coding Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

  • Page 52: Suspension Calibration

    LAUNCH X-431 IMMO PAD User Manual 6.14 Suspension Calibration 1. This function can adjust the height of the body. 2. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

  • Page 53: Software Update

    LAUNCH X-431 IMMO PAD User Manual 7 Software Update This module enables you to update the diagnostic software & App and frequently used software. 7.1 Update Diagnostic Software & APP Go to Software Update on the Job Menu and tap the Car model tab.
  • Page 54 LAUNCH X-431 IMMO PAD User Manual C. Credit Card 1. Tap Renewal on the update page to navigate to the renewal type selection screen. 2. Select Credit Card, and then follow the on-screen instructions to finish the transaction.

  • Page 55: Hd Software Package Purchase/Renewal

    LAUNCH X-431 IMMO PAD User Manual 8 HD Software Package Purchase/Renewal This module allows you extend the tablet to cover the commercial vehicles or renew the subscription of the expiry HD software package. Go to Local Diagnose -> Store, the following screen will appear: Tap HD Package Purchase/Renewal, the following screen will appear: Tap Software List to check which vehicle diagnostic software is included in this package.

  • Page 56: Other Modules

    LAUNCH X-431 IMMO PAD User Manual 9 Other Modules 9.1 ADAS (Calibration) This module enables you to effectively and accurately calibrate a wide range of camera-based & radar-based driver assistance systems, e.g. the front camera for the lane departure warning system, the radar sensor for the ACC (Adaptive Cruise Control) or the camera for adaptive headlights.

  • Page 57: Subscription Renewal Card

    This option is designed to establish a wireless connection between the tablet and the Wi-Fi printer (sold separately) while performing printing operations. The App is compatible with the LAUNCH Wi-Fi Printer (sold separately) and System (external printer). For LAUNCH Wi-Fi printer, follow the steps below to connect the printer.
  • Page 58 LAUNCH X-431 IMMO PAD User Manual Tap Scan to start scanning and select the desired printer hotspot named with X-431PRINTER-XXXX (XXXX stands for 4 characters), and then tap Connect to enter Step 2. Step 2: Join the Wi-Fi printer into LAN: Tap Scan to select the desired local Wi-Fi network from the list, and type in the security password (If it is an open network, password is not required), and then tap Confirm.
  • Page 59 LAUNCH X-431 IMMO PAD User Manual 6. Select the desired Wi-Fi printer from the list. If the chosen Wi-Fi printer hotspot is open, the tablet can connect it directly. If it is encrypted, a password may be required. Refer to the Wi-Fi printer user manual to get the default password.

  • Page 60: Diagnostic Software Clear

    LAUNCH X-431 IMMO PAD User Manual If you already have an account, please enter the user name and password. After inputting, tap Add Immediately to add it as a sub-account. If you have not registered any account, tap Create sub user. Enter the user name and password, and then tap Add Immediately to add it as a sub-account.

  • Page 61: Sensor Simulator

    LAUNCH X-431 IMMO PAD User Manual 9.4.2 Sensor Simulator This module is specially designed to diagnose and simulator vehicle sensor faults quickly and conveniently. It needs to work with the compatible S2-2 Sensorbox (sold separately). For more details, please refer to the User Manual included with the module.

  • Page 62: File Explorer

    LAUNCH X-431 IMMO PAD User Manual 2. Tap Check for updates. Once a newer version is found, follow the on-screen instructions to download and install the update file. 3. Be patient to wait until the update is done. 9.7 File Explorer ES File Explorer is a file and application manager.

  • Page 63: J2534 Reprogramming Using Smartlink C

    • The SmartLink C device is connected to the Internet and has a strong network signal. • The OEM diagnostic software has been installed on the PC. • The LAUNCH's J2534 tool also needs to be installed on the PC. This tool and its associated operation instruction documentation can be downloaded from www.cnlaunch.com.
  • Page 64 LAUNCH X-431 IMMO PAD User Manual...

  • Page 65: Synchronization

    LAUNCH X-431 IMMO PAD User Manual 11 Synchronization You can transfer media files and APK between the tablet and a computer. 1. Connect the tablet to a computer via the included USB cable. 2. Swipe the screen from the top, tap ->...

  • Page 66: Faq

    *Note: Before registration, please make sure the network is properly connected. After the tablet has been successfully reset, follow the steps below to download the App: 1. Launch the browser and the default official Launch website opens (If a blank page pops up, just type in www.x431.com in the input bar).

  • Page 67: About Smartlink Diag

    7. How to retrieve the login password? Please follow below steps to proceed in case you forgot the login password: 1. Tap the application icon on the home screen to launch it. 2. Tap the Login button on the upper right corner of the screen.

  • Page 68: Glossary Of Terms & Abbreviations

    LAUNCH X-431 IMMO PAD User Manual 13 Glossary of Terms & Abbreviations ABS – Anti-Lock Brake System AC – Alternative Current ADAS -- Advanced Driver Assistance Systems AFS – Adaptive Front-lighting System CAN – Controller Area Network Communication Protocol – Allows different systems and sensors in a vehicle to communicate.
  • Page 69 LAUNCH X-431 IMMO PAD User Manual OBD II – On-Board Diagnostics Version 2 OEM – Original Equipment Manufacturer PID – Parameter Identification Data Data returned by the vehicle’s Control Modules to the diagnostic tool. TPMS – Tire Pressure Monitor System VCI –...
  • Page 70 The exclusive remedy for any automotive meter found to be defective is repair or replacement, and LAUNCH shall not be liable for any consequential or incidental damages. Final determination of defects shall be made by LAUNCH in accordance with procedures established by LAUNCH.
  • Page 71 If the unit is determined to be out of warranty, it will be repaired for a nominal service charge plus return freight. Send the unit pre-paid to: Attn: Customer Service Department LAUNCH TECH. CO., LTD. Launch Industrial Park, North of Wuhe Avenue, Banxuegang, Bantian, Longgang, Shenzhen, Guangdong P.R.China, 518129...
  • Page 72 Statement: LAUNCH reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We have tried our best to...
