CUJ
Series

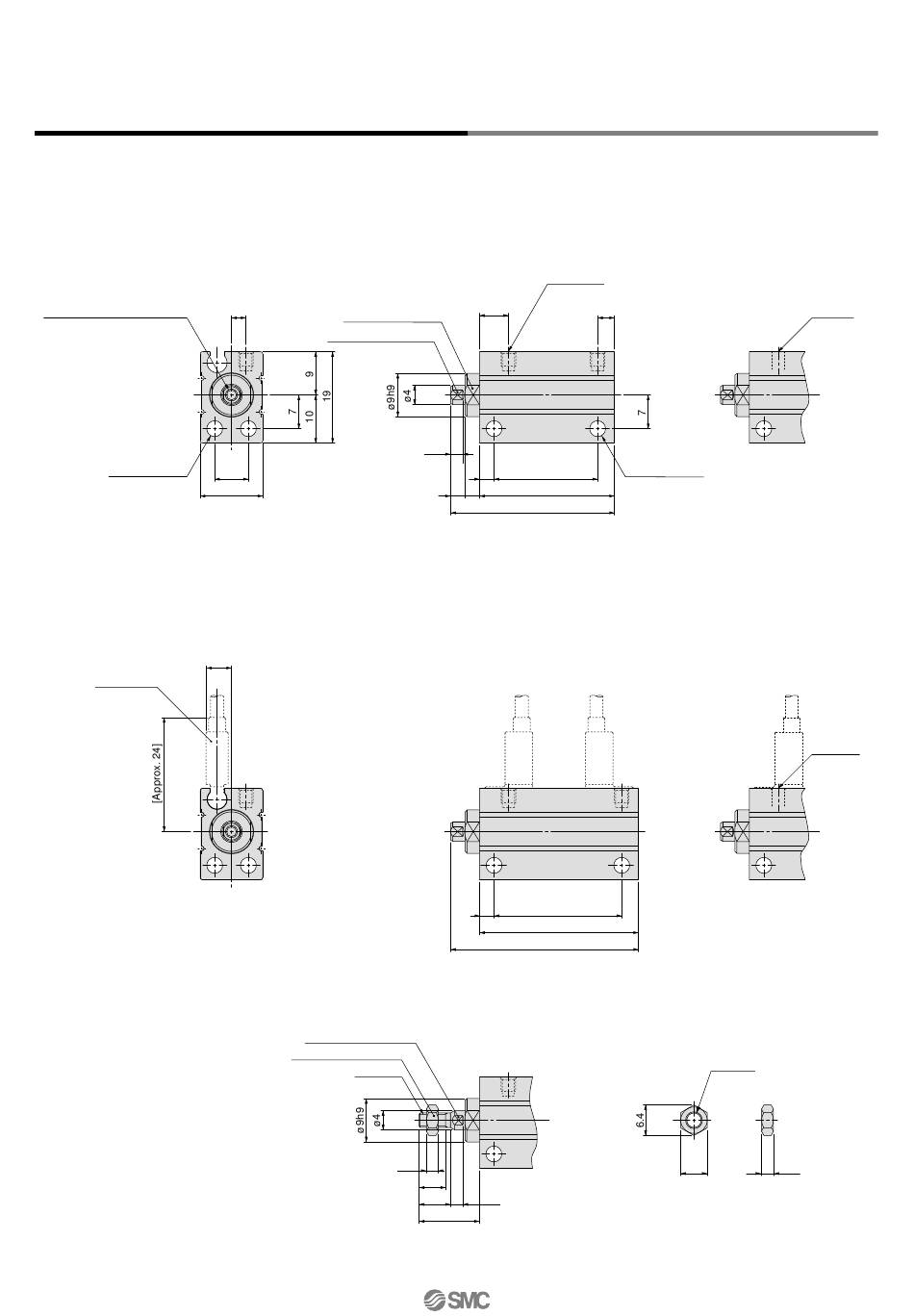

Dimensions for ø6 Double Acting/Single Acting
CUJB6
Without magnet/
M2.5 x 0.45 effective depth 5
2-ø3.3 through
CDUJB6
Built-in magnet/
[Auto switch]
Rod end male thread
7
3
Width across flats 8
Width across flats 3.5
7
13
[5.3]
Width across flats 3.5
Width across flats 5.5
M3 x 0.5
Note) The angular position of the width across flats is not fixed with respect to the tube.
2-M3 x 0.5
(bore size)
6
2.5
3 6.5 + Stroke
3 3 13 + Stroke
19 + Stroke
3
11.5 + Stroke
18 + Stroke
24 + Stroke
2.4
5.5
6.5 2.5
12.5
3.5
2-ø3.3 through
Single acting
Single acting
M3 x 0.5
5.5
Rod end nut part no.: NTJ-006A
Element
Element
2.4
