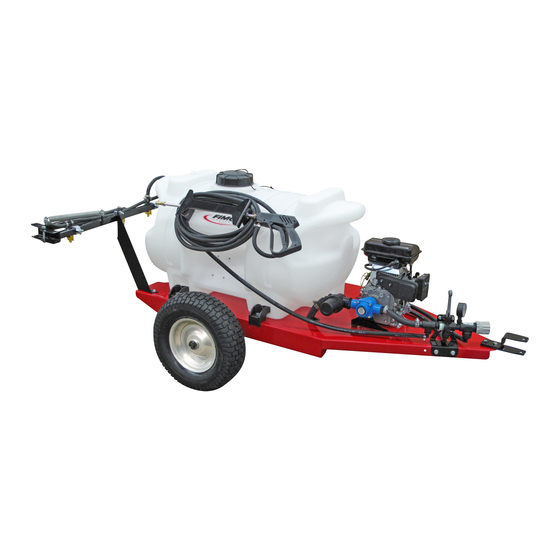

Fimco TR-40-GAS Owner's Manual

(40 Gallon Lawn & Garden Trailer Sprayer w/5-Nozzle Boom Assembly)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.

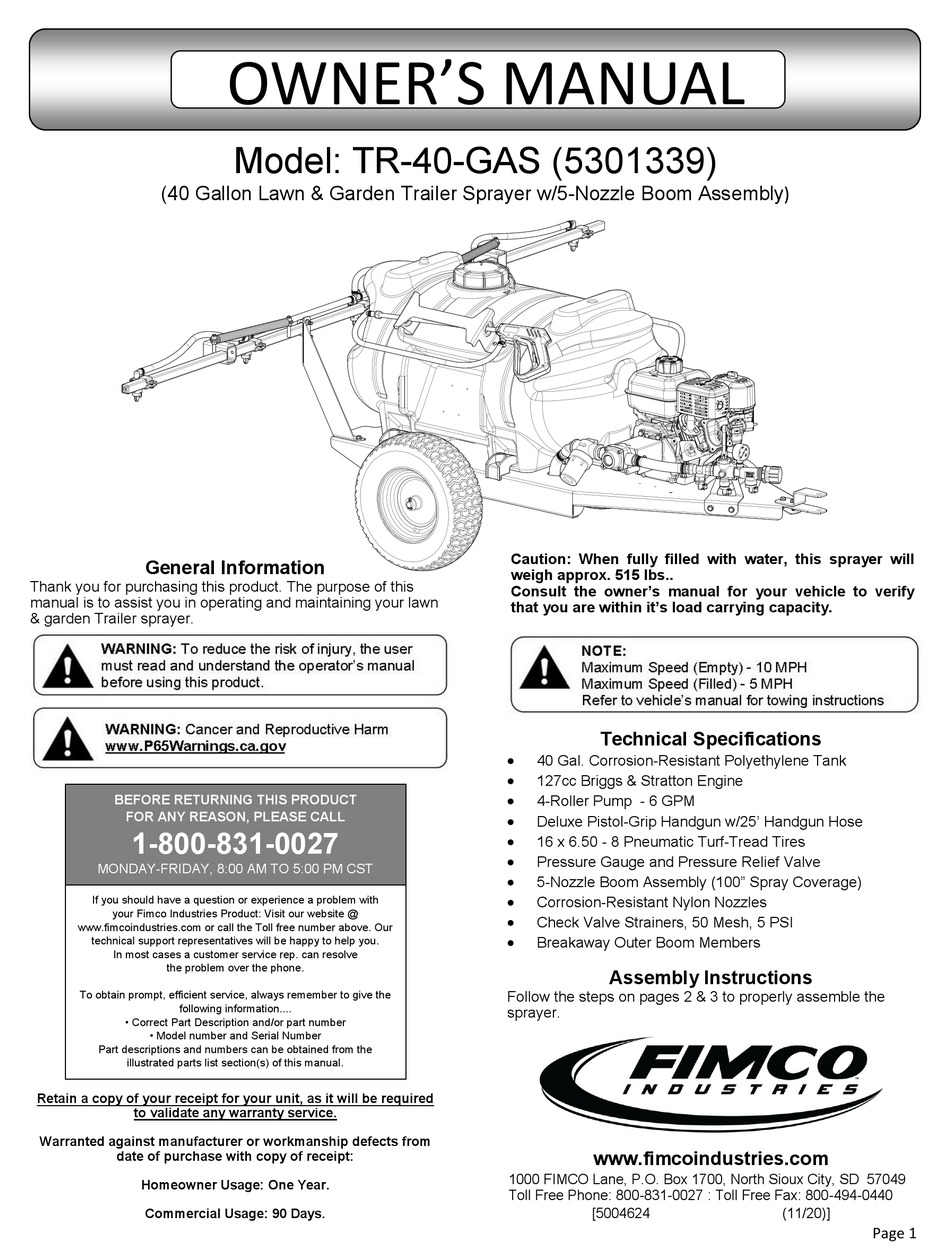

OWNER'S MANUAL
Model: TR-40-GAS (5301339)
Caution: When fully filled with water, this sprayer will
weigh approx. 515 lbs..
Consult the owner's manual for your vehicle to verify
that you are within it's load carrying capacity.
Technical Specifications

40 Gal. Corrosion-Resistant Polyethylene Tank

127cc Briggs & Stratton Engine

4-Roller Pump - 6 GPM

Deluxe Pistol-Grip Handgun w/25' Handgun Hose

16 x 6.50 - 8 Pneumatic Turf-Tread Tires

Pressure Gauge and Pressure Relief Valve

5-Nozzle Boom Assembly (100" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI

Breakaway Outer Boom Members
Assembly Instructions
Follow the steps on pages 2 & 3 to properly assemble the
sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004624 (11/20)]
Page 1
