Fimco TR-40-GAS Owner's Manual

(40 Gallon Lawn & Garden Trailer Sprayer w/5-Nozzle Boom Assembly)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden trailer sprayer. Please read it carefully, as it
furnishes information which will help you achieve years of
trouble-free operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

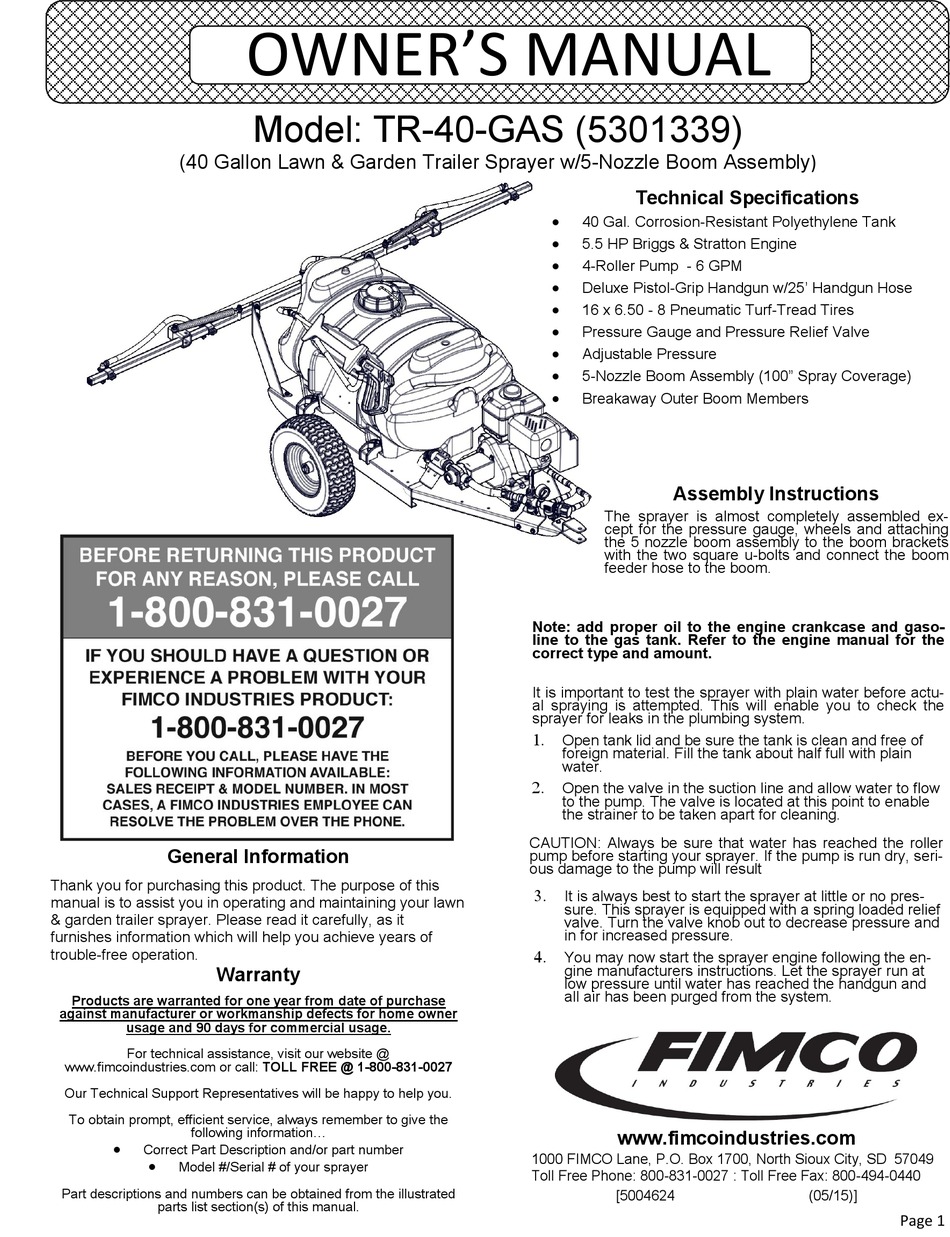

OWNER'S MANUAL
Model: TR-40-GAS (5301339)

Technical Specifications


40 Gal. Corrosion-Resistant Polyethylene Tank

5.5 HP Briggs & Stratton Engine

4-Roller Pump - 6 GPM

Deluxe Pistol-Grip Handgun w/25' Handgun Hose

16 x 6.50 - 8 Pneumatic Turf-Tread Tires

Pressure Gauge and Pressure Relief Valve

Adjustable Pressure

5-Nozzle Boom Assembly (100" Spray Coverage)

Breakaway Outer Boom Members

Assembly Instructions

The sprayer is almost completely assembled ex-
cept for the pressure gauge, wheels and attaching
the 5 nozzle boom assembly to the boom brackets
with the two square u-bolts and connect the boom
feeder hose to the boom.
Note: add proper oil to the engine crankcase and gaso-
line to the gas tank. Refer to the engine manual for the
correct type and amount.
It is important to test the sprayer with plain water before actu-
al spraying is attempted. This will enable you to check the
sprayer for leaks in the plumbing system.

Open tank lid and be sure the tank is clean and free of
foreign material. Fill the tank about half full with plain
water.

Open the valve in the suction line and allow water to flow
to the pump. The valve is located at this point to enable
the strainer to be taken apart for cleaning.
CAUTION: Always be sure that water has reached the roller
pump before starting your sprayer. If the pump is run dry, seri-
ous damage to the pump will result

It is always best to start the sprayer at little or no pres-
sure. This sprayer is equipped with a spring loaded relief
valve. Turn the valve knob out to decrease pressure and
in for increased pressure.

You may now start the sprayer engine following the en-
gine manufacturers instructions. Let the sprayer run at
low pressure until water has reached the handgun and
all air has been purged from the system.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004624
224490
(05/15)]
Page 1
