Fimco TR-20-EX Owner's Manual

Fimco TR-20-EX Owner's Manual

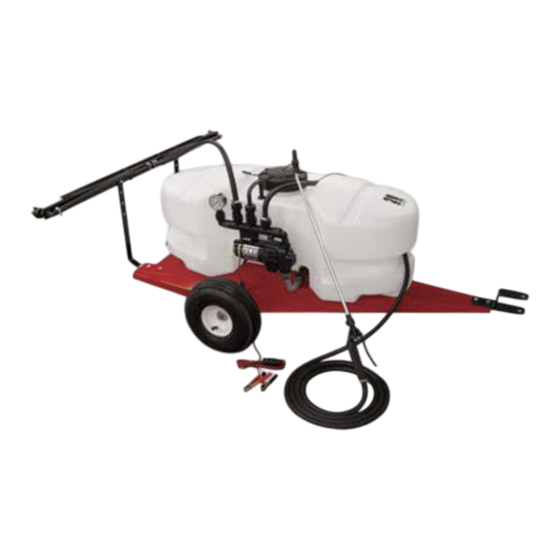

20 gallon lawn & garden trailer sprayer

Advertisement

Quick Links

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden trailer sprayer. Please read it carefully, as it
furnishes information which will help you achieve years of
trouble-free operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Model: TR-20-EX (5301549)
(20 Gallon Lawn & Garden Trailer Sprayer)
Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.
Follow the steps on pages 3 & 4 to properly assemble
the sprayer.
After assembly is complete and before testing your
sprayer, make sure you connect the electrical hook-up to
the end of your pump and clip the clips to a fully charged
battery. The red wire must be connected to the positive
(+) and the black wire should be connected to the nega-
tive (-).
The drain plug assembly should already be attached to
the tank
***IMPORTANT REMINDER***
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004773
Technical Specifications
20 Gallon Corrosion-Resistant
Polyethylene Tank
12 Volt Diaphragm Pump,
2.1 g.p.m.—60 psi
Lever Handgun
15 Ft. Handgun Hose (3/8" I.D.)
15 Ft. max. vertical throw,
30 Ft. horizontal throw
Low Profile Trailer & tank
4.10/3.50 x 4" Pneumatic Tires
2-Nozzle Boom Assembly
(80" Spray Coverage)
Pressure Gauge
Adjustable Pressure
Assembly Instructions
(12/15)]
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-20-EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fimco TR-20-EX

  • Page 1  Correct Part Description and/or part number 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049  Model #/Serial # of your sprayer Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Part descriptions and numbers can be obtained from the illustrated...
  • Page 2 Contents of your sprayer’s carton (TR-20-EX - 5301549): Owner’s Manual Tank/Frame Pre-Assembly (2) Tires/Wheels (#5021092) 2-Nozzle Boom Assembly (#5277774) 15/20 Gallon Trailer Bracket Kit Contents of Parts Bag #5277727 #5278315 Tank Lid & Lanyard (#5058188) Page 2...
  • Page 3 Step 1 Assembly Procedure (TR-20 EX - 5301549) Remove the hitch brackets, both flat (5038518) and formed (5038517) from the parts bag. The flat one is to be placed under the frame and the formed one gets placed on top of the frame. Bolt them together, ‘sandwiching’...
  • Page 4 Step 4 Assembly Procedure (TR-20 EX - 5301549) Remove the 2-nozzle boom assembly (5277774) from the carton. Using (2) bolts (5117323) and (2) whiz nuts (5006307), bolt the boom to the upright boom mounting brackets. There are four holes in the boom brackets, so you can choose the most optimal (height) position for your spraying purposes.
  • Page 5: Operation

    Refill the tank about half full with plain water water before actual spraying is attempted. This will enable and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning you to check the sprayer for leaks without the possibility of instructions above.
  • Page 6: Pump Specifications

    Pump Model: 5277981 Available Replacement Parts  Clean and rinse your pump after each use with Fimco Tank Neutralizer  Winterize your pump or sprayer by rinsing, draining and running RV Antifreeze through it before storing for the winter. ...
  • Page 7 Exploded View/Parts List: TR-20-EX (5301549) Manifold Intake Detail Detail Page 7...
  • Page 8 TR-20-EX (5301549) 2-Nozzle Boom Assembly #5277774 Intake/Siphon Tube/Screen Detail of a Typical L&G/ATV Sprayer (not including the ‘EC’Units) ‘Cut’ View of a ‘Typical’ Tank (looking inside) The suction line of your sprayer should contain a ‘siphon tube’ or intake tube which should be rotated so that it just touches the bottom of the tank surface.
