Fimco TR-40-EX Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: TR-40-EX
(5301338)

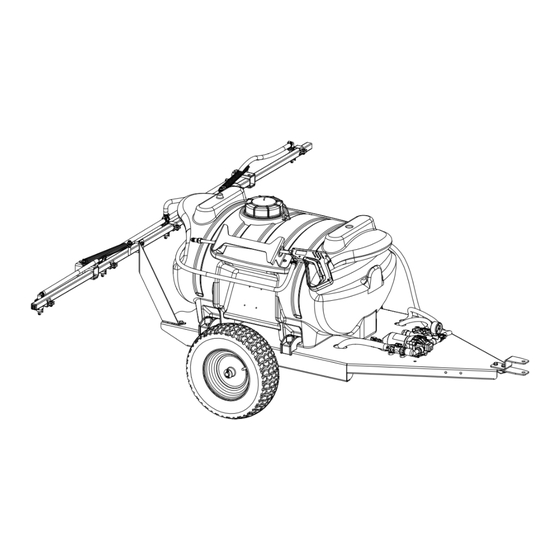

(40 Gallon Lawn & Garden Trailer Sprayer
w/5-Nozzle Boom Assembly)
Caution: When fully filled with water,
this sprayer will weigh approx.
490 lbs..
Consult the owner's manual for your
vehicle to verify that you are within
it's load carrying capacity.
Technical Specifications

40 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 g.p.m.—60 psi

Deluxe Pistol-Grip Handgun

25 Ft. Handgun Hose

25 Ft. max. vertical throw, 35 Ft. horizontal throw

Low Profile Trailer & tank

15/600 x 6 2-Ply Pneumatic Tires

5-Nozzle Boom Assembly (100" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI

Breakaway Outer Boom Members
Assembly Instructions

Follow the steps on pages 2 & 3 to properly assemble the
sprayer.

After assembly is complete and before testing your
sprayer, connect the wiring harness to the rear of the
pump.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194807 (02/19)]
Page 1
