Fimco LG-20-TRL Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
lawn & garden/ATV sprayer. Please read it carefully, as it
furnishes information which will help you achieve years of
trouble-free operation.
Warranty
Products are warranted for one year from date of purchase against
manufacturer or workmanship defects for home owner usage and
90 days for commercial usage.
For technical assistance, visit our website @ www.fimcoindustries.com
or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

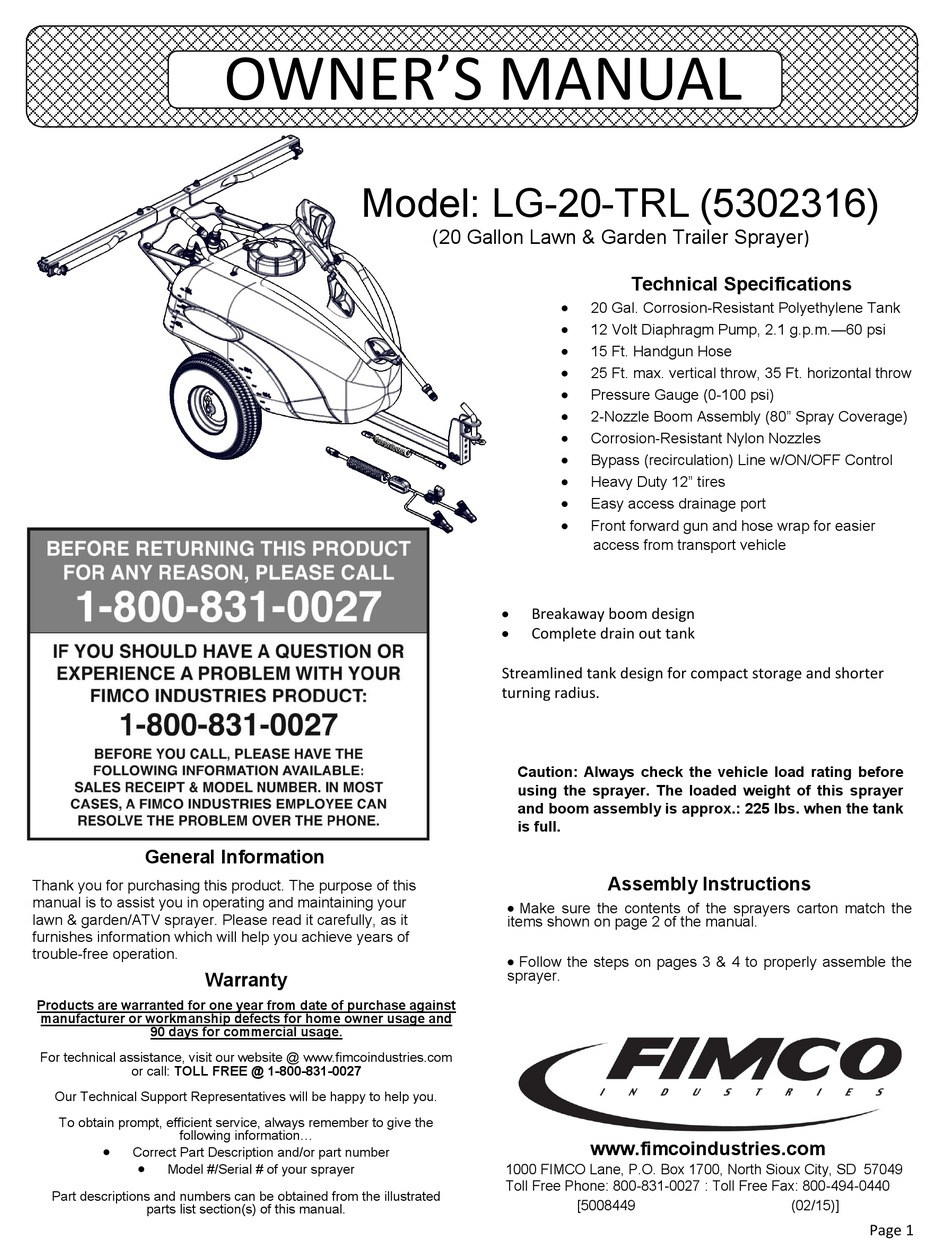

OWNER'S MANUAL
Model: LG-20-TRL (5302316)
(20 Gallon Lawn & Garden Trailer Sprayer)

20 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.1 g.p.m.—60 psi

15 Ft. Handgun Hose

25 Ft. max. vertical throw, 35 Ft. horizontal throw

Pressure Gauge (0-100 psi)

2-Nozzle Boom Assembly (80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Bypass (recirculation) Line w/ON/OFF Control

Heavy Duty 12" tires

Easy access drainage port

Front forward gun and hose wrap for easier
access from transport vehicle

Breakaway boom design

Complete drain out tank
Streamlined tank design for compact storage and shorter
turning radius.
Caution: Always check the vehicle load rating before
using the sprayer. The loaded weight of this sprayer
and boom assembly is approx.: 225 lbs. when the tank
is full.
Assembly Instructions

Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3 & 4 to properly assemble the
sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
