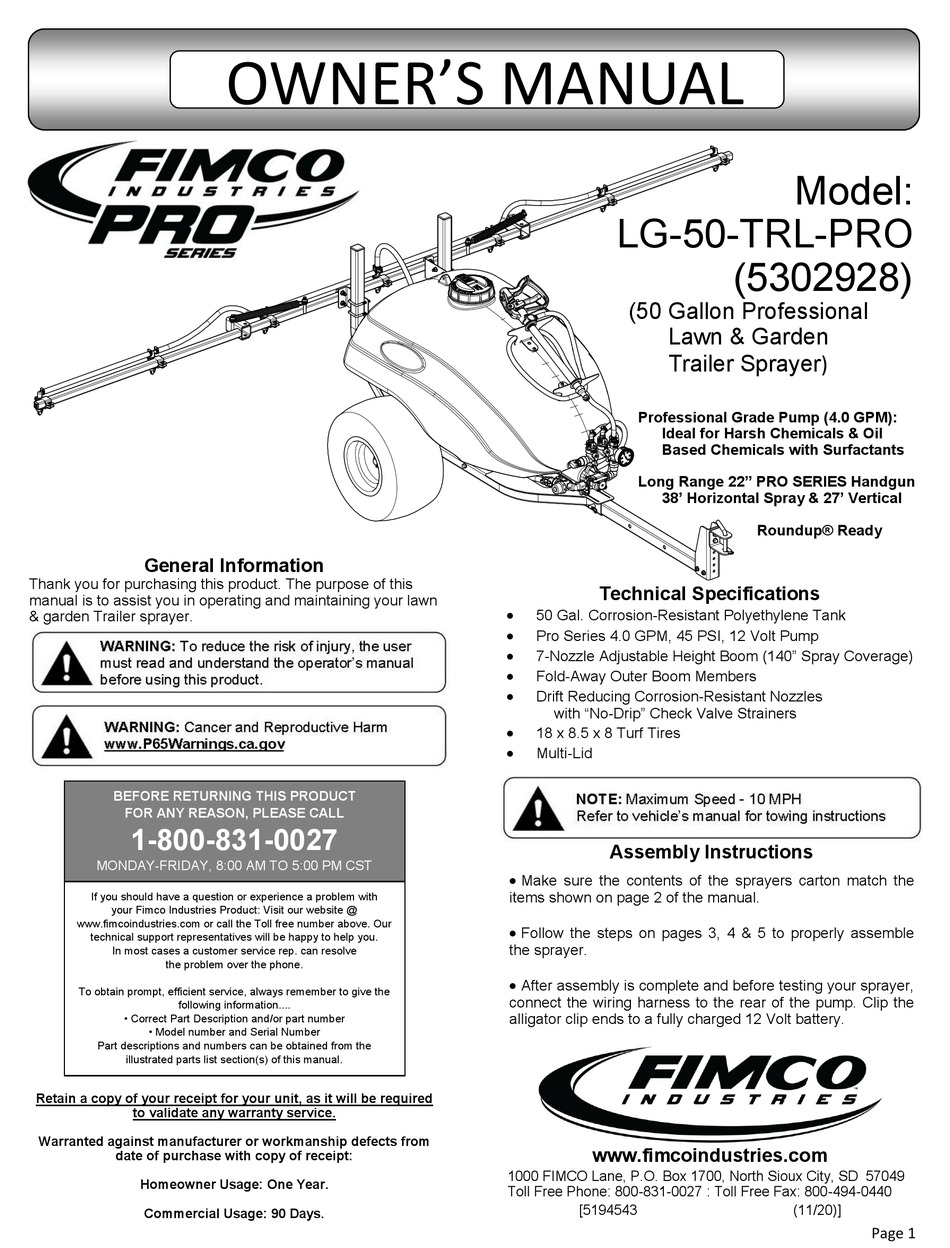

Fimco PRO Series Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.
OWNER'S MANUAL
LG-50-TRL-PRO
(50 Gallon Professional
Lawn & Garden
Trailer Sprayer)
Professional Grade Pump (4.0 GPM):
Ideal for Harsh Chemicals & Oil
Based Chemicals with Surfactants
Long Range 22" PRO SERIES Handgun
38' Horizontal Spray & 27' Vertical
Technical Specifications

50 Gal. Corrosion-Resistant Polyethylene Tank

Pro Series 4.0 GPM, 45 PSI, 12 Volt Pump

7-Nozzle Adjustable Height Boom (140" Spray Coverage)

Fold-Away Outer Boom Members

Drift Reducing Corrosion-Resistant Nozzles
with "No-Drip" Check Valve Strainers

18 x 8.5 x 8 Turf Tires

Multi-Lid
Assembly Instructions

Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.

Follow the steps on pages 3, 4 & 5 to properly assemble
the sprayer.

After assembly is complete and before testing your sprayer,
connect the wiring harness to the rear of the pump. Clip the
alligator clip ends to a fully charged 12 Volt battery.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194543
Model:
(5302928)
Roundup® Ready
(11/20)]
Page 1
