General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

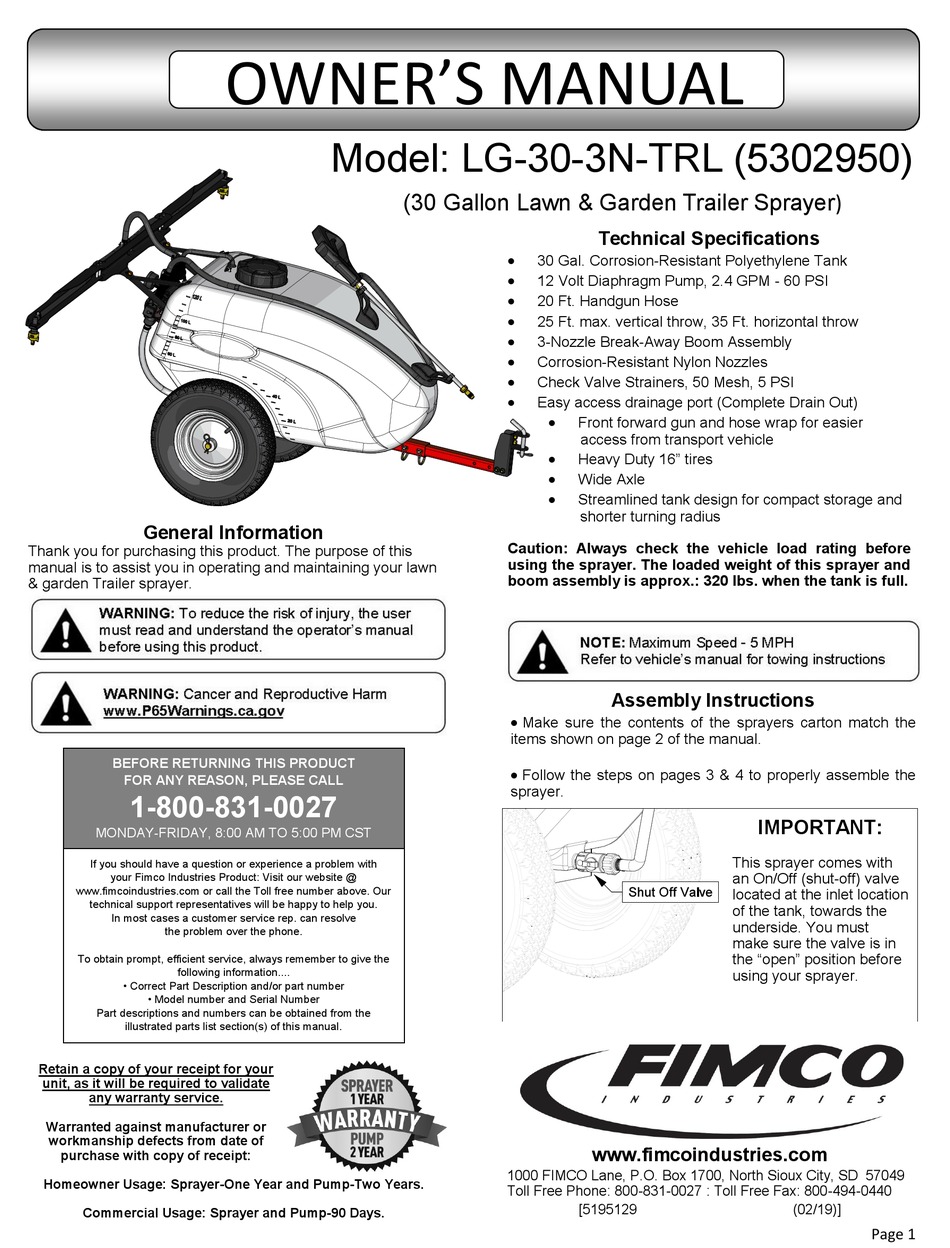

OWNER'S MANUAL
Model: LG-30-3N-TRL (5302950)
(30 Gallon Lawn & Garden Trailer Sprayer)
Technical Specifications
30 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI
20 Ft. Handgun Hose
25 Ft. max. vertical throw, 35 Ft. horizontal throw
3-Nozzle Break-Away Boom Assembly
Corrosion-Resistant Nylon Nozzles
Check Valve Strainers, 50 Mesh, 5 PSI
Easy access drainage port (Complete Drain Out)
Front forward gun and hose wrap for easier
access from transport vehicle
Heavy Duty 16" tires
Wide Axle
Streamlined tank design for compact storage and
shorter turning radius
Caution: Always check the vehicle load rating before
using the sprayer. The loaded weight of this sprayer and
boom assembly is approx.: 320 lbs. when the tank is full.
Assembly Instructions
Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.
Follow the steps on pages 3 & 4 to properly assemble the
sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195129
IMPORTANT:
This sprayer comes with
an On/Off (shut-off) valve
located at the inlet location
of the tank, towards the
underside. You must
make sure the valve is in
the "open" position before
using your sprayer.
(02/19)]
Page 1
Advertisement
Troubleshooting
Related Manuals for Fimco LG-30-3N-TRL
Summary of Contents for Fimco LG-30-3N-TRL
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5195129 (02/19)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Contents of your sprayer’s carton (LG-30-3N-TRL) Tank/Plumbing Pre-Assembly Owner’s Manual Tongue Assembly Contents of Parts Bag (#5281138) Tires Breakaway Boom Bracket Kit Page 2...
- Page 3 Your tank comes pre-assembled with the pump, Detail A manifold, bypass, intake assembly, lid w/lanyard, handgun, handgun hose, handgun hose quick connect and loom clamp already attached. To assemble the tongue and frame to the tank. Locate the (4) 5/16” x 5/8” Flange Lock Screws, (2) 5/16” x 2-1/4” Flanged bolts, tank support , axle support and the tongue assembly.
- Page 4 Break-Away Boom Assembly is partially preassembled. Follow the Detail A directions below to mount to your tank. Detail A: Locate the (2) Boom Top Straps and then in the parts bag, locate (2) 5/16-18 x 5/8” Flanged Lock Screws. Attach the Boom Top Straps to the tank, using the two screws. DO NOT TIGHTEN Detail B: Locate the Boom Assembly and then in the parts bag,...
- Page 5 IMPORTANT: Remove tank lid and be sure the tank is clean and free of Manifold Valves CLOSED any foreign material. Rinse tank out of any tank residue before filling with water to test. Testing the Sprayer NOTE: It is VERY important for you to test your sprayer with plain water before actual spraying is attempted.
- Page 6 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon).
-
Page 7: Troubleshooting The Pump
3/8” Hose Barb Port Kit Fitting #5168836 DON’T Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene ... -
Page 8: Troubleshooting
Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad. -
Page 9: Exploded View Parts List
Exploded View/ Manifold Parts List: Assembly Detail LG-30-3N-TRL Next Page (5302950) Boom Assembly Detail Page 11 See Intake Assembly Detail Page 11 Page 9... - Page 10 Boom Detail Exploded View/Parts List Opposite side has typical setup Hinge Detail Based on the minimum overlap required to obtain uniform 110° wide, tapered flat spray angle with air induction tech- nology for better drift management distribution with 110° tips and 30” spacing. ...
- Page 11 Manifold Detail Intake Detail This sprayer comes with an On/Off (shut-off) valve located at the inlet location of the tank, towards the underside. You See Page 9 must make sure the valve is in the “open” position before using your sprayer. for Part Numbers NOTES: Page 11...
-
Page 12: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
