Fimco UTV-45-SP-GS Owner's Manual

45 gallon lawn & garden utv spot sprayer
Hide thumbs

Advertisement

Quick Links

Download this manual
Technical Specifications
45 Gal. Corrosion-Resistant
Polyethylene Tank
Lever Handgun
25 Ft. Handgun Hose
16 Ft. max. vertical throw, 30 Ft. horizontal throw
12 Volt, 2.4 GPM - 60 PSI Diaphragm Pump
Caution: When fully filled with water, this sprayer
will weigh 420 lbs.. Consult the owner's manual for
your vehicle to verify that you are within it's load
carrying capacity.
Secure unit in your UTV, using tie-down straps
(NOT INCLUDED)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
UTV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

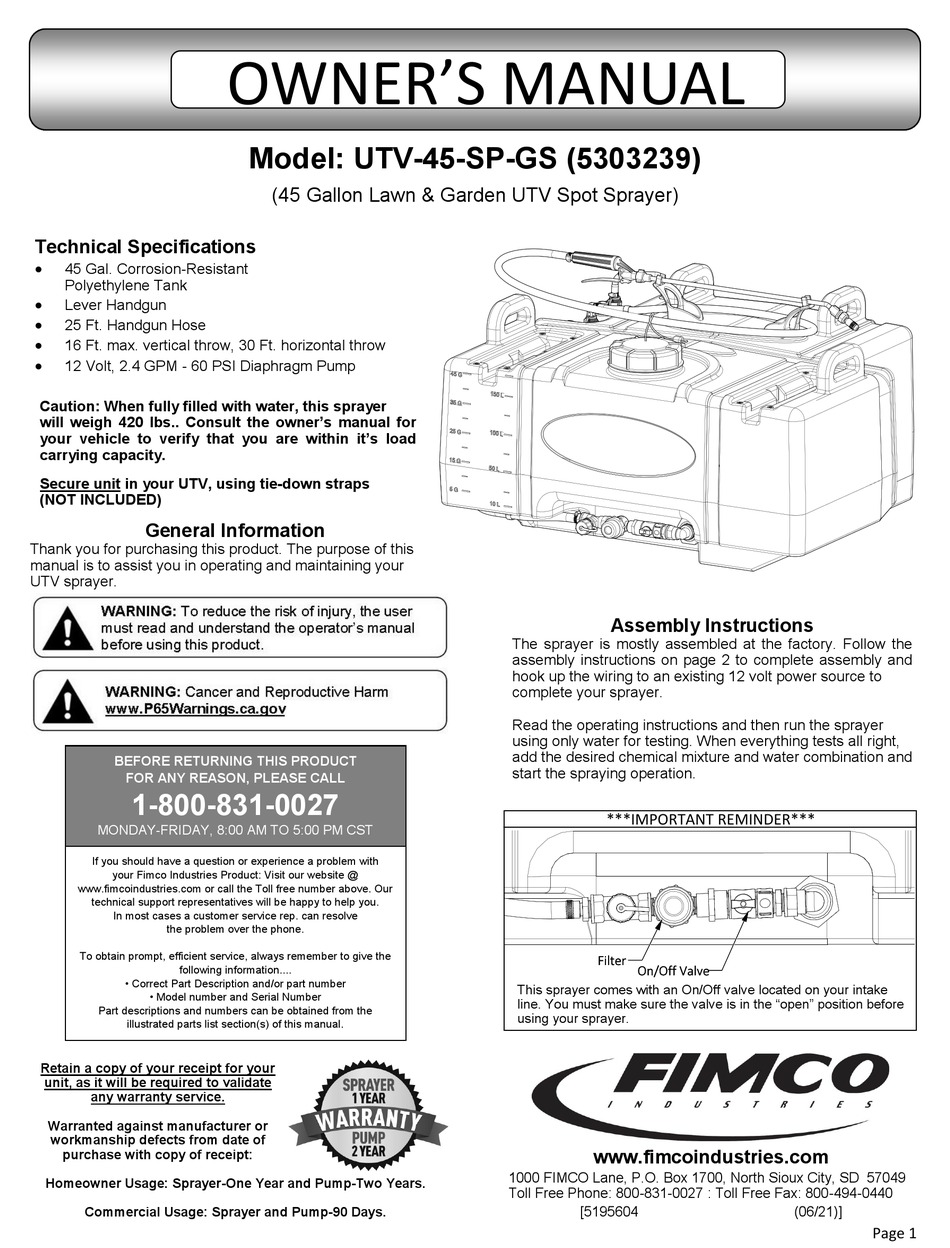

OWNER'S MANUAL
Model: UTV-45-SP-GS (5303239)
(45 Gallon Lawn & Garden UTV Spot Sprayer)
Assembly Instructions
The sprayer is mostly assembled at the factory. Follow the
assembly instructions on page 2 to complete assembly and
hook up the wiring to an existing 12 volt power source to
complete your sprayer.
Read the operating instructions and then run the sprayer
using only water for testing. When everything tests all right,
add the desired chemical mixture and water combination and
start the spraying operation.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195604
(06/21)]
Page 1

Advertisement

loading

Related Manuals for Fimco UTV-45-SP-GS

Summary of Contents for Fimco UTV-45-SP-GS

  • Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5195604 (06/21)] Commercial Usage: Sprayer and Pump-90 Days.
  • Page 2 Assembly Procedure (UTV-45-SP-GS) Step 2 Step 1 Attach the (2) Hose Wraps to the top of the tank with Thread Pressure Gauge into open port on manifold, as (4) Phillips Head Screws shown. Thread Lid on to tank. Once fully assembled, connect your lead wire to your 12 volt power source.
  • Page 3 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon).
  • Page 4 Pump Model: 5281371 Available Replacement Parts DON’T  Use to pump bleach.  Clean and rinse your pump after each use with Fimco Tank  Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene  Winterize your pump or sprayer by rinsing, draining and ...

  • Page 5: Troubleshooting

    Motor Not Running - Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad.

  • Page 6: Exploded View Parts List

    Exploded View/Parts List UTV-45-SP-GS (5303239) See Detail A Next Page See Detail B Next Page Page 6...
  • Page 7 Detail B Detail A Manifold Detail Refer to the parts list previous page for part numbers. Strainer Detail UTV Intake Plumbing (5278928) Refer to Parts List Page 6 for Part Numbers Inside Tank Intake Detail Page 7...

  • Page 8: Technical Specifications

    Technical Specifications 25” 36” 30” Properly secure the tank to your utility vehicle, using tie-down or ratchet straps (Not Included).  Tank straps may be installed through the handles to help prevent straps from slipping off tank if  too loose. Handles can be used to lift the empty tank in and out of the box.
  • Page 9 NOTES: Page 9...

  • Page 10: Warranty

    WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
