General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3 Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.

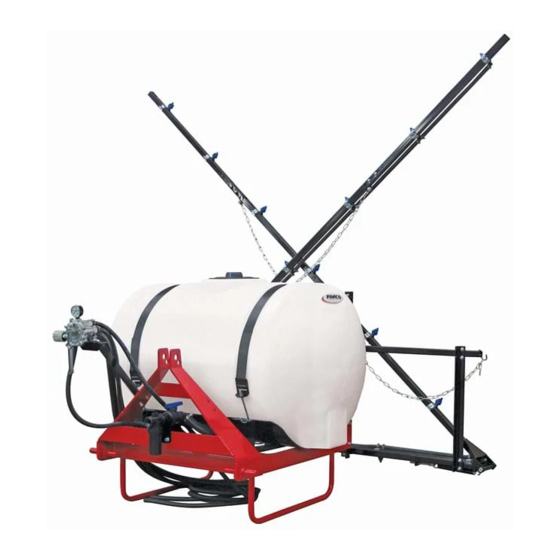

OWNER'S MANUAL
Model: 150-3PT-1PC (5300921)
(150 Gallon 3-Point Sprayer w/8-Row Boom)
Category I or II
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5008139
(10/22)]
Page 1
Advertisement
Related Manuals for Fimco 150-3PT-1PC
Summary of Contents for Fimco 150-3PT-1PC
- Page 1 Warranted against manufacturer or workmanship defects from date of purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Homeowner Usage: One Year [5008139 (10/22)] Commercial Usage: 90 Days.
-
Page 2: Technical Specifications
Tank Care, Maintenance and Winter Storage ......7 Sprayer Dimensions ............13 Sprayer Exploded View ............8 Troubleshooting ............... 13 Sprayer Parts List ..............9 Warranty ................14 Model: 150-3PT-1PC (5300921) (150 Gallon 3 Point Sprayer w/8-Row Boom Assembly) Technical Specifications • 150 Gallon Polyethylene Tank •... -
Page 3: Assembly Procedure
Assembly Procedure Most of the sprayer has been assembled at the factory. • Follow the steps on pages 3, 4 & 5 to properly assemble the sprayer. Slide a hose clamp on to the 1/2” bypass hose (from the relief valve), then with a twisting mo- tion, slip the bypass hose over the fitting on the... - Page 4 Boom Assembly Procedure 7. Mount the upright angles to the inside of the mounts on the 3-point carrier using the supplied 1/2” bolts and nuts. 8. Attach the backrack to the upright angles using the square U-bolts and nuts. Note: the backrack can be mounted in either a high or low position and the uprights can be adjusted for desired height.
- Page 5 Assembly Procedure 14. Starting with the center section, attach the appropriate hose assemblies onto each of the three boom sections. Center the center hose assembly on the boom, working outward to the ends of the booms. the center section has five nozzles with a cross nozzle assembly to connect your feeder hose to.
- Page 6 Operation The performance of any agricultural chemical depends upon the proper application. Always fill the tank with a desired amount of water first and then add the chemical slowly, mixing as you pour the chemical into the tank. You may use the handgun to spraying into the solution in order to mix the chemical and water. Only fill the tank with what you’re going to spray in a day, never leave chemicals sit in tank.
- Page 7 After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz.
-
Page 8: Exploded View
Exploded View: Refer to pages 9-11 150-3PT-1PC For Boom (5300921) breakdown & Part Refer to the parts list Numbers next page for part numbers. Bypass Hose Plumbing Detail Page 8... - Page 9 Parts List: 150-3PT-1PC (5300921) * *: Available ONLY in complete assembly Back Rack Assembly (5277359) Refer to the boom parts list next page for part numbers. NOTE: Assembly of opposite end is similar to this end. Bolt (Ref. #1.9) goes through the yoke on the outer boom(s), then through Ref.
- Page 10 Model: 257-8 Detail B (8-Row) Boom Assembly Detail A (5300658) See Detail A Detail C See Detail B See Detail C Mounting Angles Mounting Angles ARE Used are NOT Used Center “Back-Rack” Mounted Center “Back-Rack” Mounted In “High” Position In “Low” Position Page 10...
- Page 11 257-8 (STD) Harness Parts List Ref. #20.1 - 257-8 Center Nozzle Harness (#5277761) Ref. #20.2 - 257-8 LH Nozzle Harness (#5277806) Ref. #20.2 - 257-8 RH Nozzle Harness (#5277806) NOTES: All hoses in this boom assembly are part #5020569 (Ref. # 1) Typical Nozzle Assembly Configurations All hose clamps (2 per hose) are #5051114 (Ref.
- Page 12 Torque Chain Attachment to a Roller Pump Torque chain, ‘S’ hook, nut and bolt are included to secure your pump during operation. Attach end of the torque chain over stem of bolt Strap/Buckle Detail Thread the whiz nut onto the bolt. Hand-tighten. Strap Attachment to a “Bent”...
- Page 13 Dimensions 59.500” 46.000” 32.000” 53.125” 8.938” 41.000” 38.750” Boom Width Folded Out: 28’ Troubleshooting Symptom Probable Cause(s) Corrective Action Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for debris or loose inner liner in hose Suction strainer clogged Clean strainer Suction hose sucked to...
-
Page 14: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Inc. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
