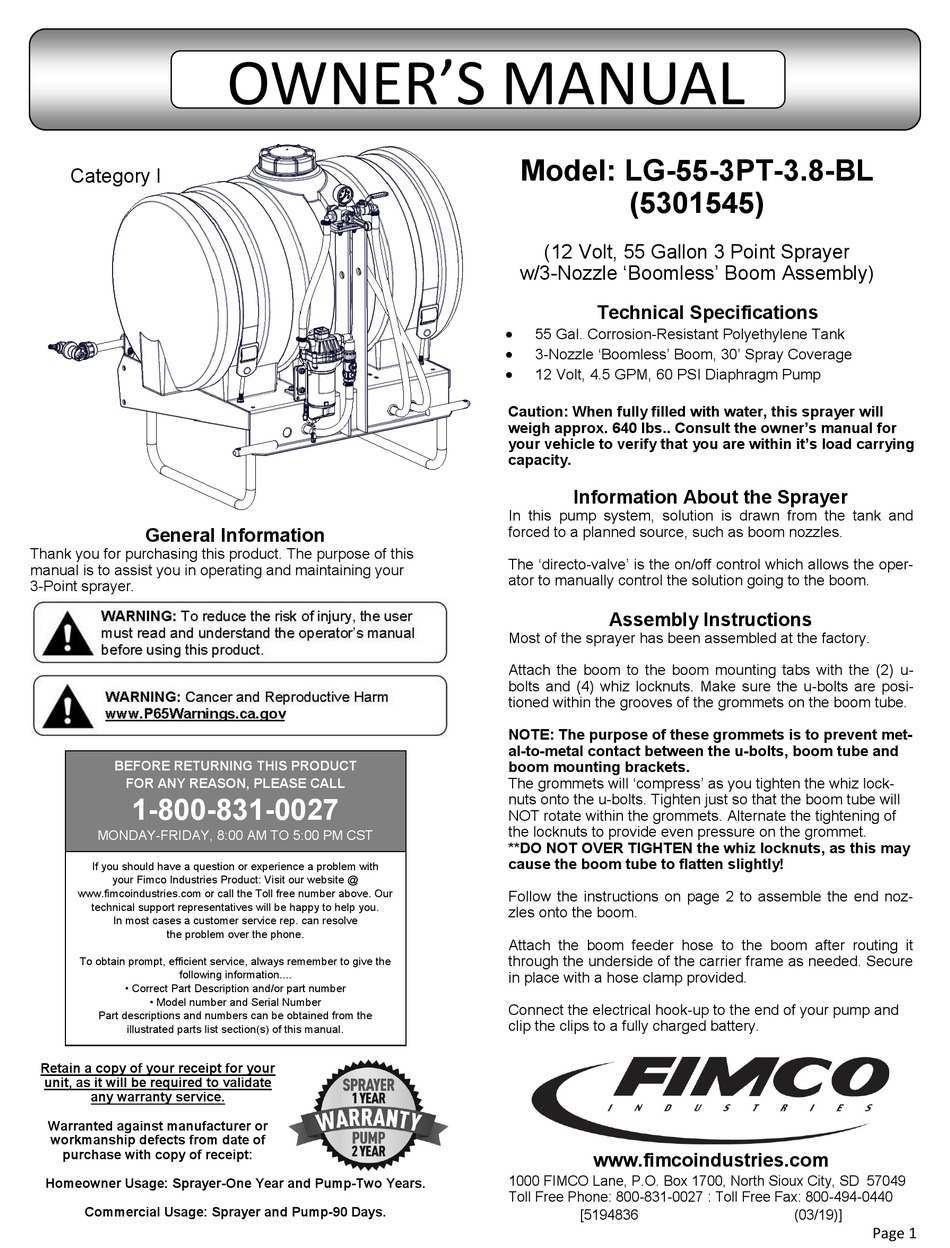

Fimco LG-55-3PT-3.8-BL Owner's Manual

Category I
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: LG-55-3PT-3.8-BL
(5301545)
(12 Volt, 55 Gallon 3 Point Sprayer
w/3-Nozzle 'Boomless' Boom Assembly)
Technical Specifications

55 Gal. Corrosion-Resistant Polyethylene Tank

3-Nozzle 'Boomless' Boom, 30' Spray Coverage

12 Volt, 4.5 GPM, 60 PSI Diaphragm Pump
Caution: When fully filled with water, this sprayer will
weigh approx. 640 lbs.. Consult the owner's manual for
your vehicle to verify that you are within it's load carrying
capacity.
Information About the Sprayer
In this pump system, solution is drawn from the tank and
forced to a planned source, such as boom nozzles.
The 'directo-valve' is the on/off control which allows the oper-
ator to manually control the solution going to the boom.
Assembly Instructions
Most of the sprayer has been assembled at the factory.
Attach the boom to the boom mounting tabs with the (2) u-
bolts and (4) whiz locknuts. Make sure the u-bolts are posi-
tioned within the grooves of the grommets on the boom tube.
NOTE: The purpose of these grommets is to prevent met-
al-to-metal contact between the u-bolts, boom tube and
boom mounting brackets.
The grommets will 'compress' as you tighten the whiz lock-
nuts onto the u-bolts. Tighten just so that the boom tube will
NOT rotate within the grommets. Alternate the tightening of
the locknuts to provide even pressure on the grommet.
**DO NOT OVER TIGHTEN the whiz locknuts, as this may
cause the boom tube to flatten slightly!
Follow the instructions on page 2 to assemble the end noz-
zles onto the boom.
Attach the boom feeder hose to the boom after routing it
through the underside of the carrier frame as needed. Secure
in place with a hose clamp provided.
Connect the electrical hook-up to the end of your pump and
clip the clips to a fully charged battery.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194836 (03/19)]
Page 1
