External Antenna Configuration Information

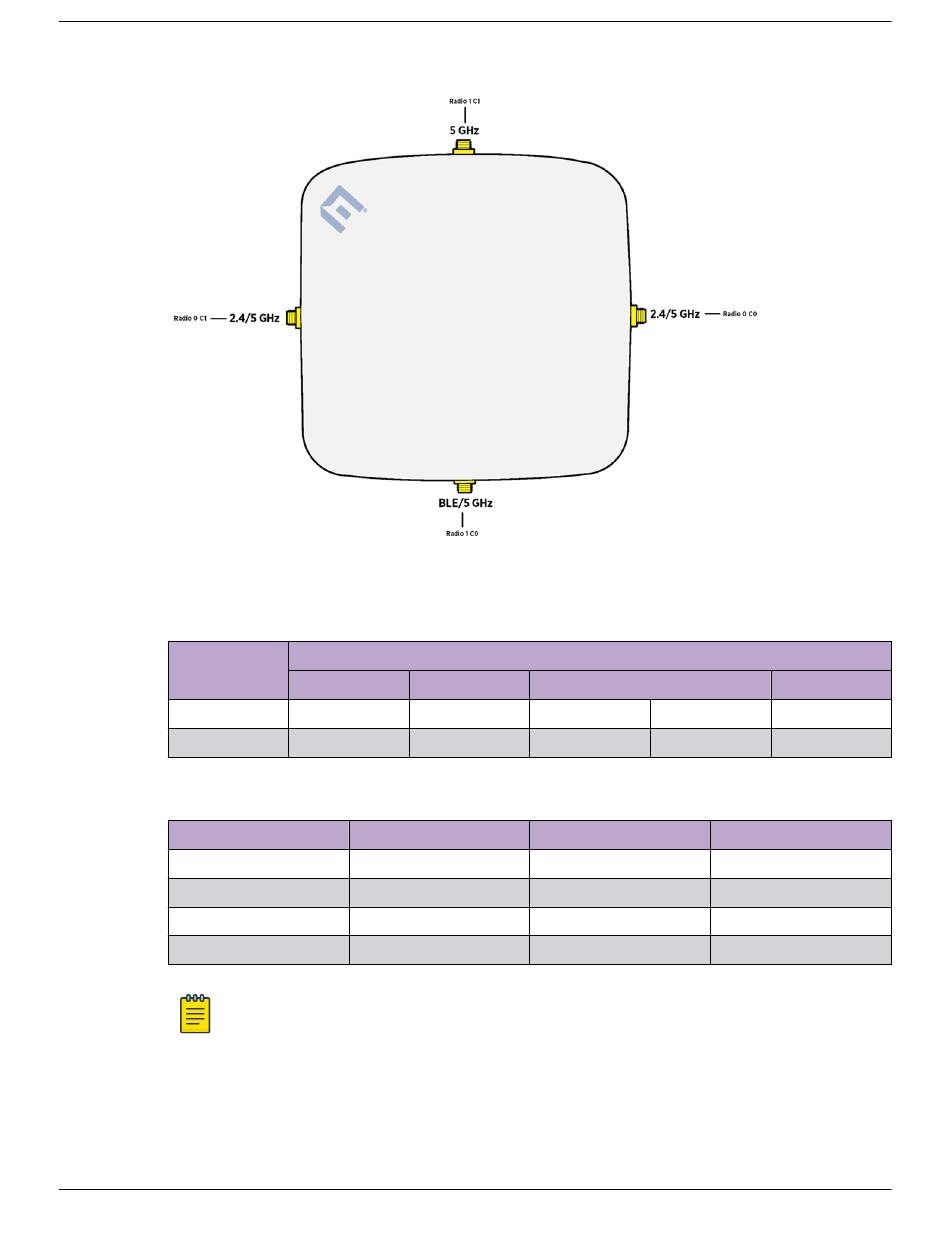

Figure 5: AP305CX external antenna port connectors
Table 8: AP305CX external antenna ports radio information
Radio modes
Dual-band
Dual 5G
Table 9: AP305CX radio ports support information
Radio port
Radio 0 C0
Radio 0 C1
Radio 1 C0
Radio 1 C1
Note
For antenna specifications and installation information, refer to the
Antenna Specifications
Radio 0 C0 Radio 0 C1
2.4G 2.4G
5G (low) 5G (low)
Antenna marking
2.4 GHz/5 GHz
2.4 GHz/5 GHz
Bluetooth/5 GHz
5 GHz
Guide.
External antenna information
Antenna ports
Radio 1 C0
5G (full) 2.4G (BLE)
5G (high) 2.4G (BLE)
Radio support
2.4G/5G
2.4G/5G
2.4G/5G
5G
ExtremeWireless™ AP305C/CX Access Points
Radio 1 C1
5G (full)
5G (high)
Antenna type
Dual-band omni
Dual-band omni
Dual-band omni
Dual-band omni
Wi-Fi 6 (802.11ax)
