How to Replace the Rubber Pad
The rubber pad in your Auto Document Feeder (ADF) is designed to make document
feeding smooth. After scanning approximatley 30,000 sheets through the ADF, the
rubber pad may become worn out, and problems such as document double-feeds may
occur. In this case, check the rubber pad and replace it with a new one if needed; two
rubber pads are included in your scanner package for this purpose. Follow the
procedures below for replacing the rubber pad.

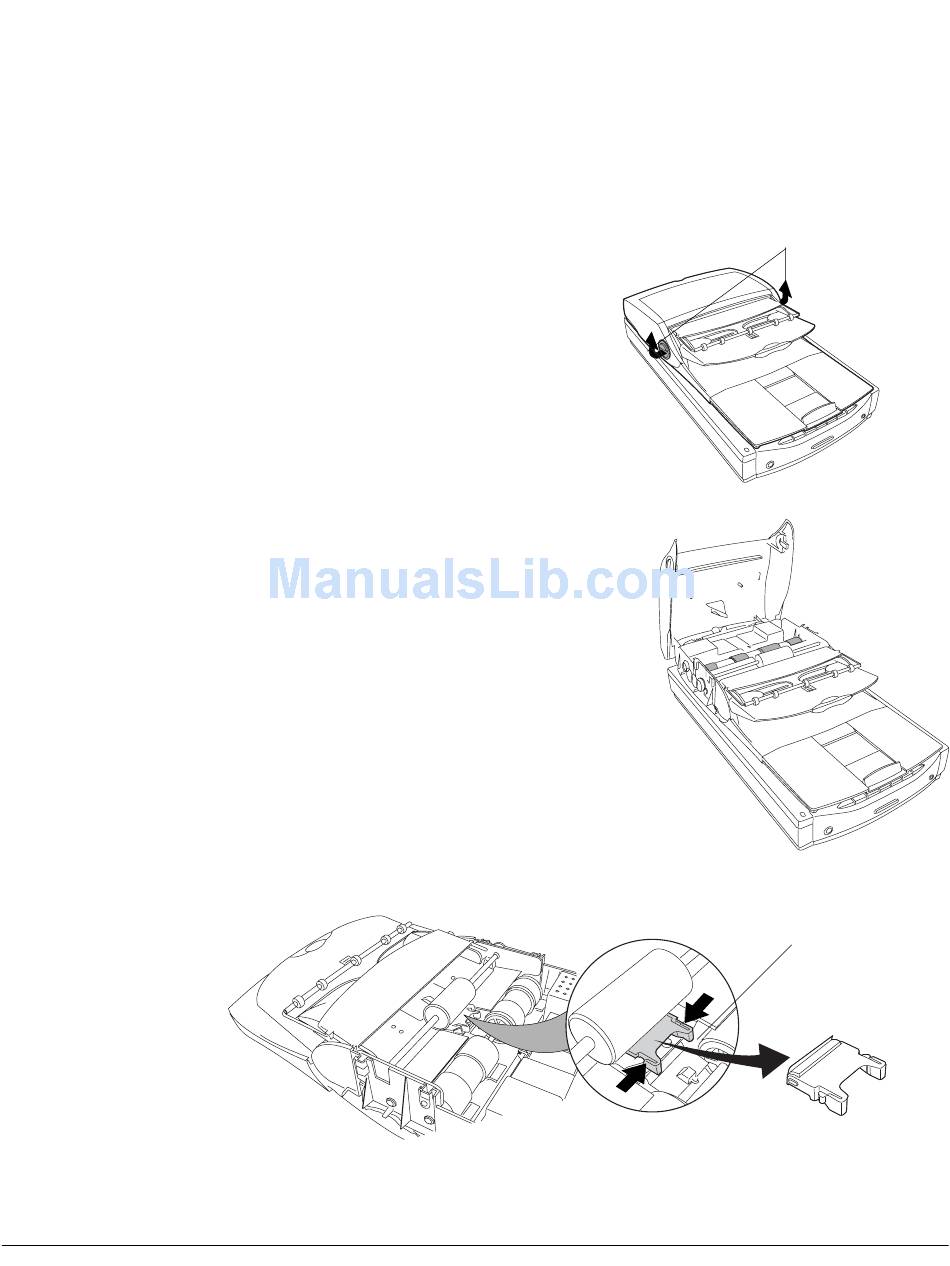

1. Open the feeder cover by lifting the
two Earlobe Levers on each side of
the cover.
2. With the cover fully opened, press the
two arms of the rubber pad inward with
your fingers to pull out the rubber pad.
3. Insert and push the new rubber pad into the
compartment until it snaps into place.
4. Close the feeder cover.
Microtek ADF-700 Installing and Getting Started
Earlobe Levers
Rubber Pad
