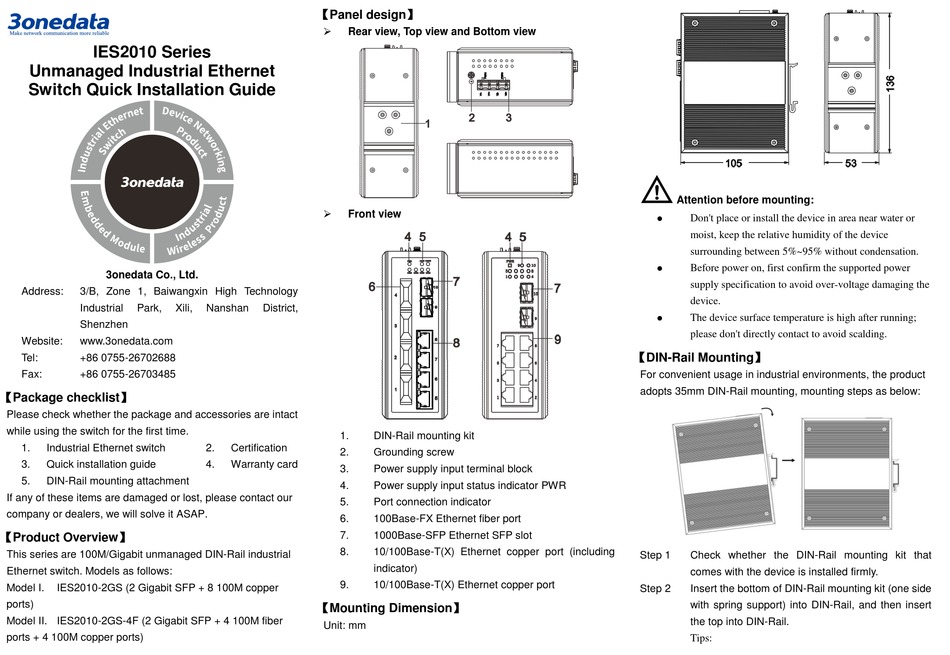

3onedata IES2010 Series Quick Installation Manual

IES2010 Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package checklist】
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

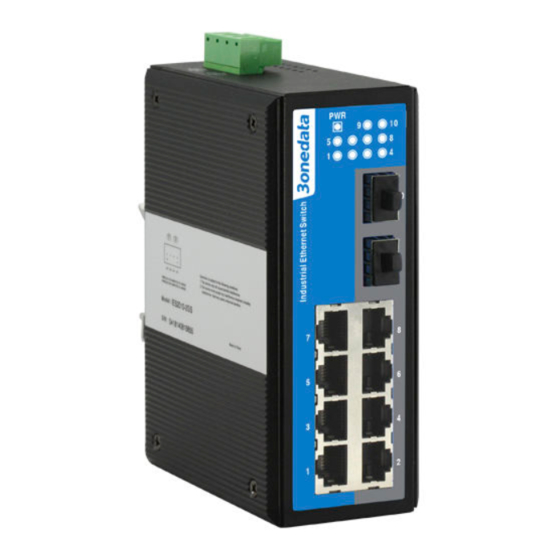

This series are 100M/Gigabit unmanaged DIN-Rail industrial
Ethernet switch. Models as follows:
Model I. IES2010-2GS (2 Gigabit SFP + 8 100M copper
ports)
Model II. IES2010-2GS-4F (2 Gigabit SFP + 4 100M fiber
ports + 4 100M copper ports)
【Panel design】

Rear view, Top view and Bottom view

Front view
Nanshan District,
1. DIN-Rail mounting kit
2. Certification
2. Grounding screw
4. Warranty card
3. Power supply input terminal block
4. Power supply input status indicator PWR
5. Port connection indicator
6. 100Base-FX Ethernet fiber port
7. 1000Base-SFP Ethernet SFP slot
8. 10/100Base-T(X) Ethernet copper port (including
indicator)
9. 10/100Base-T(X) Ethernet copper port
【Mounting Dimension】
Unit: mm
Attention before mounting:
 Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
 Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
Step 1 Check whether the DIN-Rail mounting kit that
comes with the device is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
Tips:
