3onedata IES206 Series Quick Installation Manual

IES206 Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. Din-Rail Mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

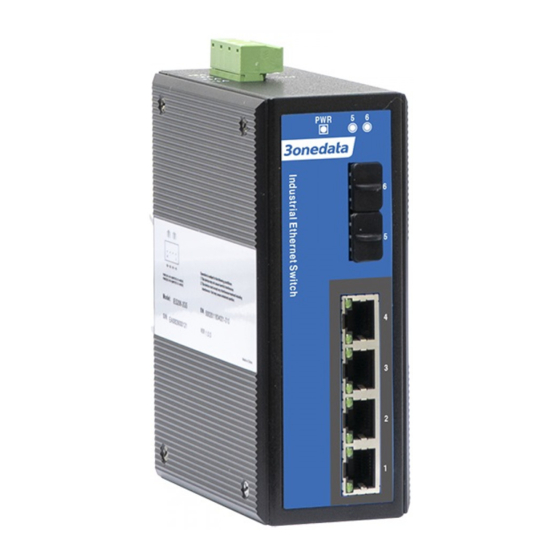

The series products are unmanaged industrial Ethernet switch.
Models as follows:
Model I. IES206-2GF-2P (12~48VDC) (2 Gigabit Fiber Ports
+ 4 100M Copper Ports, 12~48VDC Dual Power
Supply)
Model II. IES206-2GF-P (220VAC) (2 Gigabit Fiber Ports + 4
100M Copper Ports, 100~240VAC)
Model III. IES206-2GS (2 Gigabit SFP Slots + 4 100M
Copper ports, 12~48VDC Dual Power Supply)

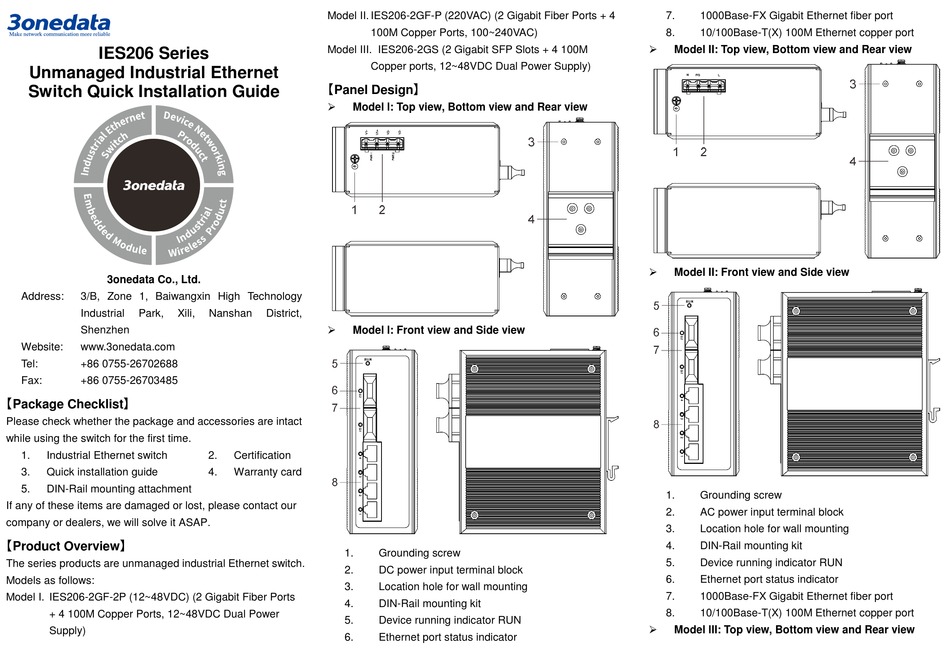

【Panel Design】


Model l: Top view, Bottom view and Rear view
Nanshan District,

Model l: Front view and Side view
2. Certification
4. Warranty card
1. Grounding screw
2. DC power input terminal block
3. Location hole for wall mounting
4. DIN-Rail mounting kit
5. Device running indicator RUN
6. Ethernet port status indicator
7. 1000Base-FX Gigabit Ethernet fiber port
8. 10/100Base-T(X) 100M Ethernet copper port

Model II: Top view, Bottom view and Rear view

Model II: Front view and Side view
1. Grounding screw
2. AC power input terminal block
3. Location hole for wall mounting
4. DIN-Rail mounting kit
5. Device running indicator RUN
6. Ethernet port status indicator
7. 1000Base-FX Gigabit Ethernet fiber port
8. 10/100Base-T(X) 100M Ethernet copper port

Model lII: Top view, Bottom view and Rear view
