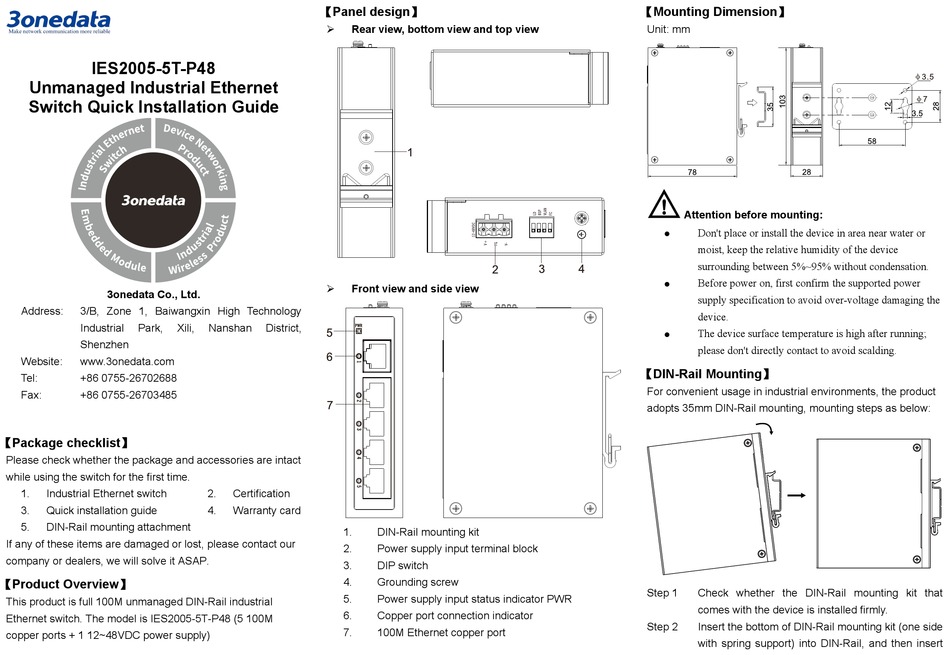

3onedata IES2005-5T-P48 Quick Installation Manual

IES2005-5T-P48
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. DIN-Rail mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

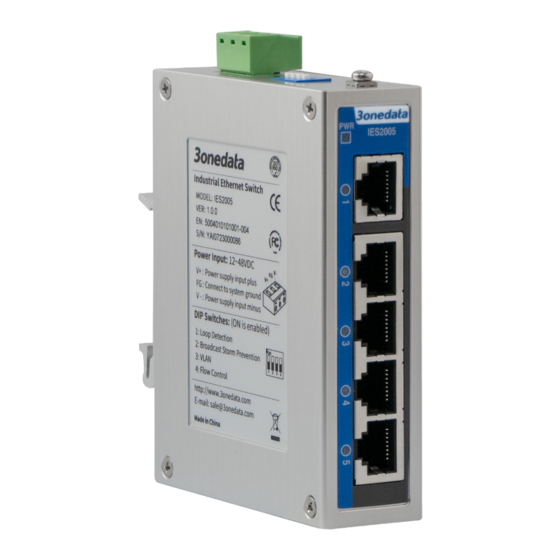

This product is full 100M unmanaged DIN-Rail industrial
Ethernet switch. The model is IES2005-5T-P48 (5 100M
copper ports + 1 12~48VDC power supply)

【Panel design】

Rear view, bottom view and top view

Front view and side view

Nanshan District,
2. Certification
4. Warranty card
1. DIN-Rail mounting kit
2. Power supply input terminal block
3. DIP switch
4. Grounding screw
5. Power supply input status indicator PWR
6. Copper port connection indicator
7. 100M Ethernet copper port

【Mounting Dimension】

Unit: mm
Attention before mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【DIN-Rail Mounting】

For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
Step 1 Check whether the DIN-Rail mounting kit that
comes with the device is installed firmly.
Step 2 Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
