IES2008
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package checklist
Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch 2. Certification
3. DIN-Rail mounting attachment 4. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
Product Overview
This product is full 100M unmanaged DIN-Rail industrial
Ethernet switch. The model is IES2008 (8 100M copper ports
+ 1 12~48VDC/24VAC power supply)
Panel design
Rear view, bottom view and top view
Front view and side view
Nanshan District,
1. DIN-Rail mounting kit
2. Power supply input terminal block
3. DIP switch
4. Grounding screw
5. Power supply input status indicator PWR
6. Copper port connection indicator
7. 100M Ethernet copper port
Mounting Dimension
Unit: mm
Attention before mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power
supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;
please don't directly contact to avoid scalding.

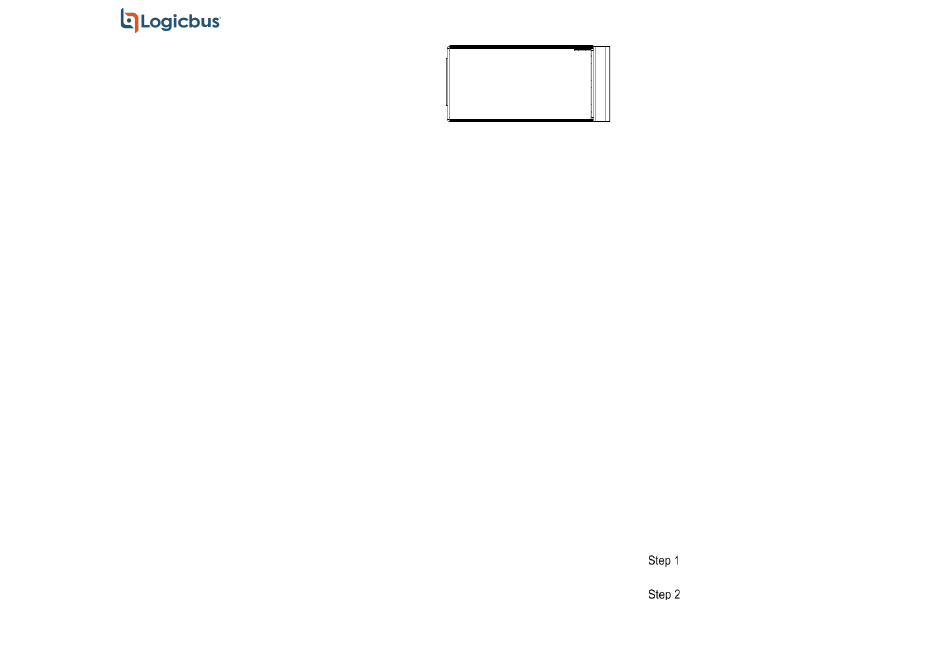

DIN-Rail Mounting
For convenient usage in industrial environments, the product
adopts 35mm DIN-Rail mounting, mounting steps as below:
Check whether the DIN-Rail mounting kit that
comes with the device is installed firmly.
Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert
the top into DIN-Rail.
Tips:
