POC-W213L Quick Start Manual
The POC-W213L SERIES is a multimedia Intel® Core™ i5 and
Celeron processor designed for mobile computer as a
Point-of-Care terminal (POC)

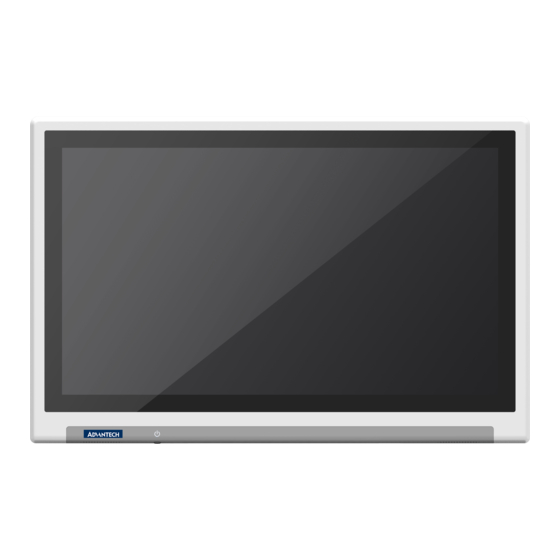

POC-W213L Appearance
Front-view
Rear-view
* Please use VESA compatible mounting only.
Front Bezel Screen
The drawings and specifications in this document are property of Advantech and may not be reproduced, copied or used without prior written permission.
It is recommended to use the above specification screw
model: Screw M4*12L 1/4R/S D=9.4 H=2.5 (2+) ST Ni
Packing List
(1)
POC-W213L x 1
(2)
Accessory box x 1
This quick start manual x 1
FSP (12V 7A) adapter x 1
Tool bag x 1: VESA Mount spare screws x 4
Function Keys
SSD screws x4
(1) Function Keys
Power
(1) Power On/Off
VESA Mounting
\
I/O Exterior Cover
Page 1 of 2
(2) I/O Ports
4
5
6
1
2 3
12 34 5 6
2
2
2
2
2
(1)
DC in 12V @7A
(2)
2 x USB 2.0 ports &2 x USB 3.0 Ports
(3)
Display port
(4)
2 x Gigabit Ethernet (isolated) Interfaces (RJ-45)
(5)
HDMI out port
(6)
2 x RS-232 serial port(optional)
(7)
Equipotential Terminal Pin
and Environment
Mechanical
(1)
Dimensions(W x D x H):
550 x 360mm x 65 mm (21.65" x 14.17" x 2.56")
(2)
Voltage input: DC 12 V @7A
(3)
Temperature:
Operating: 0°C ~ +40°C, Storage: -20°C ~ + 60°C
6.9kg(15.2lb)
(4)
Weight:
(3) Easy Setup
Power On Computer:
1)
Make sure Equipotential Terminal is connected to
equipotential ground in the hospital.
2)
Connect the adapter to Power DC-IN. Please note that using
different adaptors may put the system into risk.
3)
Press Power On/ Off. The button will turn green.
7
2
