Advantech iHealthcare POC-W243L Quick Start Manual

POC-W243L Quick Start Manual
The POC-W243L SERIES is a multimedia Intel® Core™ i5 and
Celeron processor designed for mobile computer as a
Point-of-Care terminal (POC)

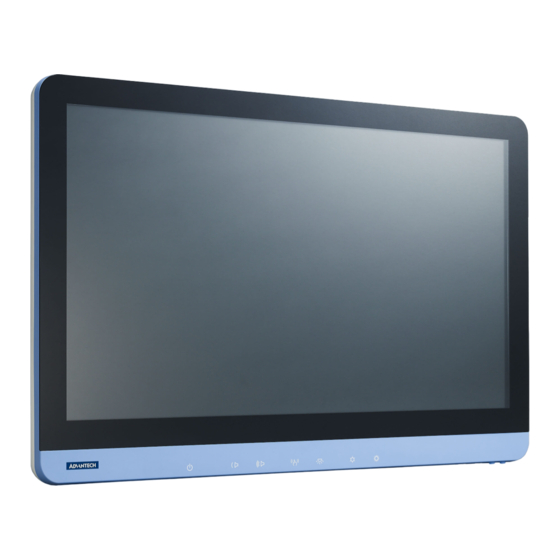

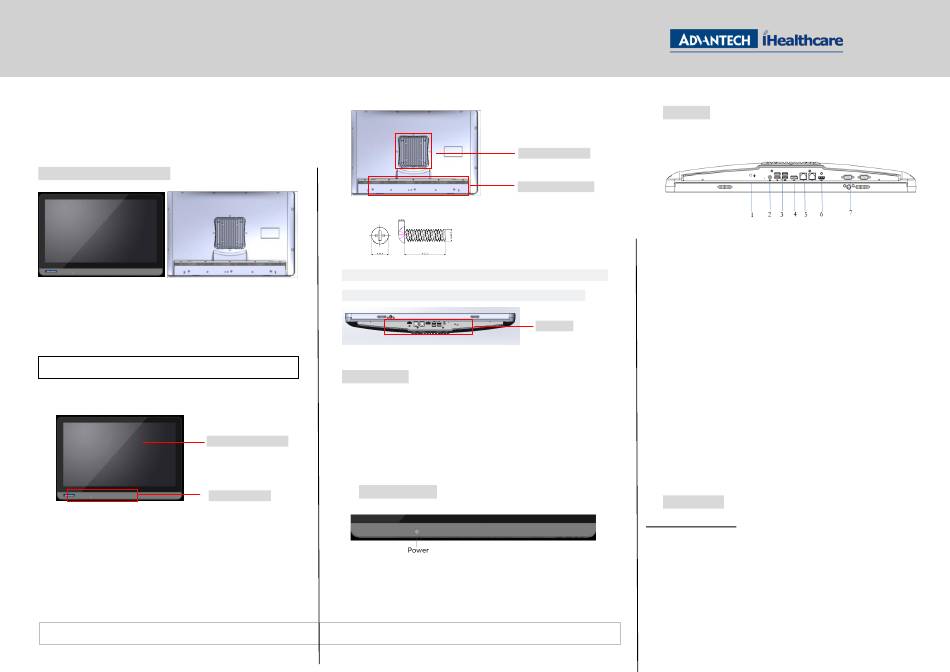

POC-W243L Appearance
Front-view
* Please use VESA compatible mounting only.
Front Bezel Screen
Function Keys
The drawings and specifications in this document are property of Advantech and may not be reproduced, copied or used without prior written permission.
It is recommended to use the above specification screw
model: Screw M4*12L 1/4R/S D=9.4 H=2.5 (2+) ST Ni
Rear-view
Packing List
(1) POC-W243L x1
(2) Accessory box




(1) Function Keys
(1) Power On/Off
VESA Mounting
I/O Exterior Cover
I/O Ports
This quick start manual x 1
FSP (12V 7A) adapter x 1
Tool bag: VESA Moun spare screws x4
SSD screws x4,
Page 1 of 2
(2) I/O Ports
(1) Equipotential Terminal Pin
(2) DC in 12V @7A
(3) 2 x USB 2.0 ports &USB 3.0 Ports
(4) Display port
(5) 2 x Gigabit Ethernet (isolated) Interfaces (RJ-45)
(6) HDMI out Port
(7) 2 x RS-232 serial port（Optional）
Mechanical and Environment
(1) Dimensions(W x D x H):
583 x 386 x 69 mm (22.95" x 15.19" x 2.71")
(2) Voltage input: DC 12 V @7A
(3) Temperature:
Operating: 0°C ~ +40°C, Storage: -20°C ~ + 60°C
(4) Weight: 7.95 kg (17.52lb)
(3) Easy Setup
Power On Computer:
1) Make sure Equipotential Terminal is connected to
equipotential ground in the hospital.
2) Connect the adapter to Power DC-IN. Please note that using
different adaptors may put the system into risk.
3) Press Power On/ Off. The button will turn green.
