D. Using the 4" x 5" Film Template
To scan 4" x 5" film, use the 4" x 5" Film Template, which can hold up to 2 pieces of
4" x 5" film at a time.

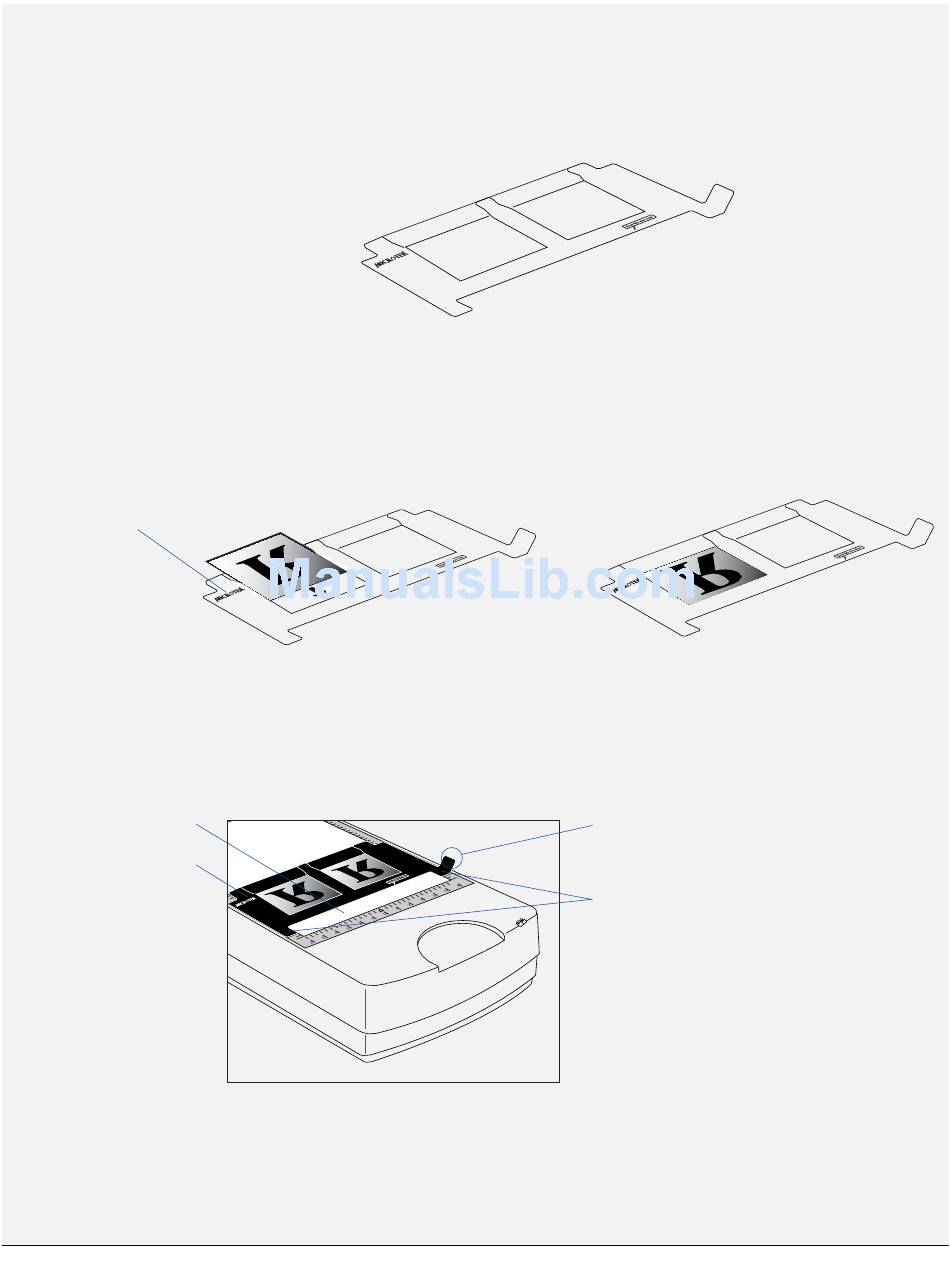

1. Place the 4" x 5" film to be scanned inside the frame of the 4" x 5" Template. The
Orient template with
"Microtek" logo facing up
2. Place the 4" x 5" Film Template containing the loaded film on the scanner glass
Calibration strip
Microtek logo
shiny base of the 4" x 5" film should be facing down, and the emulsion side of the
film should be facing up.
surface. Make sure to orient the template with the "Microtek" logo facing up.
The Grabber is used to remove the
template out of the scanner glass
surface.
Important: Align the template's
front corners firmly against the top
corners (left and right) of the
U-shaped ruler located at the front
of the scanner. During placement of
the template, make sure that the
calibration strip on the scanner
glass surface is kept clear and free
of obstruction at all times.
