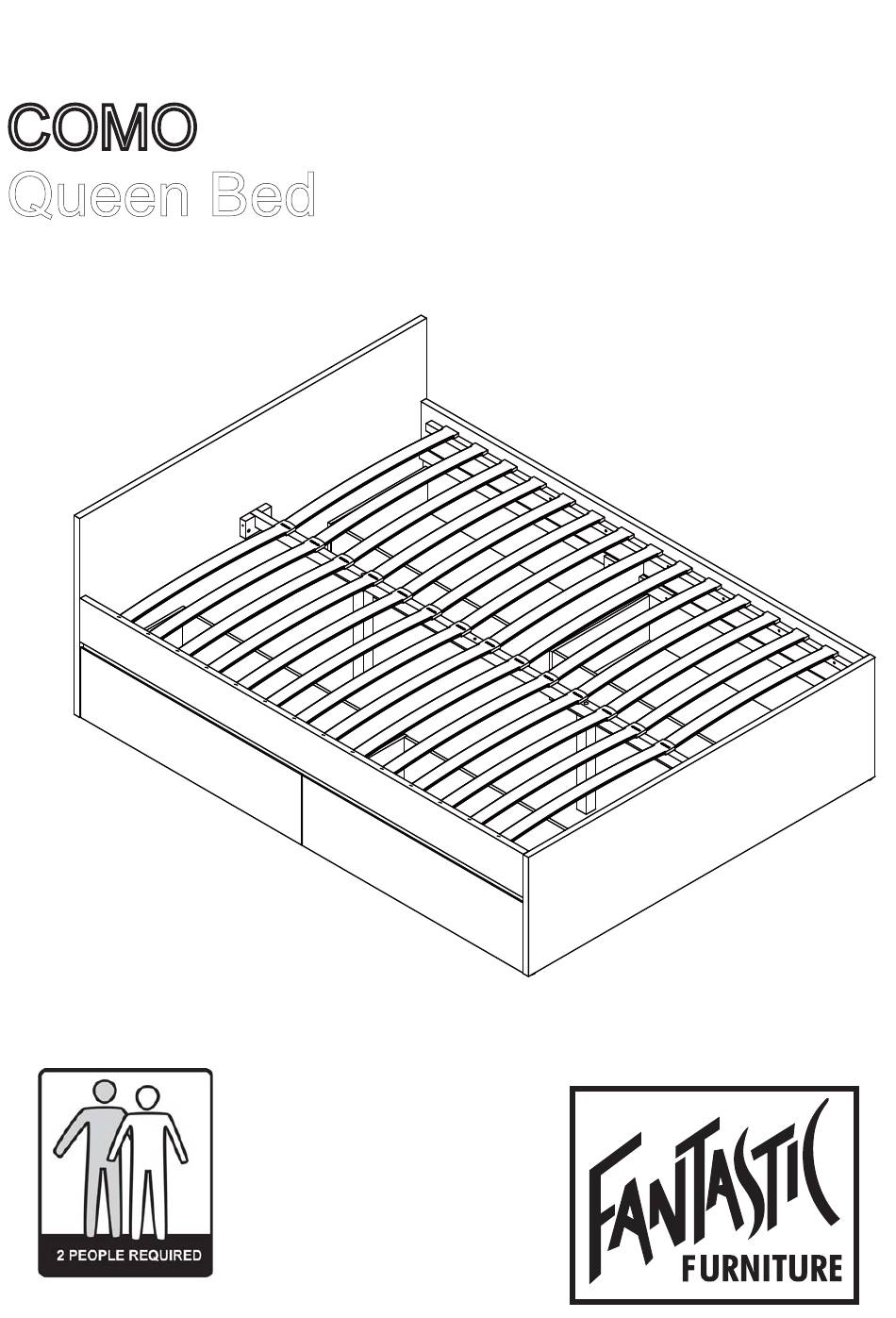

- Page 1 Assembly Instructions COMO Queen Bed VER 1.2...
- Page 2 WARNING WA RN NG FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
- Page 3 2 x Drawer Supports (P14) Drawer Left Drawer Front (P8) Side (P9) 28 x End Connectors 28 x Fantastic Furniture 14 x Centre Connectors ComfortSlats Queen 20 x Small 46 x Small 20 x Small 24 x Screws 7 x Long...
- Page 4 Step 1 You will need: 2 x Cam Bolts (H3) (P2) 16 x Screws (H5) (P3) 4 x Elbow Connectors (H11) Attach 1 x Cam Bolt (H3) to Side Rail (P3). Attach 2 x Elbow Connectors (H11) to Side Rail (P3) with 8 x Screws (H5). Repeat Step 1 again with the other Side Rail (P3).
- Page 5 Make sure the bottom of the “U” shape is Step 3 facing to the bottom rough side of Bedfoot (P2). You will need: 8 x Screws (H6) 2 x Long Screws (H7) (P2) 2 x Flat (P15) Connetors (H12) 3 x Plastic Glides (H13) Attach 2 x Flat Connectors (H12) to Bedfoot (P2) with 8 x Screws (H6).
- Page 6 Step 5 You will need: MAKE SURE 2 x Long Screws TWO ENDS ALIGN (H7) 3 x Plastic Glides (H13) (P4) (P7) (P4) Attach Rails (P4) to Clapboard (P7) with 2 x Long Screws (H7). Then hammer 3 x Plastic Glides (H13) on the bottom of Clapboard (P7). Step 6 You will need: 4 x Small...
- Page 7 Step 7 2 PEOPLE CAREFULLY You will need: TURN OVER THE BED FRAME 4 x Small Dowels (P1) (H2) Bolts (H10) 1 x Allen Key (Large) (H17) (P3) (P3) Insert 4 x Small Dowels (H2) into the holes of Bedhead (P1). Attach Side Rails (P3) to Bedhead (P1) with 6 x Bolts (H10) using Allen Key (H17).
- Page 8 Step 9 You will need: 2 x Plastic (P6) Glides (H13) (P6) (P5) Attach 2 x Support Legs (P6) to Central Rail (P5), until it is firmly attached. Then hammer 2 x Plastic Glides (H13) on Support Legs (P6). Step 10 You will need: 1 x Long Screws (H7)
- Page 9 Step 11 You will need: 5 x Small Dowels (H2) 5 x Small Cam (P8) Bolts (H8) Insert 5 x Small Dowels (H2) into Drawer Front (P8), and attach 5 x Small Cam Bolts (H8) to it. Step 12 You will need: 8 x Small Screws (H14)
- Page 10 Step 14 You will need: 4 x Small Dowels (H2) (P9) (P11) (P10) Slide Drawer Base (P11) into the groove in the middle of Drawer Sides (P9,P10). Insert 4 x Small Dowels (H2) into 2 x Drawer Supports (P14). Step 15 You will need: (P10) 6 x Screws...
- Page 11 Queen 14 x Centre Connectors Push 2 End Connectors, 2 Fantastic Furniture ComfortSlats Queen and a Centre Connector together. Insert the full slat into the side rail and centre rail one by one. Sometimes it makes it easier to line up the hole if you press down in the middle of the slat to flatten it out.
- Page 12 Step 18 Put the drawers into the bed. The job is now complete! In the interest of our environment Please dispose of all packaging thoughtfully. Page 12...
