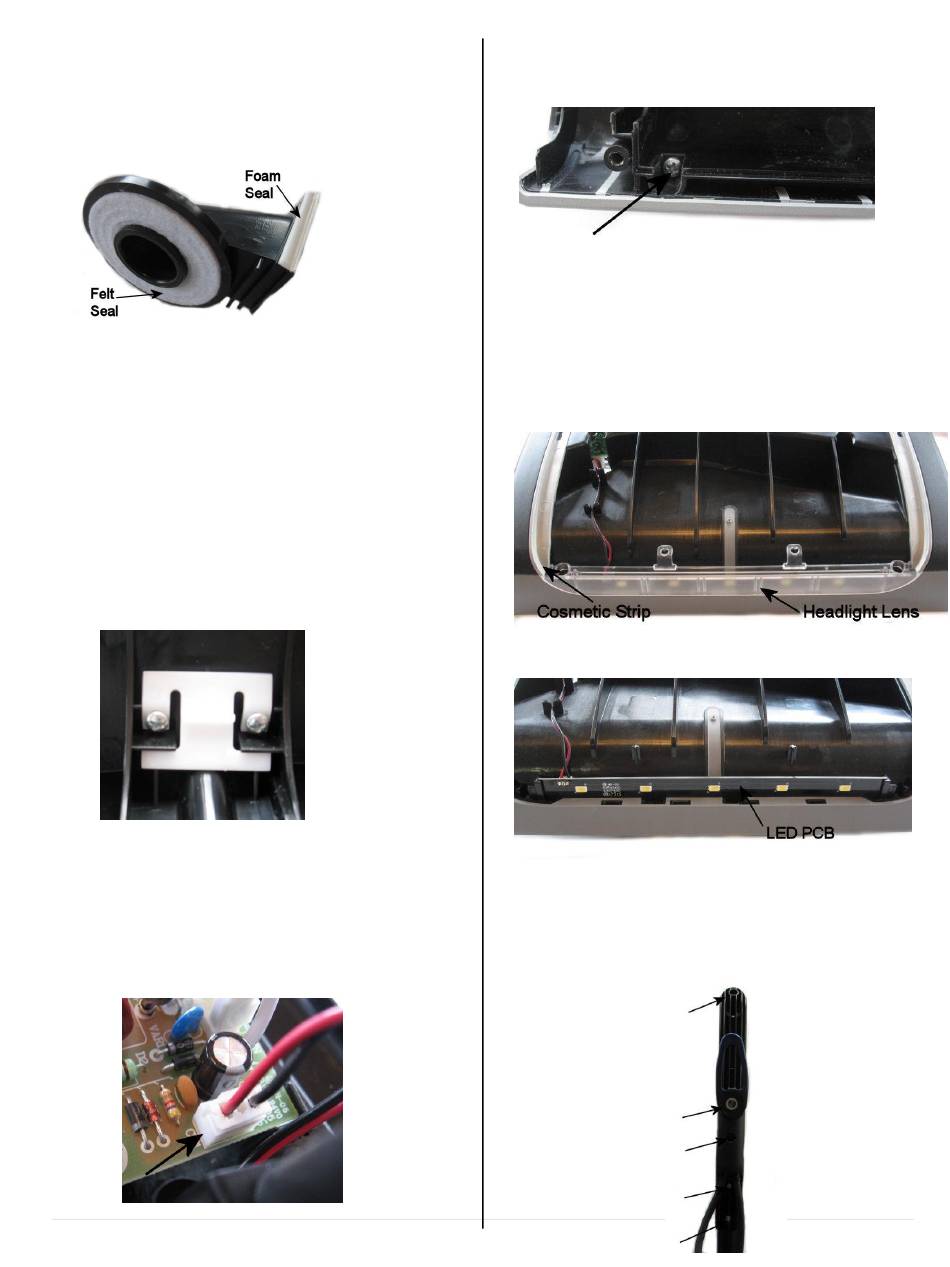

Intake Pivot Assembly
a. Intake pivot assembly stocked with felt
inlet seal. Both seals are available separately.
5. Handle Detent
Located under the Motor / Fan Chamber
Assembly.
a. Remove base assembly – section 1.
b. Remove motor / fan chamber assembly.
c. Remove handle detent – 2 screws.
6. LED PCB
a. Remove base assembly – section 1.
b. Disconnect LED PCB connection at main
PCB.
6 |
P a g e
c. Remove two screws located in brushroll
cavity – one in each front corner.
d. Turn unit over and lift upward on fascia to
remove.
e. Remove headlight lens – lift up slightly on
cosmetic strip to allow clearance and remove
headlight lens.
f. Remove LED PCB.
7. Power PCB
a. Remove five screws shown in upper handle
– one holding the cord clip.
