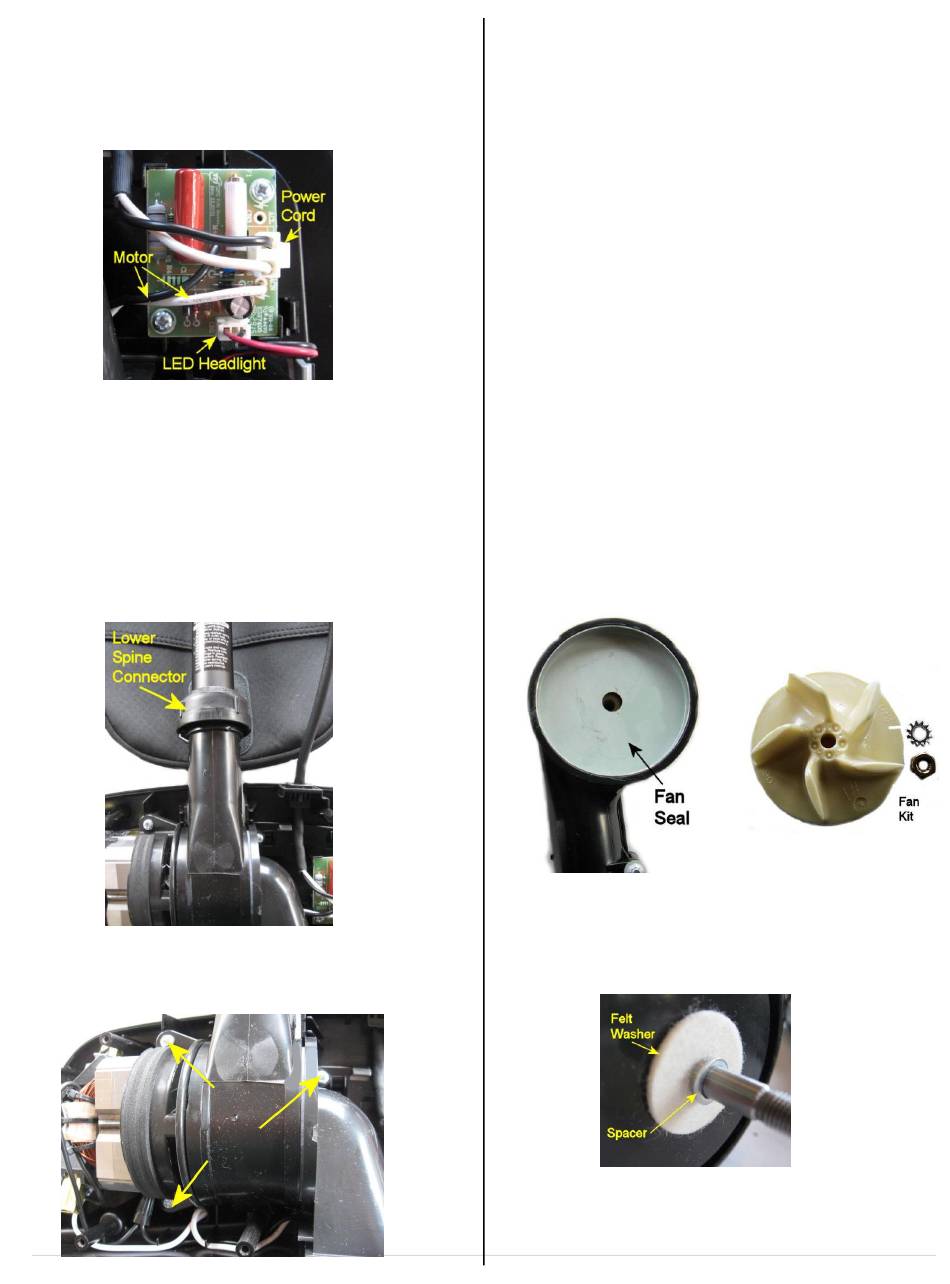

3. Motor PCB
a. Motor PCB is held in position by two
screws. Terminals connections are noted.
4. Motor Assembly / Intake Pivot Assembly /
Fan Housing
a. Remove base assembly – section 1.
b. Separate lower handle from fan housing
assembly – Rotate lower spine connector
CCW to remove.
c. Remove three screws that secure motor
and intake pivot assembly.
5 |
P a g e
d. Lift motor / fan housing assembly out of
position.
e. Disconnect motor lead wires – 2 wire
connectors.
f. To separate motor and fan chamber
assembly locate and remove fan nut by
securing the armature shaft and turning the
nut clockwise – LH Thread.
g. Slide fan housing off of motor.
NOTE: Fan housing removal tool (part number
75377-01) and the upright collar tool (part
number COLLARTOOL) are available to order
– however these tools are not required to
complete the disassembly.
h. Remove fan by removing fan seal – press
fit.
Note – felt seal and spacer must be in
position on motor at reassembly.
