12. Electrical troubleshooting
A. Motor will not run when switch is in the on position.

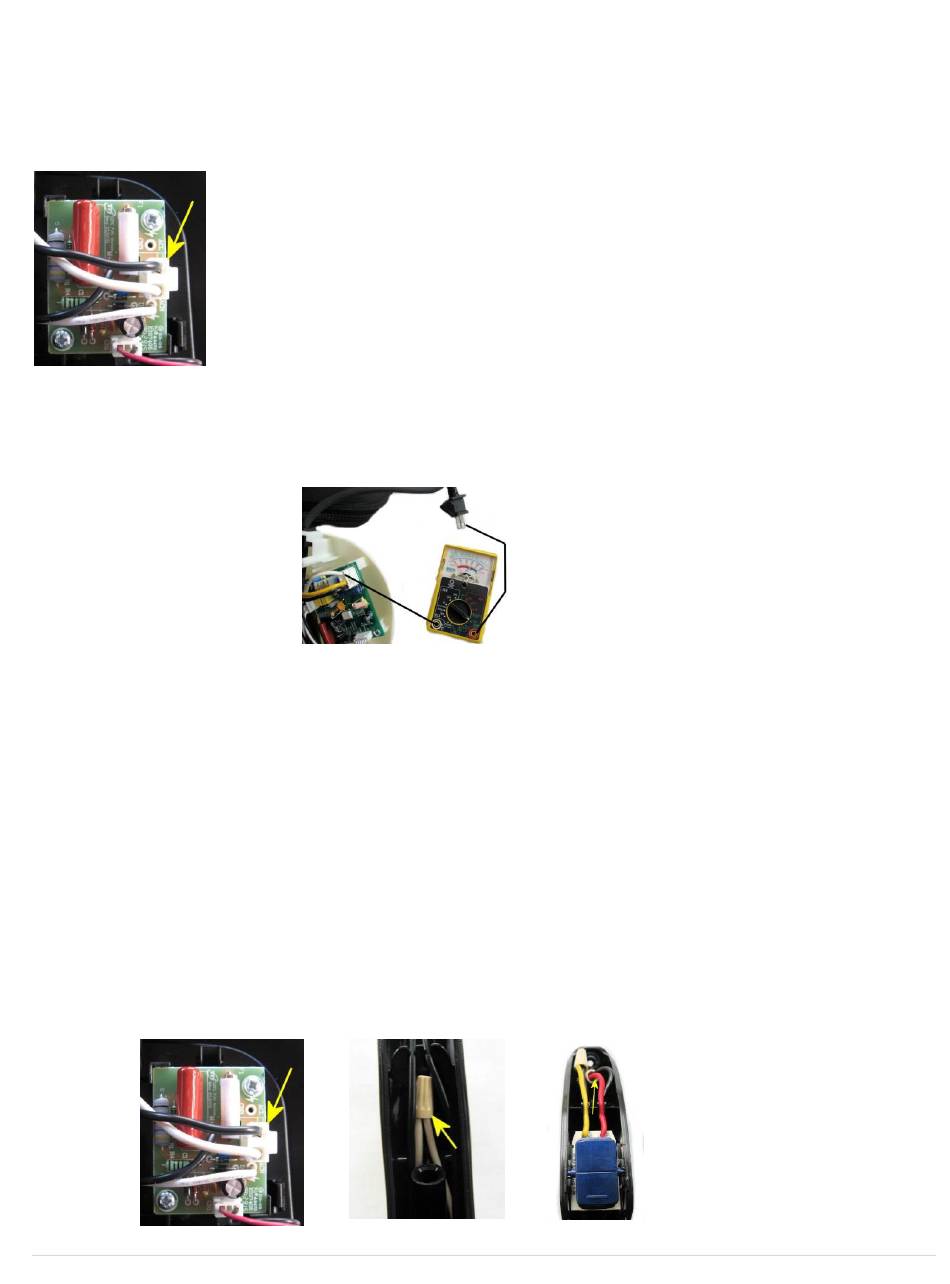

1. Disconnect the power cord connector from the circuit board.
2. Check for continuity between the wide blade of the attachment cord and the white connection
terminal on the circuit board. This will show continuity regardless of the switch position.
3. Check for continuity between the narrow blade on the attachment cord and the black
connection terminal on the circuit board. This will show continuity when the switch is in the on
position and no continuity when the switch is in the off position.
If continuity exists, go to step 4.
If 1 or 2 above show no continuity it indicates a failure of the power cord, the power line cord, or
power PCB.
a. Check power line cord by checking for continuity between the white connection terminal on the
circuit board and the white lead at the terminal connection in the handle. Check for continuity
between the black connection terminal and the black lead wire that connects to the red lead from
the switch. If continuity exists go to step 4. If not, replace the power line cord.
